Can the Vetter FR-40-80-500-10 fit in tight spaces?

The FR-40-80-500-10 has a compact 40 mm frame height and 80 mm overall width that fits into restricted spaces where larger conveyors cannot. The internal drive mechanism eliminates external protrusions, further maximizing workstation efficiency.

What speed control does the FR-40-80-500-10 offer?

The conveyor uses analog 0-10 V speed control that allows continuously adjustable belt speed from 0.5 to 10 m/min, with optional 110 percent speed boost capability. This enables integration with automation systems that require variable transport rates.

How much load can the Vetter FR-40-80-500-10 handle?

The FR-40-80-500-10 is rated to handle payloads up to 50 N or 100 N depending on configuration. The adjustable center distance of 350-1600 mm accommodates different load distribution needs.

What voltage does the FR-40-80-500-10 require?

The FR-40-80-500-10 operates on 24 V DC power with an internal integrated drive motor. This voltage is standard in most industrial automation systems.

What applications is the FR-40-80-500-10 suitable for?

The FR-40-80-500-10 is designed for assembly automation, vision system staging, small parts handling, laboratory instrumentation, and food or pharmaceutical processing where compact footprint and precise transport are required. Stainless-steel glide plates ensure durability and accurate belt tracking for these environments.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCompact Design

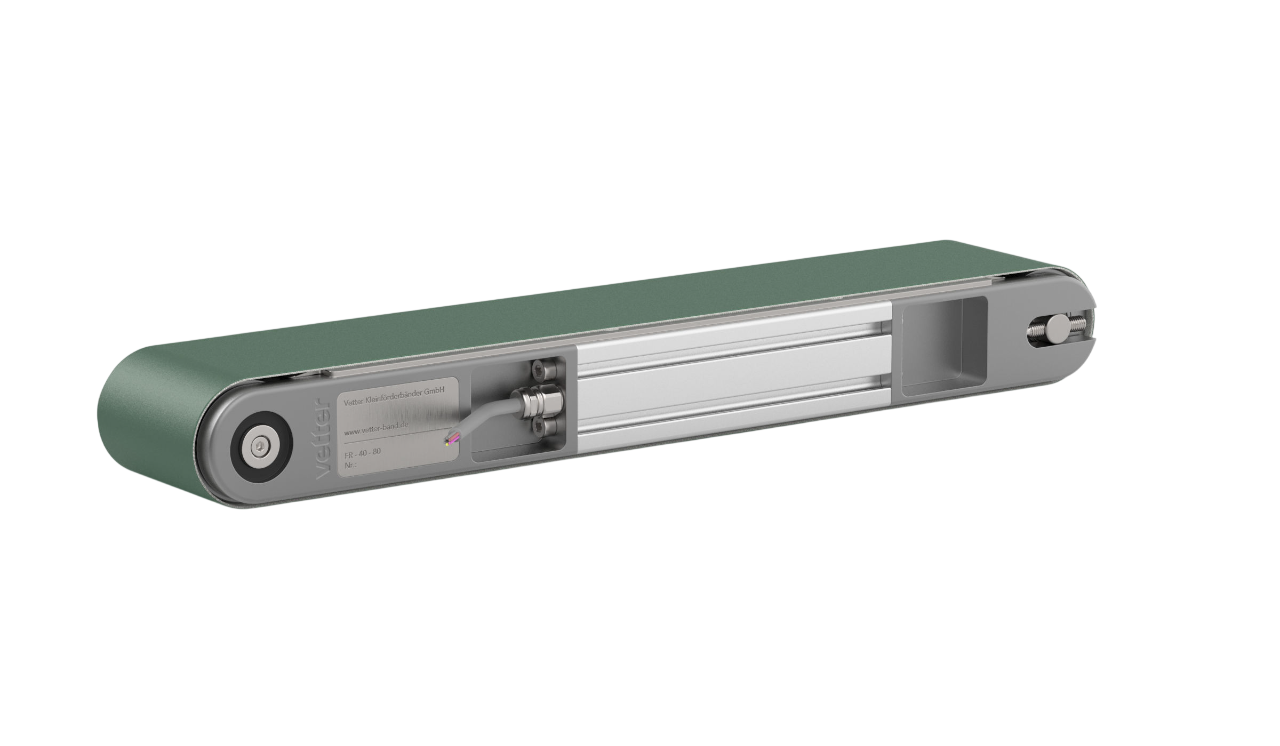

Vetter FR-40-80-500-10 Small Conveyor Belt, 24 V DC, Internal Drive

Name: Vetter FR-40-80-500-10 Small Conveyor Belt, 24 V DC, Internal Drive
Brand: Vetter
SKU: 3651
Price: 2195 USD
Availability: InStock

Vetter Kleinförderbänder

$2,195.00

Vetter FR-40-80-500-10 compact conveyor belt with internal 24 V DC drive, 40 mm frame height, 80 mm width, and continuous speed control (0.5 to 10 m/min) for precision material handling in space-constrained automation and processing applications.

Overview of the Vetter FR-40-80-500-10 Small Conveyor Belt:

Vetter FR-40-80-500-10 is a compact small conveyor belt system for precision transport in automation, laboratory, and micro-part handling environments where space efficiency and controllable movement are essential.

Key Features and Specifications:

Frame height: 40 mm for minimal profile integration
Overall width: 80 mm, with a 65 mm belt width
Payload: up to 50 N or 100 N depending on configuration
Motor: 24 V DC internal drive eliminates external protrusions
Belt speed: between 0.5 and 10 meters per minute

Design and Integration:

The internal drive mechanism and slim aluminum profiles of the FR-40-80-500-10 enable mounting in restricted spaces, supporting center distances from 350 mm to 1600 mm. Stainless-steel glide plates ensure durability and accurate belt tracking for mini conveyor belt applications. The unit integrates with automation systems through a continuously adjustable speed controller using a 0 to 10 V analog input signal, with stop function and optional speed boost to 110 percent.

Application Suitability:

Ideal for assembly automation, vision system staging, small parts handling, laboratory instrumentation, and food or pharmaceutical processing, the motorized conveyor belt is designed for operations requiring a compact footprint and reliable, precise transport. The Vetter FR-40-80-500-10 mini conveyor belt supports integration with Vetter conveyor systems and facilitates streamlined setup in material handling projects.

How the FR-40-80-500-10 Stands Out:

Internal conveyor belt motor for easier installation and reduced space requirements compared to externally-driven alternatives
Flexible speed control via analog input, unlike fixed-speed units
Compact design suitable for replacing larger conveyors and maximizing workstation efficiency

For related options see Material Handling Conveyors and Material Handling Systems.

Weight0.3 kg

Jaw Width80 mm

Model: Vetter FR-40-80-500-10
Payload: 50 N or 100 N
Belt Speed: 0.5 to 10 meters per minute
Frame Height: 40 mm
Overall Width: 80 mm
Belt Width: 65 mm
Center Distance: 350 to 1600 mm
Power Supply: 24 V DC
Material: Stainless steel glide plates
Anodized aluminum profiles
Speed Control: 0 to 10 V analog input
Speed Control Features: Stop function, 110% boost

Compact 40 mm height fits tight spaces, 65 mm belt width
Adjustable center distance 350-1600 mm handles loads to 50 N or 100 N
Stainless-steel glide plates and anodized aluminum ensure durability and tracking
24 V DC internal drive integrates seamlessly into automation systems
Analog 0-10 V speed control from 0.5-10 m/min, plus optional 110% boost
Internal motor eliminates external protrusions, maximizes workstation efficiency
Precision transport for assembly, vision staging, laboratory and food processing

: The FR-40-80-500-10 has a compact 40 mm frame height and 80 mm overall width that fits into restricted spaces where larger conveyors cannot. The internal drive mechanism eliminates external protrusions, further maximizing workstation efficiency.
: The conveyor uses analog 0-10 V speed control that allows continuously adjustable belt speed from 0.5 to 10 m/min, with optional 110 percent speed boost capability. This enables integration with automation systems that require variable transport rates.
: The FR-40-80-500-10 is rated to handle payloads up to 50 N or 100 N depending on configuration. The adjustable center distance of 350-1600 mm accommodates different load distribution needs.
: The FR-40-80-500-10 operates on 24 V DC power with an internal integrated drive motor. This voltage is standard in most industrial automation systems.
: The FR-40-80-500-10 is designed for assembly automation, vision system staging, small parts handling, laboratory instrumentation, and food or pharmaceutical processing where compact footprint and precise transport are required. Stainless-steel glide plates ensure durability and accurate belt tracking for these environments.

Compact internal-drive conveyor versus standard tabletop or externally-driven systems:

The FR-40-80-500-10 is built for tight workstations where a 40 mm frame height and integrated 24 V DC motor eliminate the footprint and installation complexity of larger conveyors or external motor mounts. Choose this when space and precise speed control matter more than very high payloads.

For confined assembly or vision-staging cells under 1600 mm, the slim profile and adjustable center distance fit without sacrificing payload up to 100 N.
On delicate parts or laboratory samples requiring smooth, variable transport, analog 0-10 V speed control from 0.5 to 10 m/min beats fixed-speed alternatives.
In food or pharmaceutical processing, stainless-steel glide plates and anodized aluminum resist corrosion and tracking drift in hygienic environments.
Internal motor design eliminates external protrusions, freeing adjacent workstation space for tooling or personnel safety zones.
