What can the SPB4-30 vacuum gripper kit hold?

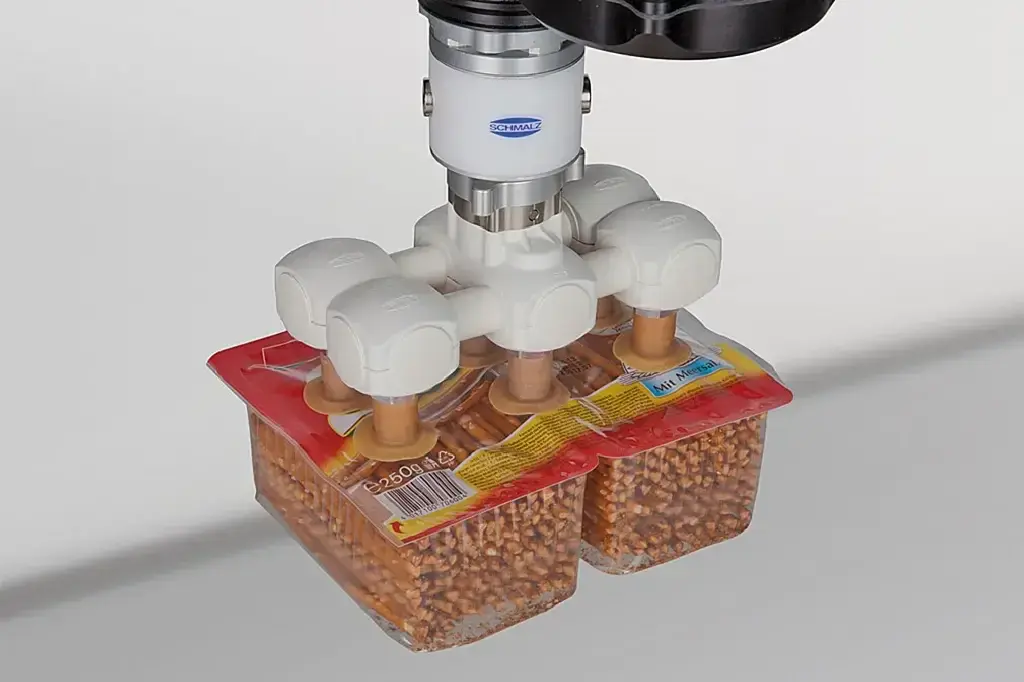

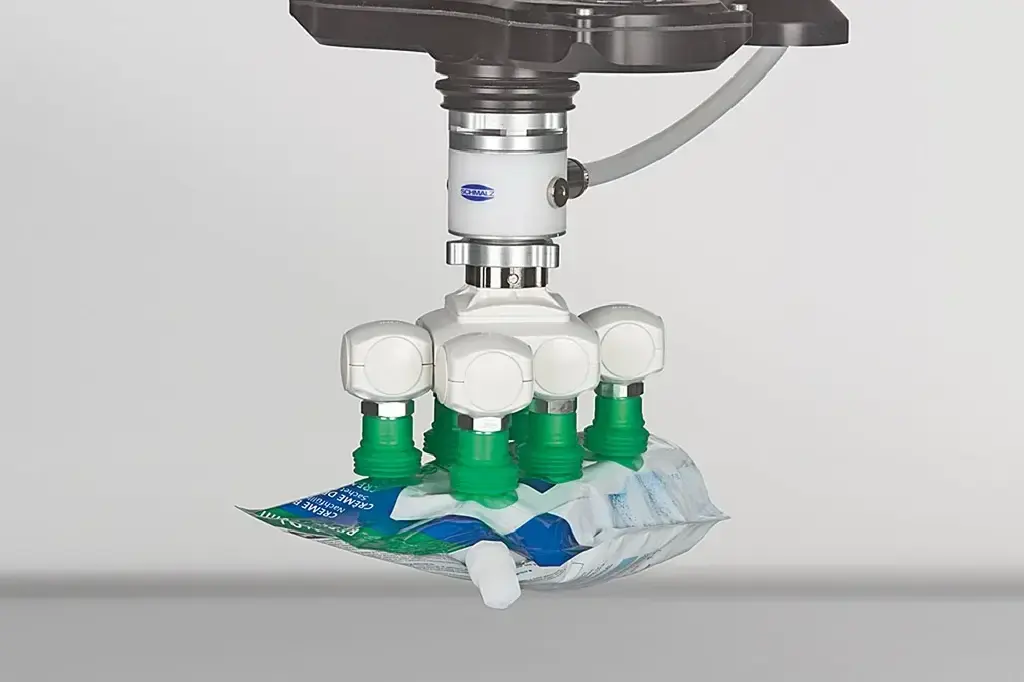

The SPB4-30 kit grips bags and flexible packaging with a maximum payload capacity of 2 kg. The kit includes 8 SPB4-30 vacuum suction pads and components to build up to two complete gripper systems.

How does the Schmalz VEE vacuum gripper work?

The gripper achieves a vacuum level of up to -980 mbar to hold flexible materials like bags and packaging. The kit includes 120 components with suction pads, a lockable bayonet quick-change adapter, and assembly instructions to build functioning gripper systems for robotic arms.

What temperature range does this vacuum gripper operate in?

The SPB4-30 operates reliably between -25°C and +80°C. This temperature range makes it suitable for both cold storage and warm production environments.

How do I swap the end effector with the SPB4-30?

The kit includes a lockable bayonet quick-change adapter that speeds up end effector swaps without tools. Simply align and twist the bayonet mount to attach or detach the gripper from your robot.

What comes in the Schmalz VEE Vacuum Gripper Kit?

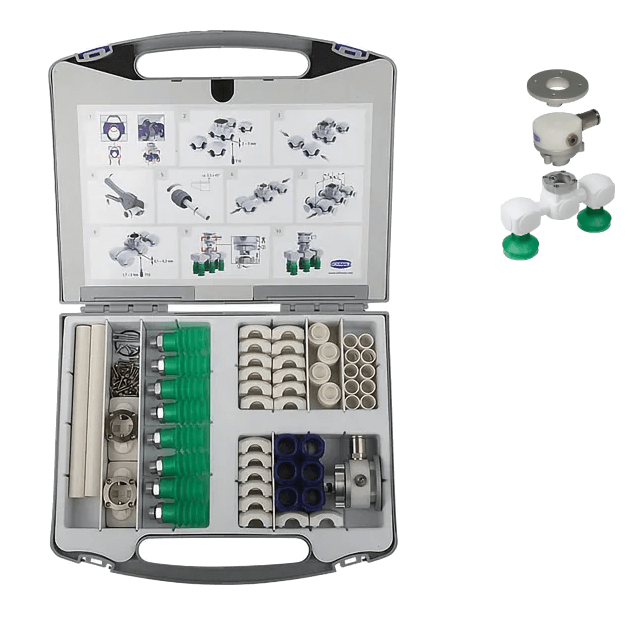

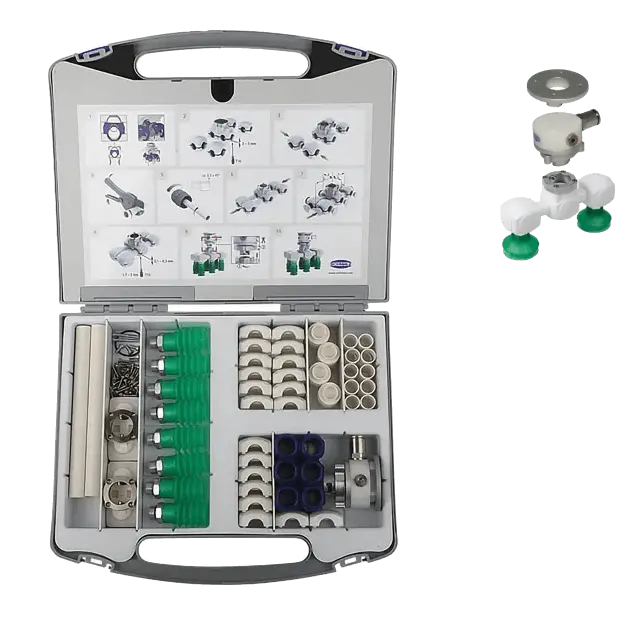

The 120-piece kit includes 8 SPB4-30 vacuum suction pads, a lockable bayonet quick-change adapter, detailed assembly instructions, and a durable plastic case. You can assemble up to two complete vacuum gripper systems from these components.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock120-Piece Kit

Schmalz VEE Vacuum Gripper Kit, SPB4-30, 120-piece

Name: Schmalz VEE Vacuum Gripper Kit, SPB4-30, 120-piece
Brand: Schmalz
SKU: 3026
Price: 1795 USD
Availability: InStock

Schmalz

$1,795.00

120-piece kit to assemble up to two VEE vacuum end effectors with 8 SPB4-30 suction pads, lockable bayonet quick-change adapter, 2 kg payload, -980 mbar vacuum, and -25 to +80 °C operating range.

The Schmalz VEE Vacuum Gripper Kit, SPB4-30, is a 120-piece kit for creating up to two vacuum gripper systems, ideal for robotic automation and flexible packaging handling.

Kit Contents:

120 components including 8 SPB4-30 vacuum suction pads for handling bags and flexible packaging
Lockable quick-change adapter with bayonet mount
Assembly instructions and durable plastic case

Key Specifications:

Maximum payload: 2 kg
Vacuum level: up to -980 mbar
Maximum flow: 60
Operating temperature: -25°C to +80°C
Weight: 0.065 kg

Compatibility and Integration:

Schmalz, recognized for vacuum automation expertise, engineered the VEE Vacuum Gripper Kit, SPB4-30, to integrate easily with most robotic systems, making it suitable for both industrial and prototyping applications.

Competitive Advantages:

Quick-change adapter ensures efficient tool changes
Handles challenging bagged and flexible packaging tasks where precision is needed

Weight0.065 kg

Max Payload2 kg

Max Vacuum value: -980 mbar
Overpressure resistance: 3 bar
Max Rated flow: 60
Temperature range: -25 °C to +80 °C
Model: SPB4-30
Payload: 2 kg
Vacuum Level: -980 mbar
Maximum Flow Rate: 60 l/min
Overpressure Rating: 3 bar

Complete kit ships in durable plastic case with detailed assembly instructions
Build two vacuum gripper systems from 120 components including 8 SPB4-30 pads
Grips bags and flexible packaging with up to 2 kg payload capacity
Lockable bayonet quick-change adapter speeds end effector swaps
Achieves -980 mbar vacuum level, 60 maximum flow rate
Operates reliably from -25°C to +80°C temperature range

: The SPB4-30 kit grips bags and flexible packaging with a maximum payload capacity of 2 kg. The kit includes 8 SPB4-30 vacuum suction pads and components to build up to two complete gripper systems.
: The gripper achieves a vacuum level of up to -980 mbar to hold flexible materials like bags and packaging. The kit includes 120 components with suction pads, a lockable bayonet quick-change adapter, and assembly instructions to build functioning gripper systems for robotic arms.
: The SPB4-30 operates reliably between -25°C and +80°C. This temperature range makes it suitable for both cold storage and warm production environments.
: The kit includes a lockable bayonet quick-change adapter that speeds up end effector swaps without tools. Simply align and twist the bayonet mount to attach or detach the gripper from your robot.
: The 120-piece kit includes 8 SPB4-30 vacuum suction pads, a lockable bayonet quick-change adapter, detailed assembly instructions, and a durable plastic case. You can assemble up to two complete vacuum gripper systems from these components.

Vacuum grippers versus mechanical grippers:

Choose vacuum grippers when handling bags, films, and flexible packaging that mechanical fingers might damage or crease. The Schmalz VEE kit builds two complete systems from 120 components, each rated to 2 kg payload and achieving -980 mbar vacuum. The bayonet quick-change adapter speeds tool swaps on shared robot cells.

For lightweight bags and flexible films up to 2 kg, vacuum pads grip without creasing or puncturing the material.
On cells requiring frequent end effector changes, the lockable bayonet adapter reduces swap time compared to manual tool changes.
In cold storage or outdoor environments from -25°C to +80°C, the sealed vacuum system operates reliably where pneumatic grippers may struggle.
For prototyping or small-batch flexible packaging lines, the kit's 120-piece modular design lets you build two independent gripper systems without purchasing multiple products.
