What is the payload capacity of the UR7e collaborative robot?

The UR7e lifts a maximum payload of 7.5 kg across its 850 mm reach. This makes it suitable for assembly, material handling, and precision tasks in manufacturing environments.

Can the UR7e work safely around people?

The UR7e includes 17 configurable safety functions certified to PLd Category 3, enabling safe collaborative work alongside human operators. It is IP54 rated for typical industrial environments and designed as a collaborative robot for shared workspaces.

How do I program the Universal Robots UR7e?

Programming uses Polyscope 5 or X software on a 12-inch touchscreen teach pendant with intuitive, visual programming. The robot also integrates with Modbus TCP, PROFINET, Ethernet/IP, ROS/ROS2 protocols for industrial automation networks.

What is the repeatability of the UR7e collaborative robot?

The UR7e achieves 0.03 mm repeatability, enabling precise motion in confined spaces for assembly and inspection tasks. This high precision combined with six axes of motion supports versatile manufacturing applications.

How much does the UR7e weigh and what is its footprint?

The UR7e weighs only 20.6 kg with a compact circular footprint of 151 mm diameter, making it easy to integrate into space-constrained production lines and simple to redeploy as production needs change.

What tools can I connect to the UR7e?

Tools connect via the RS interface with 12 V and 24 V power supply options, plus USB 2.0/3.0 ports, Mini DisplayPort, and multiple digital and analog inputs/outputs for flexible end-effector integration.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock25 kg Payload

Universal Robots UR7e Collaborative Robot, 7.5 kg, 850 mm

Name: Universal Robots UR7e Collaborative Robot, 7.5 kg, 850 mm
Brand: Universal Robots
SKU: 3507
Price: 48900 USD
Availability: InStock

Universal Robots

$48,900.00

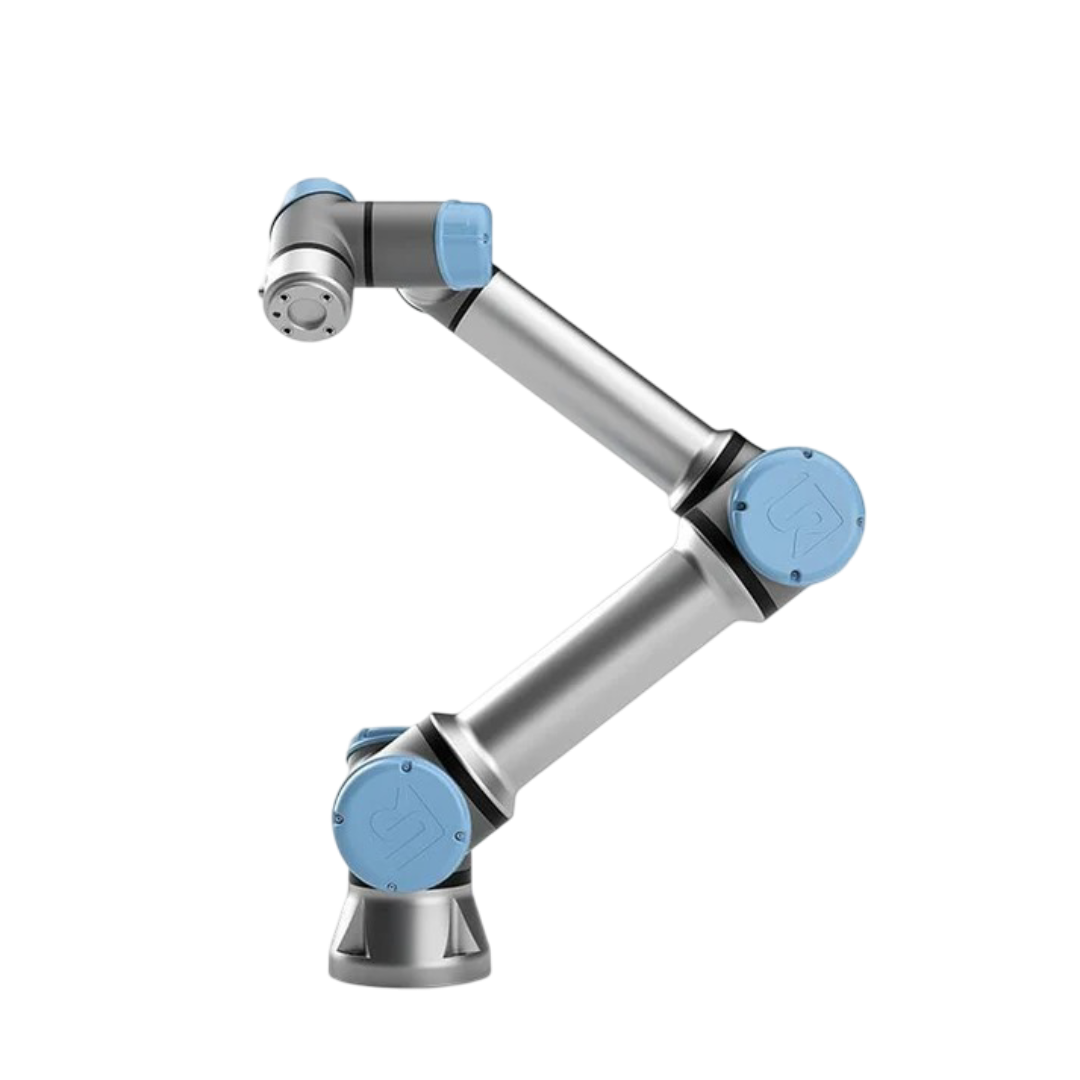

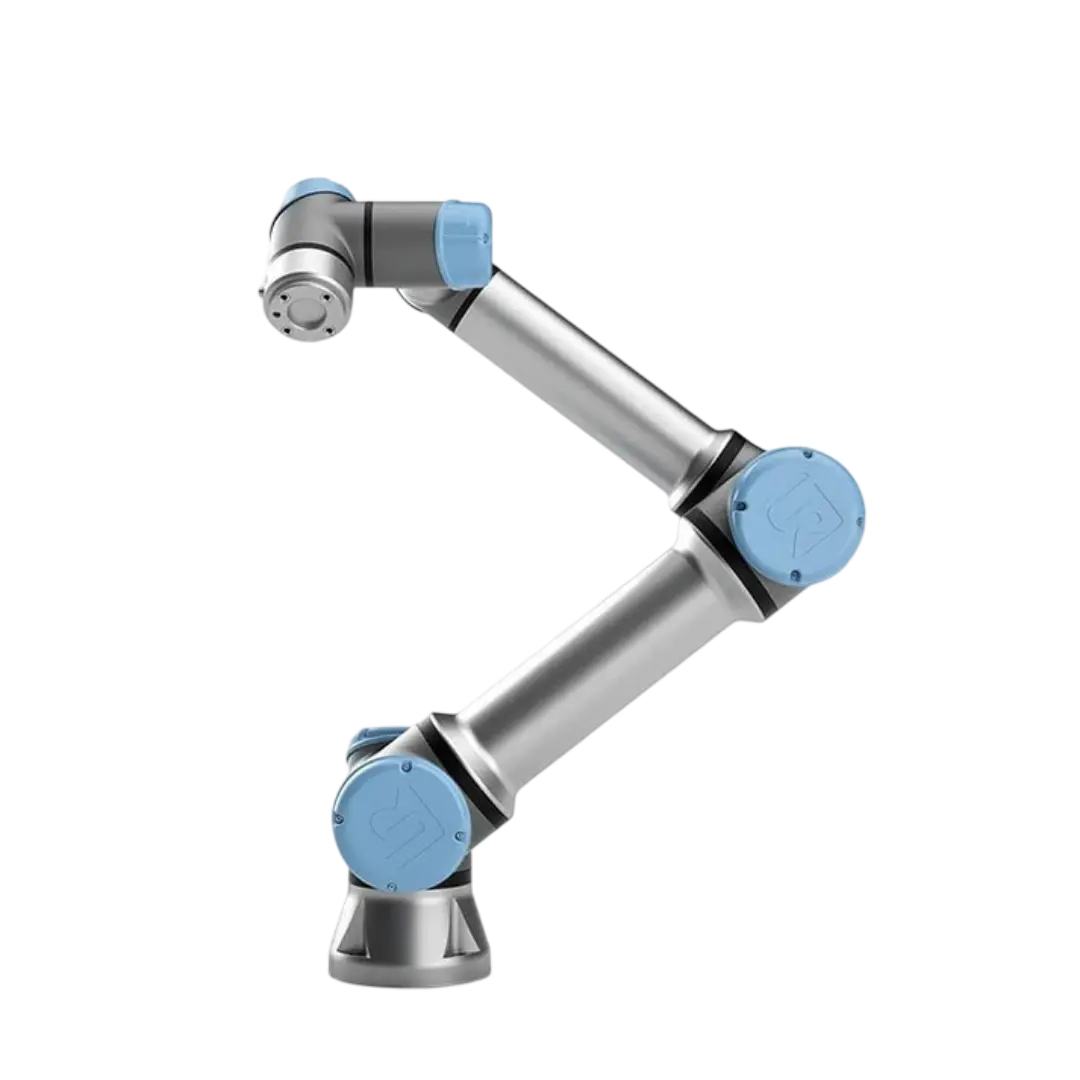

The UR7e is a six-axis collaborative robot built for precision work in confined spaces. It handles payloads up to 7.5 kg across an 850 mm reach with 0.03 mm repeatability, making it ideal for assembly, machine tending, palletizing, welding, and inspection. At just 20.6 kg and 151 mm diameter, it fits into existing production lines and relocates easily. IP54-rated with 17 safety functions certified to PLd Category 3, the UR7e runs Polyscope 5 or X software on a 12-inch touchscreen and connects via Modbus TCP, PROFINET, Ethernet/IP, and ROS/ROS2.

Universal Robots UR7e Collaborative Robot, 7.5 kg, 850 mm

The Universal Robots UR7e collaborative robot is a 6-axis industrial robotic arm designed for precise automation tasks in manufacturing, assembly, and material handling environments requiring a maximum payload of 7.5 kg and a reach of 850 mm.

Key Specifications:

Payload: 7.5 kg
Reach: 850 mm
Repeatability: 0.03 mm
Weight: 20.6 kg

Features and Safety:

Six degrees of freedom for versatile motion profiles.
IP54 ingress protection makes the UR7e suitable for typical industrial environments.
17 configurable safety functions certified to PLd Category 3 support collaborative work alongside human operators.
Standard integration with Polyscope 5 or X software for intuitive programming on a 12-inch touchscreen teach pendant.

Connectivity and Interface:

Supports Modbus TCP, PROFINET, Ethernet/IP, ROS/ROS2 protocols for industrial communication.
Includes USB 2.0/3.0 ports, Mini DisplayPort, and multiple digital and analog inputs/outputs.
Tool interface offers RS connectivity with 12 V and 24 V power options.

Applications:

Suited for assembly, machine tending, palletizing, welding, inspection, material handling, and polishing tasks.
The compact footprint (151 mm diameter) of the UR7e simplifies integration into space-constrained production lines.
Easy redeployment and rapid setup help manufacturers adapt to changing production requirements.

Competitive Differentiation:

The Universal Robots UR7e stands out among collaborative robots in the 7 to 8 kg class by combining a generous 850 mm reach, low weight of 20.6 kg, and fast integration with safety certifications, making it ideal for flexible automation on crowded factory floors.

Weight20.6 kg

Max. Payload7.5 kg

Max. Reach: 850 mm
DOF: 6
Repeatability: ±0.03 mm
Max. Speed: 4
Protection Class: IP 54
Payload: 7.5 kg
Reach: 850 mm
Speed: 4 m/s
IP Rating: IP54
Safety Functions: 17 functions, PLd Category 3
Connectivity: Modbus TCP
PROFINET
Ethernet/IP
ROS/ROS2
Digital I/O
Analog I/O
USB 2.0/3.0
Mini DisplayPort
Tool Communication: RS interface, 12/24 V

Dust and splash resistant, IP54 rated, with 17 safety functions compliant with PLd Category 3
Program intuitively via Polyscope 5 or X software on 12 inch touchscreen teach pendant
Connect tools using RS interface with 12 V and 24 V power supply options
Six axes enable versatile motion across manufacturing, assembly, and material handling tasks
Grips with precision, 0.03 mm repeatability in confined spaces, Ø 151 mm footprint
Lifts 7.5 kg payload across 850 mm reach, weighs only 20.6 kg for easy integration
Integrates via Modbus TCP, PROFINET, Ethernet/IP, ROS/ROS2 for industrial automation networks
Safety Functions: 17 safety functions certified to PLd Category 3
Tool communication supports both 12 V and 24 V power supply options.

: The UR7e lifts a maximum payload of 7.5 kg across its 850 mm reach. This makes it suitable for assembly, material handling, and precision tasks in manufacturing environments.
: The UR7e includes 17 configurable safety functions certified to PLd Category 3, enabling safe collaborative work alongside human operators. It is IP54 rated for typical industrial environments and designed as a collaborative robot for shared workspaces.
: Programming uses Polyscope 5 or X software on a 12-inch touchscreen teach pendant with intuitive, visual programming. The robot also integrates with Modbus TCP, PROFINET, Ethernet/IP, ROS/ROS2 protocols for industrial automation networks.
: The UR7e achieves 0.03 mm repeatability, enabling precise motion in confined spaces for assembly and inspection tasks. This high precision combined with six axes of motion supports versatile manufacturing applications.
: The UR7e weighs only 20.6 kg with a compact circular footprint of 151 mm diameter, making it easy to integrate into space-constrained production lines and simple to redeploy as production needs change.
: Tools connect via the RS interface with 12 V and 24 V power supply options, plus USB 2.0/3.0 ports, Mini DisplayPort, and multiple digital and analog inputs/outputs for flexible end-effector integration.

Collaborative Robot vs. Traditional Industrial Arm:

The UR7e is a lightweight collaborative cobot designed to work safely alongside human operators, unlike traditional industrial robots that require protective cages. It combines the flexibility of manual setup with the precision and speed of automation.

For assembly lines with frequent product changeovers, the 12-inch touchscreen teach pendant and Polyscope software let operators reprogram tasks in minutes without coding expertise.
In confined workspaces under 1.5 square meters, the 151 mm footprint and 20.6 kg weight fit where traditional 100+ kg arms cannot, eliminating costly cell redesigns.
For handling delicate parts or components under 7.5 kg, the 0.03 mm repeatability and six-axis motion deliver precision in assembly, inspection, and material placement tasks.
On shared production floors where safety is critical, 17 built-in safety functions certified to PLd Category 3 allow the cobot to operate without guards, reducing setup time and enabling fast redeployment between stations.
For integration into existing automation networks, native support for Modbus TCP, PROFINET, and Ethernet/IP connects directly to your factory IT systems without custom adapters.
