In Stock

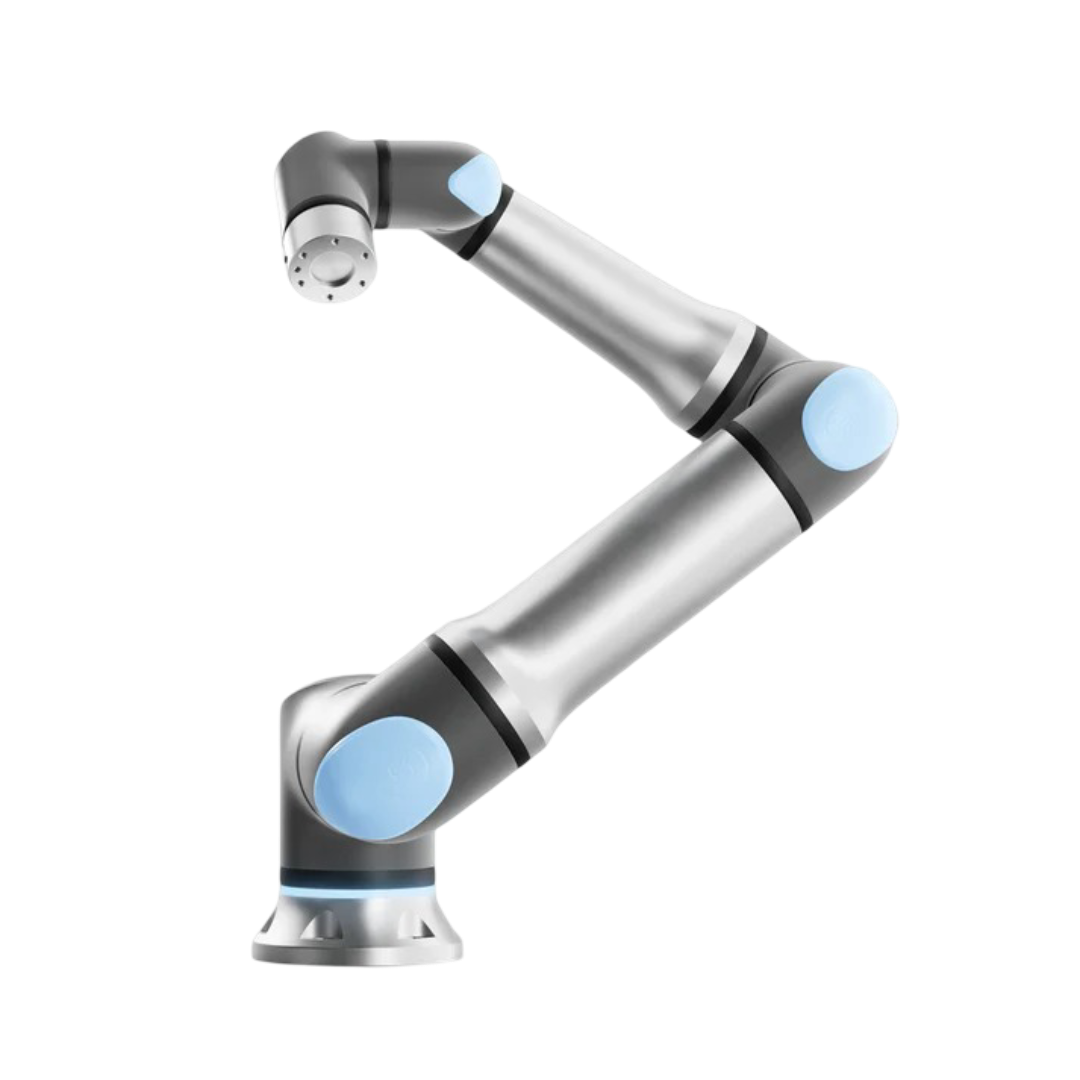

Universal Robots UR30 | 6DOF | 1300mm | 35kg
Universal Robots
$70,188.00
Powerful Cobot for Heavy-Duty Automation The UR30 is a collaborative 6-axis robot with a payload of up to 35 kg and a reach of 1300 mm.
Product Description
The UR30 is a collaborative 6-axis robot with a payload of up to 35 kg and a reach of 1300 mm.
With a repeatability of ±0.1 mm, a compact footprint of Ø 245 mm, and a weight of 63.5 kg, it's ideal for high-force applications.
The robot arm is IP65-rated and certified for ISO Class 4 cleanroom use, making it suitable for demanding industrial environments.
Control is provided via the intuitive Polyscope software on a 12" touchscreen.
The UR30 supports interfaces such as Modbus TCP, PROFINET, Ethernet/IP, USB 2.0/3.0, and includes digital and analog I/Os.
Tool communication is handled via an M8 connector, with 12/24 V power supply.
It features 17 built-in safety functions compliant with PLd Category 3.
Common applications include palletizing, machine tending, material handling, screwing and drilling, and quality inspection.
With its high payload and precise motion control, the UR30 is ideal for tasks involving multiple grippers or high torque – perfect for companies aiming to boost productivity and automate flexibly.
With a repeatability of ±0.1 mm, a compact footprint of Ø 245 mm, and a weight of 63.5 kg, it's ideal for high-force applications.
The robot arm is IP65-rated and certified for ISO Class 4 cleanroom use, making it suitable for demanding industrial environments.
Control is provided via the intuitive Polyscope software on a 12" touchscreen.
The UR30 supports interfaces such as Modbus TCP, PROFINET, Ethernet/IP, USB 2.0/3.0, and includes digital and analog I/Os.
Tool communication is handled via an M8 connector, with 12/24 V power supply.
It features 17 built-in safety functions compliant with PLd Category 3.
Common applications include palletizing, machine tending, material handling, screwing and drilling, and quality inspection.
With its high payload and precise motion control, the UR30 is ideal for tasks involving multiple grippers or high torque – perfect for companies aiming to boost productivity and automate flexibly.
Weight
35 kg
Dimensions
N/A
Part Number
200089
RBTX SKU
RBTX-UR-200089
Max. Payload
35 kg
Max. Reach
300 mm / 1
DOF
6
Weight
63.5 kg
Repeatability
0.1 mm
Max. Speed
4
Protection Class
IP65
Control is provided via the intuitive Polyscope software on a 12" touchscreen.
Tool communication is handled via an M8 connector, with 12/24 V power supply.
It features 17 built-in safety functions compliant with PLd Category 3.
