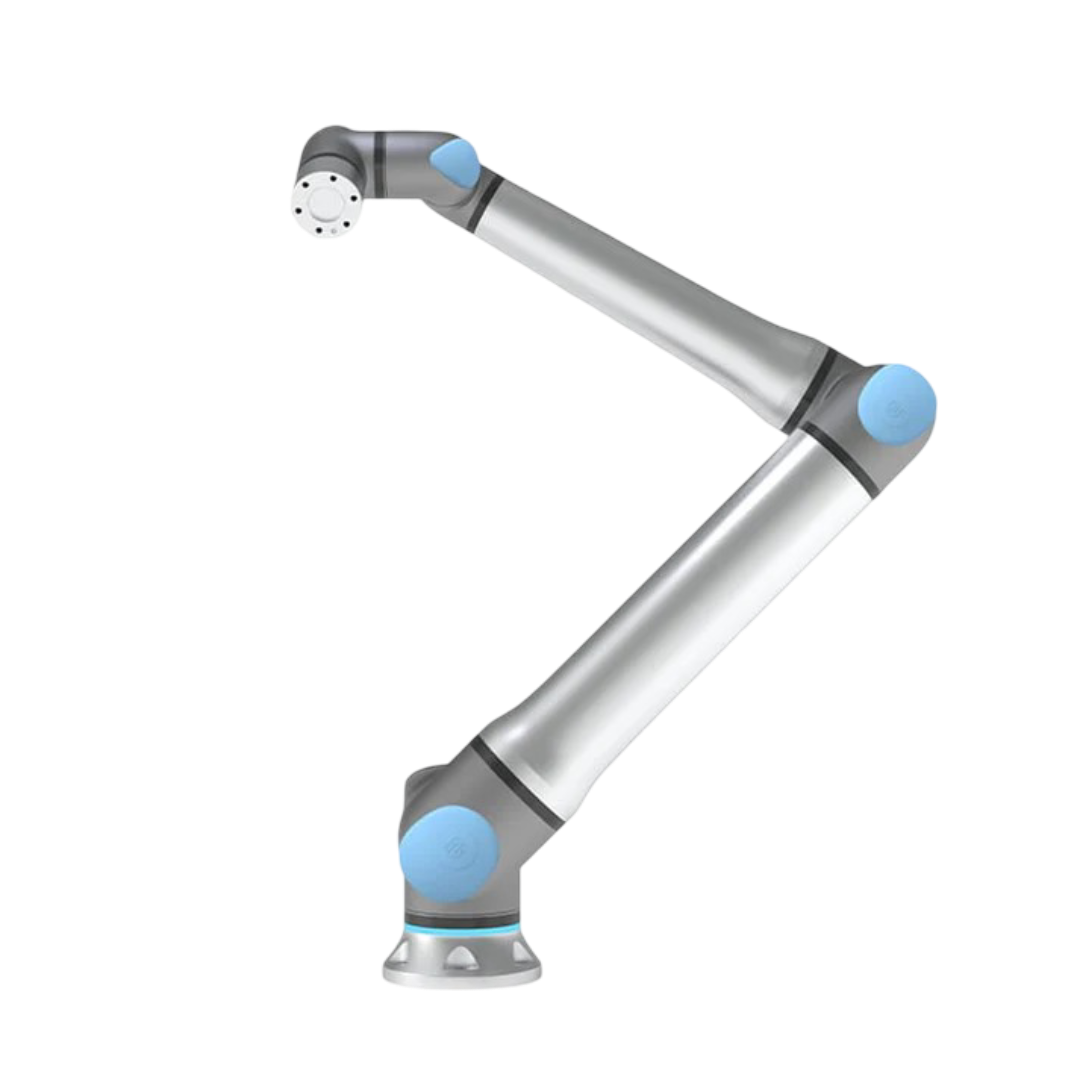

Universal Robots UR20 | 6DOF | 1750mm | 25kg
Universal Robots
$75,588.00
High-Performance Cobot with Extended Reach The UR20 is a collaborative 6-axis robot with a payload of up to 25 kg and a reach of 1750 mm.
Product Description
The UR20 is a collaborative 6-axis robot with a payload of up to 25 kg and a reach of 1750 mm.
With a repeatability of ±0.1 mm and a compact footprint of Ø 245 mm, it's ideal for demanding tasks involving heavy components.
The Universal Robot UR20 is certified for use in cleanroom environments up to ISO Class 4, the UR20 is IP65-rated, making it suitable for industrial environments.
Control is provided via the intuitive Polyscope 5 software on a 12" touchscreen.
The UR20 supports interfaces such as Modbus TCP, PROFINET, Ethernet/IP, ROS/ROS2, USB 2.0/3.0, Mini DisplayPort, and includes digital and analog I/Os.
Tool communication is handled via an M8 8-pin connector, with 12/24 V power supply.
Common applications include palletizing, machine tending, welding, material handling, quality inspection, and grinding.
With its high payload and compact design, the UR20 integrates easily into existing production lines – ideal for companies looking to elevate their automation capabilities.
With a repeatability of ±0.1 mm and a compact footprint of Ø 245 mm, it's ideal for demanding tasks involving heavy components.
The Universal Robot UR20 is certified for use in cleanroom environments up to ISO Class 4, the UR20 is IP65-rated, making it suitable for industrial environments.
Control is provided via the intuitive Polyscope 5 software on a 12" touchscreen.
The UR20 supports interfaces such as Modbus TCP, PROFINET, Ethernet/IP, ROS/ROS2, USB 2.0/3.0, Mini DisplayPort, and includes digital and analog I/Os.
Tool communication is handled via an M8 8-pin connector, with 12/24 V power supply.
Common applications include palletizing, machine tending, welding, material handling, quality inspection, and grinding.
With its high payload and compact design, the UR20 integrates easily into existing production lines – ideal for companies looking to elevate their automation capabilities.
Weight
25 kg
Dimensions
N/A
Part Number
200520
RBTX SKU
RBTX-UR-200520
Max. Payload
25 kg
Max. Reach
750 mm / 1
DOF
6
Weight
0.64 kg
Repeatability
0.1 mm
Max. Speed
5
Protection Class
IP 65
Control is provided via the intuitive Polyscope 5 software on a 12" touchscreen.
Tool communication is handled via an M8 8-pin connector, with 12/24 V power supply.
Common applications include palletizing, machine tending, welding, material handling, quality inspection, and grinding.
