In Stock

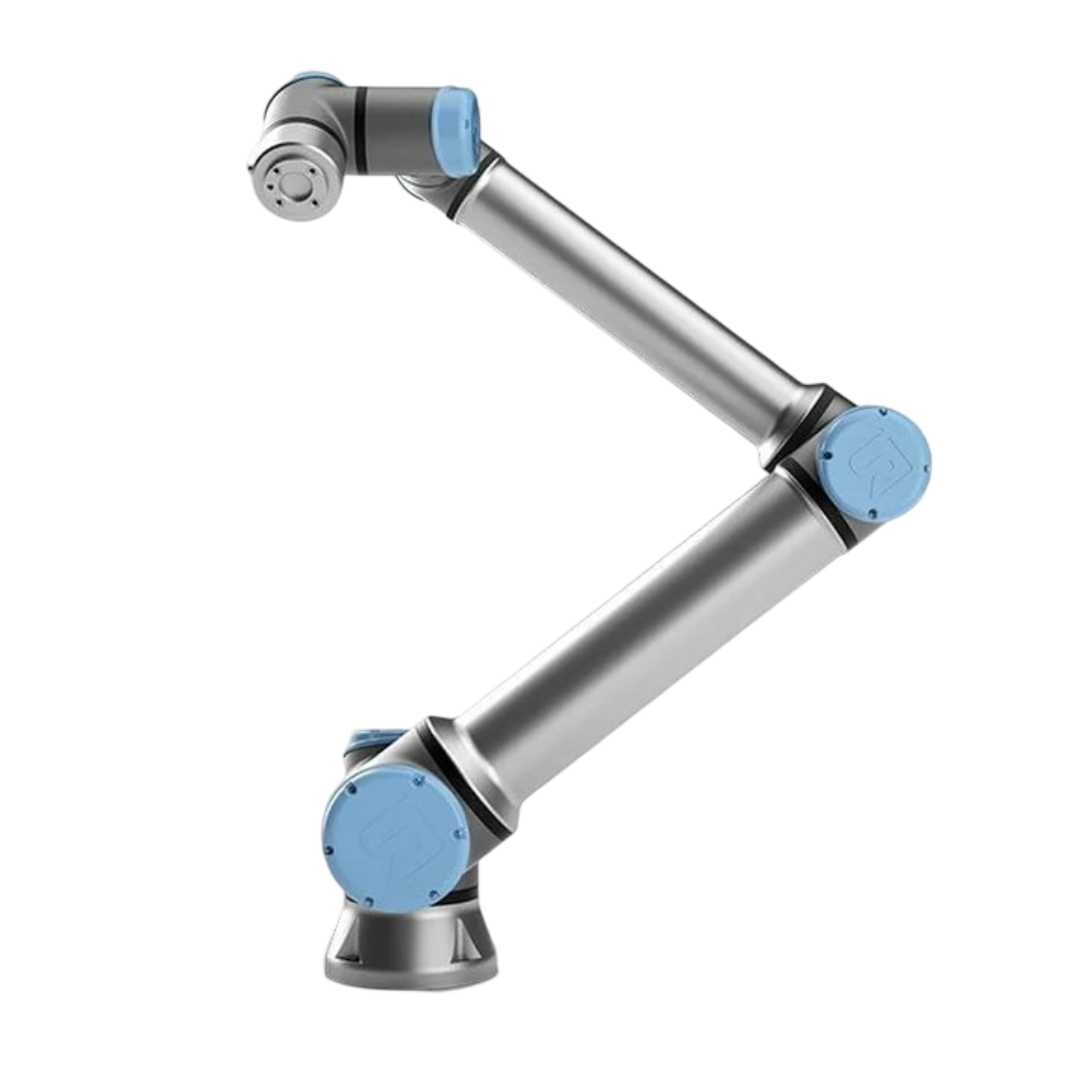

Universal Robots UR12e | 6DOF | 1300mm | 12,5kg
Universal Robots
$64,324.80
Powerful 6-Axis Cobot for Demanding Automation Tasks The UR12e is a collaborative 6-axis robot with a payload of 12.5 kg and a reach of 1300 mm.
Product Description
The UR12e is a collaborative 6-axis robot with a payload of 12.5 kg and a reach of 1300 mm.
With a repeatability of ±0.05 mm and a compact footprint of Ø 190 mm, it is ideal for precise tasks involving heavy tools.
Weighing 33.5 kg, the UR12e is IP54-rated and features 17 built-in safety functions compliant with PLd Category 3.
Control is handled via the user-friendly Polyscope 5 software on a 12" touchscreen.
The UR12e supports interfaces like Modbus TCP, PROFINET, Ethernet/IP, and ROS, enabling seamless integration into existing automation systems.
Digital and analog I/Os as well as URCaps allow easy expansion with third-party components.
Typical applications include machine loading, packaging, inspection, and handling of heavy parts.
The UR12e combines high payload capacity with collaborative safety, making it ideal for companies seeking robust automation with intuitive operation.
The UR12e offers an impressive combination of power, precision, and reach, with a payload capacity of 12.5 kg and a reach of 1300 mm.
Its ±360° rotational range across all six joints ensures exceptional maneuverability, while the high-speed operation of up to 4 m/s drives productivity.
Safety features include 17 configurable safety functions compliant with EN ISO 13849-1 (PLd Category 3), force/torque sensing technology, and low operating noise levels of less than 60 dB(A).
The UR12e features the intuitive PolyScope graphical user interface accessible via a 12-inch touchscreen, supports multiple communication interfaces including Ethernet/IP, Modbus TCP, and PROFINET, and allows installation in any orientation with energy-efficient performance averaging 350–615W.
With a repeatability of ±0.05 mm and a compact footprint of Ø 190 mm, it is ideal for precise tasks involving heavy tools.
Weighing 33.5 kg, the UR12e is IP54-rated and features 17 built-in safety functions compliant with PLd Category 3.
Control is handled via the user-friendly Polyscope 5 software on a 12" touchscreen.
The UR12e supports interfaces like Modbus TCP, PROFINET, Ethernet/IP, and ROS, enabling seamless integration into existing automation systems.
Digital and analog I/Os as well as URCaps allow easy expansion with third-party components.
Typical applications include machine loading, packaging, inspection, and handling of heavy parts.
The UR12e combines high payload capacity with collaborative safety, making it ideal for companies seeking robust automation with intuitive operation.
The UR12e offers an impressive combination of power, precision, and reach, with a payload capacity of 12.5 kg and a reach of 1300 mm.
Its ±360° rotational range across all six joints ensures exceptional maneuverability, while the high-speed operation of up to 4 m/s drives productivity.
Safety features include 17 configurable safety functions compliant with EN ISO 13849-1 (PLd Category 3), force/torque sensing technology, and low operating noise levels of less than 60 dB(A).
The UR12e features the intuitive PolyScope graphical user interface accessible via a 12-inch touchscreen, supports multiple communication interfaces including Ethernet/IP, Modbus TCP, and PROFINET, and allows installation in any orientation with energy-efficient performance averaging 350–615W.
Weight
12.5 kg
Dimensions
N/A
Part Number
200875
RBTX SKU
RBTX-UR-200875
Max. Payload
12.5 kg
Max. Reach
300 mm / 1
DOF
6
Weight
33.5 kg
Repeatability
0.05 mm
Max. Speed
4
Protection Class
IP 54
Weighing 33.5 kg, the UR12e is IP54-rated and features 17 built-in safety functions compliant with PLd Category 3.
Control is handled via the user-friendly Polyscope 5 software on a 12" touchscreen.
Digital and analog I/Os as well as URCaps allow easy expansion with third-party components.
Typical applications include machine loading, packaging, inspection, and handling of heavy parts.
