Is the Tooldrives Compact Line CNC Machining Module compatible with Universal Robots?

Yes, the module is UR+ certified for Universal Robots with direct PolyScope control, enabling seamless integration and programming on the UR platform. It supports modular mounting interfaces for rapid setup in custom robotic cells.

What is the maximum spindle speed and power output?

The module delivers over 2 kW at speeds up to 14,000 rpm, providing sufficient power for drilling, milling, deburring, and grinding operations. The ER20 tool holder supports quick tool changes for different machining tasks.

How much weight does the Compact Line CNC Machining Module add to my cobot?

The module weighs just 2.3 kg, minimizing payload demand on collaborative arms and preserving capacity for workpiece handling. Its compact 170 mm form factor fits easily in constrained work cell layouts.

Can I extract dust and chips during machining operations?

The module includes a suction-ready interface that simplifies dust extraction in dry-processing work cells, helping maintain a clean and efficient machining environment. Variable cable outlets support flexible routing of suction lines and power cables.

What materials and applications is this module designed for?

The Compact Line CNC Machining Module is optimized for drilling, milling, deburring, grinding, polishing, and sawing on wood and composite materials in dry-processing environments. It delivers precise material removal with durable bearings for reliable performance in custom robotic setups.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCompact Design

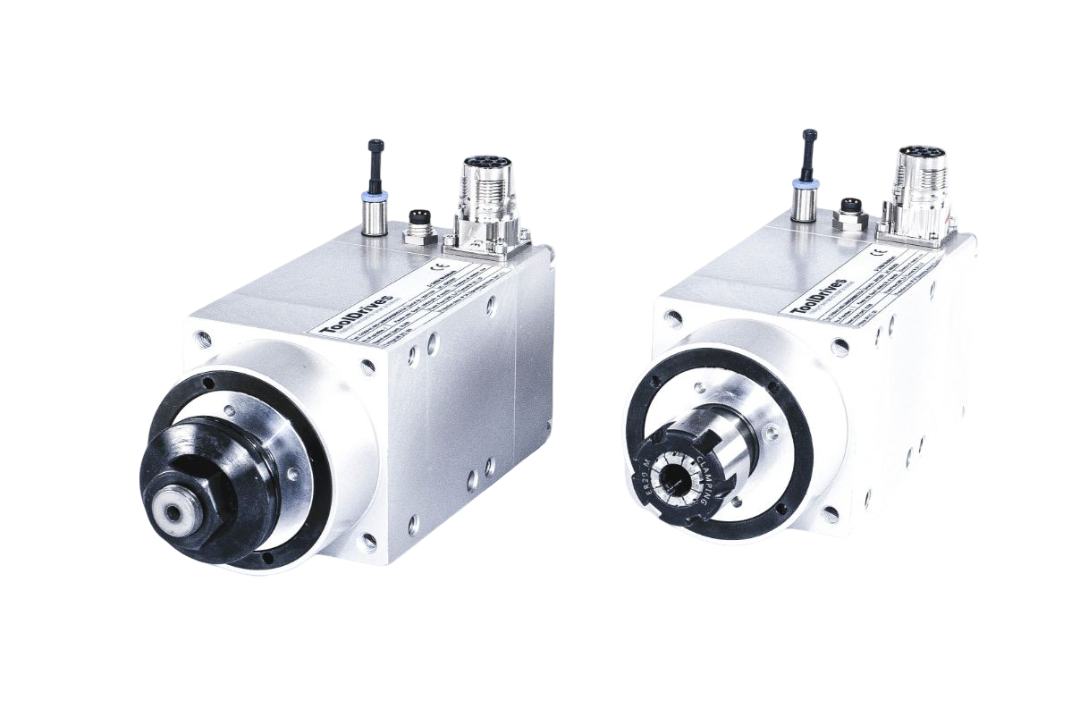

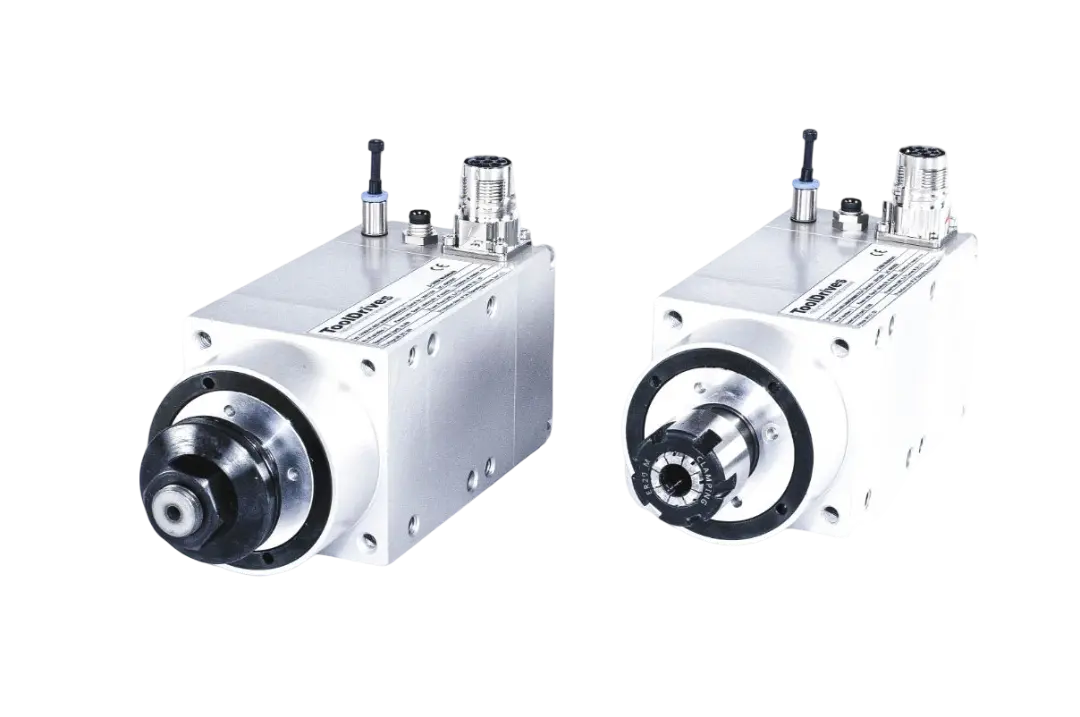

Tooldrives Compact Line CNC Machining Module

Name: Tooldrives Compact Line CNC Machining Module
Brand: Tooldrives
SKU: 3697
Price: 16700 USD
Availability: InStock

ToolDrives GmbH & Co. KG

$16,700.00

UR+ certified 2.3 kg machining module for cobot drilling, milling, deburring, grinding, and polishing. ER20 tool holder, 2 kW motor, up to 14,000 rpm, 170 mm compact form factor for dry-processing of wood and composites.

Tooldrives Compact Line CNC Machining Module is a lightweight cobot machining module designed for integration with Universal Robots and other collaborative robots in automated CNC applications.

Headline Specifications:

Module weight: 2.3 kg
Form factor: 170 mm length
Motor power: over 2 kW, speeds up to 14,000 rpm

Compatibility and Flexibility:

UR+ certified for Universal Robots platform, with PolyScope direct control
Modular mounting interfaces support rapid integration
Variable cable outlets allow flexible cable management in automation cells
Suction-ready interface for dust extraction

Applications:

Robotic drilling, milling, deburring, grinding, polishing, and sawing in dry-processing environments
Machining wood and composite materials with precision concentricity and durable bearings
Ideal for flexible, compact, and energy-efficient cobot work cells

Key Features:

Supports automated CNC machining tasks requiring precise material removal
Compatible with ER20 cobot machining tools for quick tool changes
Optimized for lightweight robotic drilling modules and advanced production environments

Tooldrives Compact Line CNC Machining Module is suited for buyers seeking a universal robots machining module that ensures reliable performance in custom robotic setups.

Weight2.3 kg

Payload: 2.3 kg
Reach: 170 mm
Tool Holder: ER20
Power: 2 kW
Speed: 14,000 rpm
Compatibility: UR+
Mounting Interface: Modular
Cable Outlet: Variable
Suction Interface: Suction-ready

Delivers over 2 kW at 14,000 rpm, compact 170 mm form factor for cobot integration
UR+ certified for Universal Robots with direct PolyScope control
ER20 tool holder enables quick tool changes for drilling, milling, deburring, grinding
Weighs just 2.3 kg, reducing payload demand on collaborative arms
Suction-ready interface simplifies dust extraction in dry-processing work cells
Variable cable outlets support flexible routing in automated machining setups
Modular mounting interfaces accelerate integration into custom robotic cells

: Yes, the module is UR+ certified for Universal Robots with direct PolyScope control, enabling seamless integration and programming on the UR platform. It supports modular mounting interfaces for rapid setup in custom robotic cells.
: The module delivers over 2 kW at speeds up to 14,000 rpm, providing sufficient power for drilling, milling, deburring, and grinding operations. The ER20 tool holder supports quick tool changes for different machining tasks.
: The module weighs just 2.3 kg, minimizing payload demand on collaborative arms and preserving capacity for workpiece handling. Its compact 170 mm form factor fits easily in constrained work cell layouts.
: The module includes a suction-ready interface that simplifies dust extraction in dry-processing work cells, helping maintain a clean and efficient machining environment. Variable cable outlets support flexible routing of suction lines and power cables.
: The Compact Line CNC Machining Module is optimized for drilling, milling, deburring, grinding, polishing, and sawing on wood and composite materials in dry-processing environments. It delivers precise material removal with durable bearings for reliable performance in custom robotic setups.

Integrated Spindle vs. Manual Tool Changers:

The Tooldrives Compact Line is a powered CNC spindle module built into a cobot arm, versus bolting on a separate tool changer that requires manual bit swaps or external automation. Choose this when you need continuous machining power (drilling, milling, deburring, grinding) in tight or mixed-task cells.

For delicate composites and wood requiring consistent spindle speed at up to 14,000 rpm, the integrated 2 kW motor delivers precise material removal without vibration from manual repositioning.
In compact work cells where floor space is limited, the 170 mm form factor and 2.3 kg weight free cobot payload for grippers or secondary tooling instead of adding a bulky external changer.
On Universal Robots arms with UR+ certification and PolyScope control, ER20 quick-change bits eliminate downtime between drilling and grinding tasks in a single automated routine.
Where dry dust extraction matters, the suction-ready interface plugs directly into a dust collection system without external adapters or routing complications.
