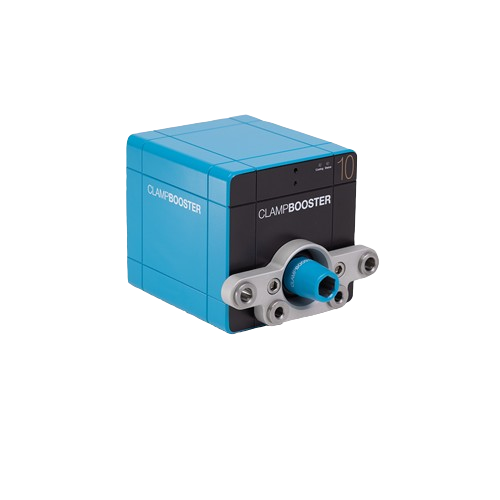

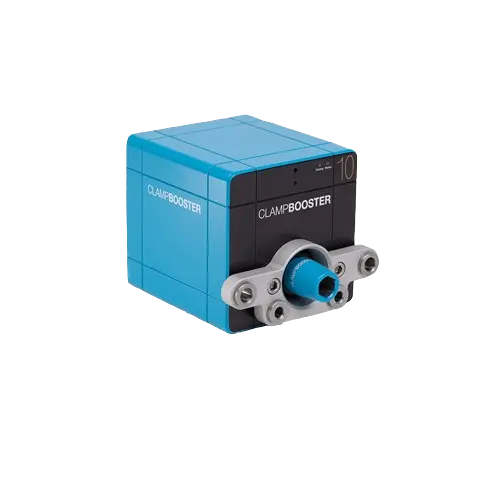

The CLAMPBOOSTER CB-10 is an automation device designed to upgrade manual CNC vises to automated operation without modifying the existing CNC machine.
Housed in a compact 10×10 cm unit weighing 1.95 kg, it delivers up to 100 Nm of torque for repeatable clamping operations.
The device uses a software-based control system that allows operators to program spindle revolutions to adjust both torque and opening distance, enabling consistent clamping across different workpiece geometries.
The CB-10 accommodates nearly all common vise systems through interchangeable adapters and can be integrated with industrial robots and collaborative robots.
Its touchscreen interface simplifies setup and parameter adjustment.
The system enables automated clamping for continuous unattended operation without disrupting existing workflows.
This device is suited for CNC automation retrofits, high-mix machining environments, and manufacturing facilities implementing scalable clamping automation.
Training facilities can also use the CB-10 to introduce automation concepts with minimal infrastructure changes.
