In Stock

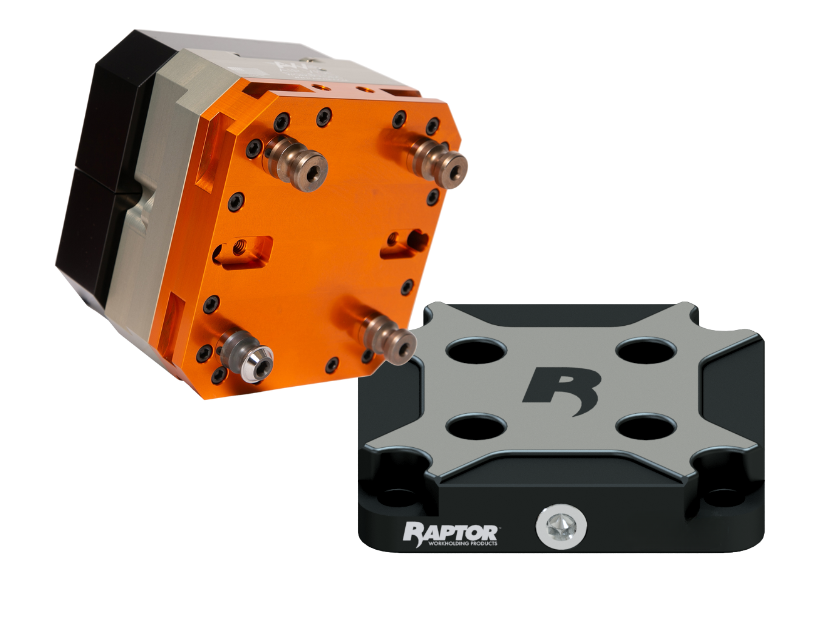

Table Vise 96mm Zero Point Base
Air Vise & Workholding
$804.00
1,880.00Pneumatic precision self-centering table vise with 96mm zero point base for CNC machining applications.
Product Description
The Table Vise is ideal for maximizing efficiency, running smaller parts and changing operations frequently.
Features a unique T-Hook that allows jaws to disengage in open position for rapid changeout.
One touch open and close feature provides consistent and repeatable clamping.
The vise base comes ready to receive standard pull studs for zero point systems and is designed to fit Lang, Jergens, and 5th axis 96mm base plate.
Includes workholding hardware, fixture keys, jaw shim and fittings.
Features a unique T-Hook that allows jaws to disengage in open position for rapid changeout.
One touch open and close feature provides consistent and repeatable clamping.
The vise base comes ready to receive standard pull studs for zero point systems and is designed to fit Lang, Jergens, and 5th axis 96mm base plate.
Includes workholding hardware, fixture keys, jaw shim and fittings.
Weight
0 kg
Dimensions
5.980 x 5.980 in footprint
Material
7075 T-6 Hard Anodized Aluminum
Footprint
5.980 in x 5.980 in
Jaw Width
6.00 in
Throat Depth
15/16 in
Material
7075 T-6 Hard Anodized Aluminum
Includes workholding hardware, fixture keys, jaw shim and fittings
Workholding hardware / fixture keys / jaw shim and fittings
Note
Raptor Plate and Pull Studs not included
96mm Zero Point Base Adaptable
Quick 6" Wide Self-Centering
7075 T-6 Hard Anodized Soft Jaws
Adjustable, Consistent, Repeatable O/D and I/D Clamping Force
Easy Integration with Robotic Command Controls or M-Codes Operation
Small Footprint
Optimized for Chip Evacuation
Made in the U.S.A.
One touch open and close feature
Unique T-Hook for rapid jaw changeout
