What is the maximum weight the Rocholz SYSTEM FLEX can support?

The SYSTEM FLEX table handles a 220 kg payload, which supports large cobots and heavy equipment in collaborative workstations. This capacity makes it suitable for demanding assembly, palletizing, and testing applications.

Can I adjust the height of this table quickly during production?

The SYSTEM FLEX raises or lowers at 12 mm/s with stepless adjustment between 730-1130 mm, and you can save four preset heights to recall instantly for rapid task switching. This electric adjustment is faster and more precise than manual systems.

How do I mount accessories and equipment to the SYSTEM FLEX?

The table features modular aluminum profiles with 8 mm grooves that let you customize and mount accessories directly to the work surface. It also mounts on an HR profile tube frame for integration with standard cobot platforms.

What are the table dimensions and work surface thickness?

The SYSTEM FLEX is 2000 mm long by 800 mm wide with a 40 mm thick worktop, and adjusts from a minimum height of 730 mm to a maximum of 1130 mm. The modular aluminum profile design allows you to extend or reconfigure the work surface as needed.

Is the Rocholz SYSTEM FLEX suitable for my assembly line?

The SYSTEM FLEX is engineered for assembly, palletizing, product testing, and packaging workflows with its ergonomic height adjustment and high payload capacity. The four-position memory function makes it ideal for switching between different assembly task setups throughout the day.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockHeight Adjustable

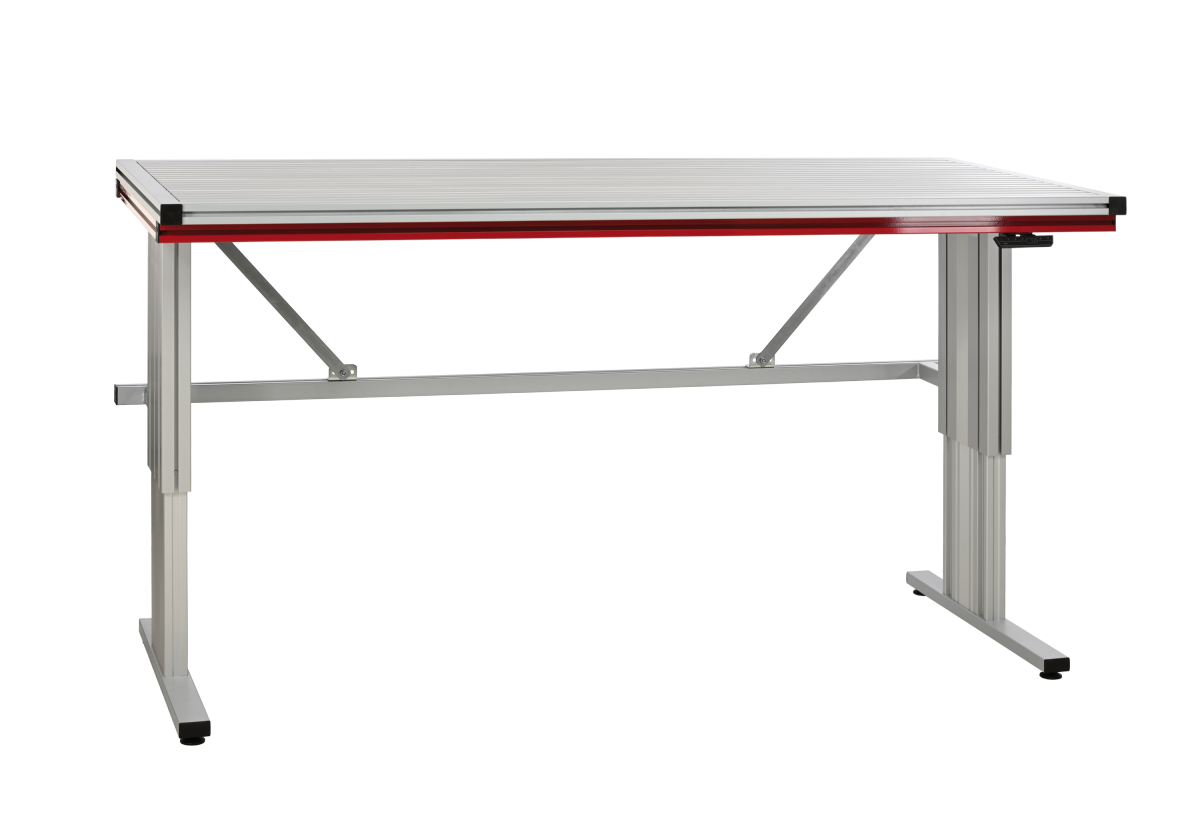

Rocholz SYSTEM FLEX Height Adjustable Table, 220 kg, Cobot

Name: Rocholz SYSTEM FLEX Height Adjustable Table, 220 kg, Cobot
Brand: Rocholz
SKU: 3290
Price: 7195 USD
Availability: InStock

Rocholz GmbH

$7,195.00

Electric height-adjustable work table for cobot integration, 2000x800 mm, stepless 730-1130 mm range, 220 kg payload, four-position memory, modular accessory mounting.

SYSTEM FLEX, Electric Height-Adjustable Cobot Table is an electric adjustable table engineered for collaborative robot (cobot) workstations in industrial environments.

Features:

Stepless electric spindle height adjustment for optimal ergonomic positioning
Four-position memory function saves repeatable working heights
Suitable for assembly, palletizing, product testing, and packaging workflows

Specifications:

Height Adjustment: 730–1130 mm
Payload Capacity: 220 kg
Speed: 12 mm/s
Table Size: 2000 x 800 mm
Worktop Thickness: 40 mm
Mounting Interface: HR profile tube frame, aluminum profiles with 8 mm grooves

Dimensions:

Overall size: 2000 mm length x 800 mm width
Height adjustable from 730 mm to 1130 mm

Competitive Advantages:

Electric height adjustment is faster and more precise than manual crank systems
High 220 kg payload makes SYSTEM FLEX suitable for large cobots and heavy equipment
Memory function allows quick switching between task-specific setups
Manufactured by Rocholz GmbH, part number 73002500, known for robust industrial platforms

Application Overview:

Supports assembly stations, palletizing lines, quality testing cells, and packaging zones
Easy modular integration with popular cobot models

Gripper Dimensions2000x800x730-1130 mm

Model: 73002500
Payload: 220 kg
Reach: 400 mm
Adjustment Speed: 12 mm/s
Memory Functions: 4 positions
Tabletop Size: 2000 x 800 mm
Tabletop Material: Aluminum profiles with 8 mm grooves
Frame Finish: RAL 9006 white aluminum
Beam Finish: RAL 3003 ruby red

Customize with modular aluminum profiles and 8 mm grooves for accessories
Adjust height 730–1130 mm steplessly for ergonomic positioning
Recall four preset heights instantly, speeds task switching
Handle 220 kg payload, supports large cobots and heavy equipment
Raise or lower table at 12 mm/s for quick repositioning
Suit assembly, palletizing, testing, and packaging workflows seamlessly
Mount on HR profile tube frame, integrates with standard cobot platforms

: The SYSTEM FLEX table handles a 220 kg payload, which supports large cobots and heavy equipment in collaborative workstations. This capacity makes it suitable for demanding assembly, palletizing, and testing applications.
: The SYSTEM FLEX raises or lowers at 12 mm/s with stepless adjustment between 730-1130 mm, and you can save four preset heights to recall instantly for rapid task switching. This electric adjustment is faster and more precise than manual systems.
: The table features modular aluminum profiles with 8 mm grooves that let you customize and mount accessories directly to the work surface. It also mounts on an HR profile tube frame for integration with standard cobot platforms.
: The SYSTEM FLEX is 2000 mm long by 800 mm wide with a 40 mm thick worktop, and adjusts from a minimum height of 730 mm to a maximum of 1130 mm. The modular aluminum profile design allows you to extend or reconfigure the work surface as needed.
: The SYSTEM FLEX is engineered for assembly, palletizing, product testing, and packaging workflows with its ergonomic height adjustment and high payload capacity. The four-position memory function makes it ideal for switching between different assembly task setups throughout the day.

Electric height-adjustable table versus manual or fixed-height cobot workstations:

The SYSTEM FLEX brings powered height adjustment to cobot assembly cells where manual cranking or fixed platforms would slow task switching or force ergonomic compromise. Choose this when your workflow moves between different payloads, operator heights, or process stages.

For multi-step workflows (assembly, testing, packaging on one cell), four preset heights cut repositioning time and eliminate dial-in errors on each shift change.
On palletizing or material-handling lines with loads up to 220 kg, the electric lift at 12 mm/s frees operator time versus manual adjustment and reduces strain on staff.
In tight or mixed-geometry cells where operator reach varies by task, stepless adjustment from 730 to 1130 mm lets one table serve both seated inspection and standing pack-out without platform swaps.
Modular aluminum frame with 8 mm grooves accepts custom fixtures and cobot mounts, so heavy tooling stays integrated without separate base modifications.
