Does a stepper motor need a motor driver?

Yes, a stepper motor requires a driver to control its phases and current. The TPM SVR-K112 is a closed-loop stepper driver that supplies up to 4.2A per phase to 2-phase bipolar stepper motors and adds encoder feedback for real-time position correction.

What is a driver for a stepper motor?

A stepper motor driver is a controller that energizes the motor's phases in the correct sequence and magnitude to produce motion. The TPM SVR-K112 does this while monitoring encoder feedback to detect and correct position errors automatically.

Can I run a stepper motor without a driver?

No, a stepper motor cannot run without a driver because it has no brushes to commutate current on its own. The TPM SVR-K112 provides the necessary phase switching, current control at 4.2A per phase, and closed-loop feedback for accurate positioning.

What is the maximum current for the TPM SVR-K112?

The TPM SVR-K112 delivers a maximum phase current of 4.2A per phase to drive 2-phase bipolar stepper motors in industrial automation systems.

How do I set up the TPM SVR-K112 on an EtherCAT network?

The TPM SVR-K112 uses onboard DIP switches for EtherCAT address configuration without requiring software tools. The driver connects to an EtherCAT network delivering 100 Mbps deterministic control and mounts in a compact 74 mm x 140 mm x 31 mm form factor on panel or DIN rail.

Does the TPM SVR-K112 correct positioning errors?

Yes, the TPM SVR-K112 uses encoder feedback to monitor motor position in real time and automatically correct errors, providing closed-loop control that conventional open-loop stepper drivers cannot match.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCompact Design

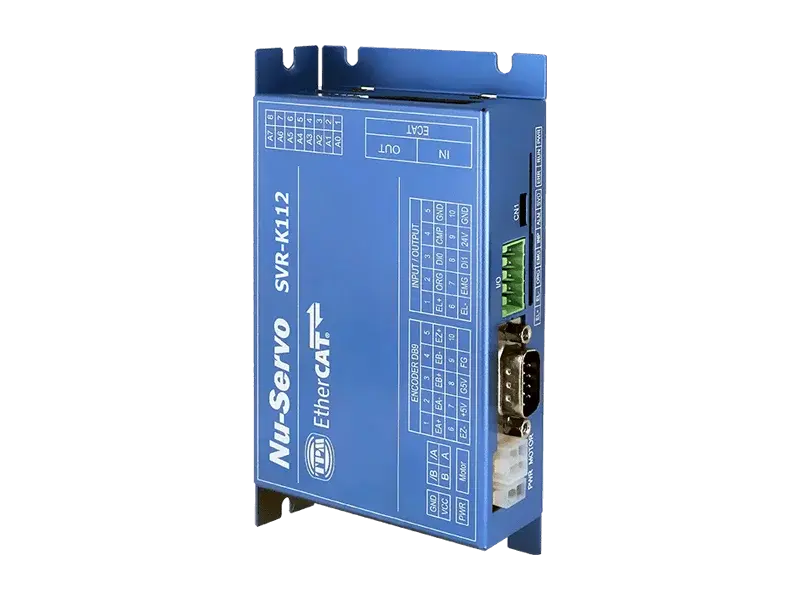

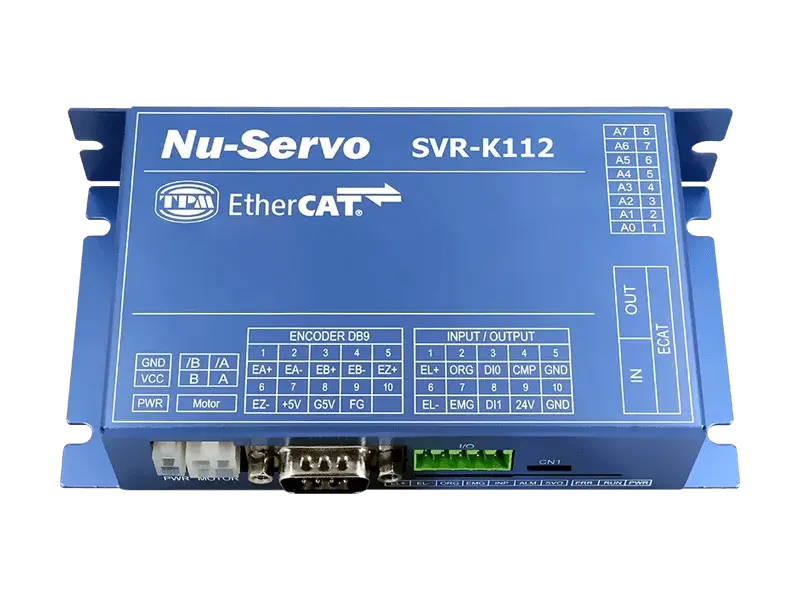

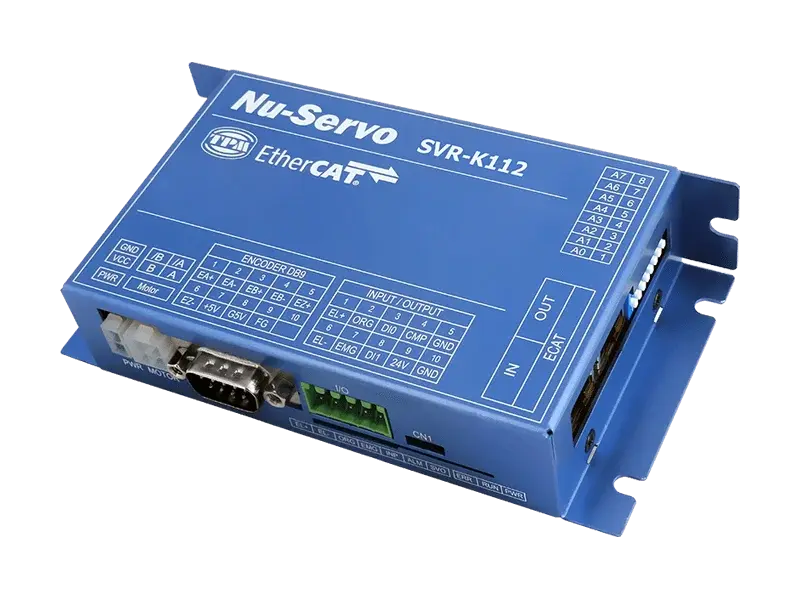

TPM SVR-K112 Stepper Motor Driver, EtherCAT, 4.2A

Name: TPM SVR-K112 Stepper Motor Driver, EtherCAT, 4.2A
Brand: TPM
SKU: 3054
Price: 419 USD
Availability: InStock

TPM

$419.00

Single-axis EtherCAT stepper motor driver for 2-phase bipolar motors up to 4.2A, with closed-loop encoder feedback, configurable resolution (500-50,000 ppr), and DIP switch address setup. Compact DIN rail mount for automated positioning systems.

The TPM SVR-K112 Stepper Motor Driver is a closed loop stepper motor controller designed for EtherCAT-based motion control systems in industrial automation environments.

Specifications:

Maximum phase current: 4.2A
User-selectable resolution: 500 to 50,000 pulses per revolution
Compact housing: 74 mm x 140 mm x 31 mm
EtherCAT communication: 100 Mbps

Features:

Closed loop stepper driver with encoder feedback for precise positional control
Supports 2-phase bipolar stepper motors
Onboard DIP switches for address configuration
Suitable for both panel and DIN rail mounting

Applications:

Automated machinery
Single-axis positioning
Motion control tasks requiring closed loop stepper motor controller performance and EtherCAT interface

Comparison & Compatibility:

Compatible with EtherCAT motion networks and standard 2-phase stepper motors
Positioned for users requiring closed loop stepper drive performance over distributed industrial networks
Alternative to conventional open loop stepper motor controllers where positional accuracy and network integration are critical

Frequently Asked Questions:

What is closed-loop feedback?
Closed-loop feedback uses an encoder to monitor motor position, enabling the TPM SVR-K112 to correct errors and deliver precise motion.
Why EtherCAT?
EtherCAT provides fast, deterministic communication for coordinated multi-axis and synchronised motion control.
Is the SVR-K112 compatible with industry-standard stepper motors?
Yes, it supports 2-phase bipolar stepper motors commonly used in industrial automation.

Dimensions74 mm (L) × 140 mm (W) × 31 mm (H)

Dimensions74 mm x 140 mm x 31 mm

Communication InterfaceEtherCAT

Maximum Current: 4.2A per phase
Resolution: 500 to 50,000 ppr
Mounting: Panel or DIN rail
Address Setup: Onboard DIP switches
Communication Speed: 100 Mbps
Motor Type Support: 2-phase bipolar stepper motors
Phases: 2-phase bipolar
Maximum Current per Phase: 4.2A
Feedback: Encoder
Axis Count: Single-axis

Closed-loop 1-axis EtherCAT drive handles 4.2A per phase, 2-phase bipolar steppers
Encoder feedback corrects position errors in real time, single axis
Drives 2-phase bipolar steppers at 4.2A per phase maximum
Adjustable resolution from 500 to 50,000 pulses per revolution
EtherCAT network delivers 100 Mbps deterministic control across distributed axes
DIP switch configuration simplifies EtherCAT address setup without software tools
Compact 74 mm x 140 mm x 31 mm body mounts panel or DIN rail
Resolution is user-configurable.

: Yes, a stepper motor requires a driver to control its phases and current. The TPM SVR-K112 is a closed-loop stepper driver that supplies up to 4.2A per phase to 2-phase bipolar stepper motors and adds encoder feedback for real-time position correction.
: A stepper motor driver is a controller that energizes the motor's phases in the correct sequence and magnitude to produce motion. The TPM SVR-K112 does this while monitoring encoder feedback to detect and correct position errors automatically.
: No, a stepper motor cannot run without a driver because it has no brushes to commutate current on its own. The TPM SVR-K112 provides the necessary phase switching, current control at 4.2A per phase, and closed-loop feedback for accurate positioning.
: The TPM SVR-K112 delivers a maximum phase current of 4.2A per phase to drive 2-phase bipolar stepper motors in industrial automation systems.
: The TPM SVR-K112 uses onboard DIP switches for EtherCAT address configuration without requiring software tools. The driver connects to an EtherCAT network delivering 100 Mbps deterministic control and mounts in a compact 74 mm x 140 mm x 31 mm form factor on panel or DIN rail.
: Yes, the TPM SVR-K112 uses encoder feedback to monitor motor position in real time and automatically correct errors, providing closed-loop control that conventional open-loop stepper drivers cannot match.

Closed-loop EtherCAT stepper drive vs. open-loop stepper controllers:

The TPM SVR-K112 combines encoder feedback with networked control, making it the choice when position accuracy and real-time error correction matter more than simplicity. Open-loop steppers work well for basic positioning, but this driver adds closed-loop verification and deterministic 100 Mbps EtherCAT synchronisation across multiple axes.

For applications where missed steps or load variations cause position drift, encoder feedback automatically corrects errors without stopping the axis.
On distributed multi-axis machines, EtherCAT networking coordinates motion across separate drivers with 100 Mbps deterministic timing, eliminating sync delays between axes.
In confined or panel-mount spaces, the 74 mm x 140 mm x 31 mm body and DIP switch configuration simplify integration without custom software setup.
When driving standard 2-phase bipolar steppers up to 4.2A per phase, this controller suits medium-torque automation tasks like precision indexing, labelling, and material handling on shared industrial networks.
