What is a robot gripper?

A robot gripper is an end effector that attaches to a robot arm to grasp and hold objects during automation tasks. The SoftGripping Engineering Kit SG.AP.B6 is a modular pneumatic soft gripper with six silicone fingers designed to handle delicate items like food, eggs, and fragile components.

What are grippers used for?

Grippers are used in pick-and-place automation, packaging, assembly, and material handling across industries. This soft gripper is optimized for high-speed automation of fragile and irregular items in food processing, packaging, and medical assembly environments.

Will the SG.AP.B6 work with my robot arm?

The SG.AP.B6 mounts directly to robot arms via ISO-standard flange and is compatible with ABB, KUKA, Universal Robots, and Fanuc platforms that use ISO interfaces. The kit includes all mounting hardware needed for direct integration.

How much grip force does each finger provide?

Each of the six silicone actuator fingers delivers 5 N of grip force, providing gentle contact protection suitable for delicate items like strawberries, eggs, and medicines without causing damage.

Can I reconfigure the number of fingers?

Yes, the modular slot-plate architecture allows you to configure two, three, four, or six fingers with adjustable spacing to fit varied part shapes and adapt quickly to product changeovers.

What pneumatic pressure does this gripper require?

The SG.AP.B6 operates at -0.3 to 1.0 bar pneumatic pressure and comes complete with pneumatic lines, connections, and adjustment tools for setup and pressure tuning.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockDelicate Grip

SoftGripping Engineering Kit SG.AP.B6 Soft Gripper

Name: SoftGripping Engineering Kit SG.AP.B6 Soft Gripper
Brand: SoftGripping
SKU: 3106
Price: 2495 USD
Availability: InStock

SoftGripping

$2,495.00

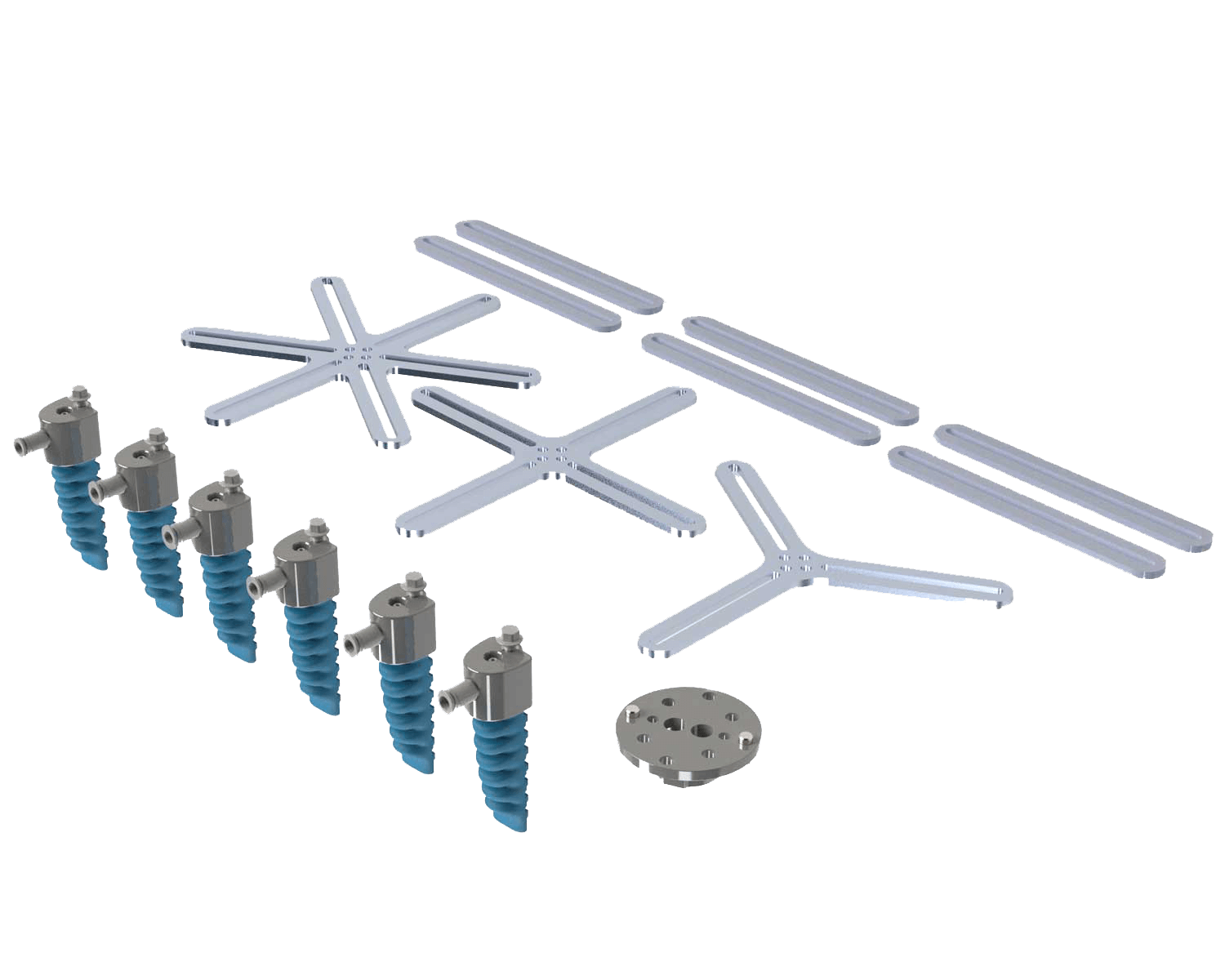

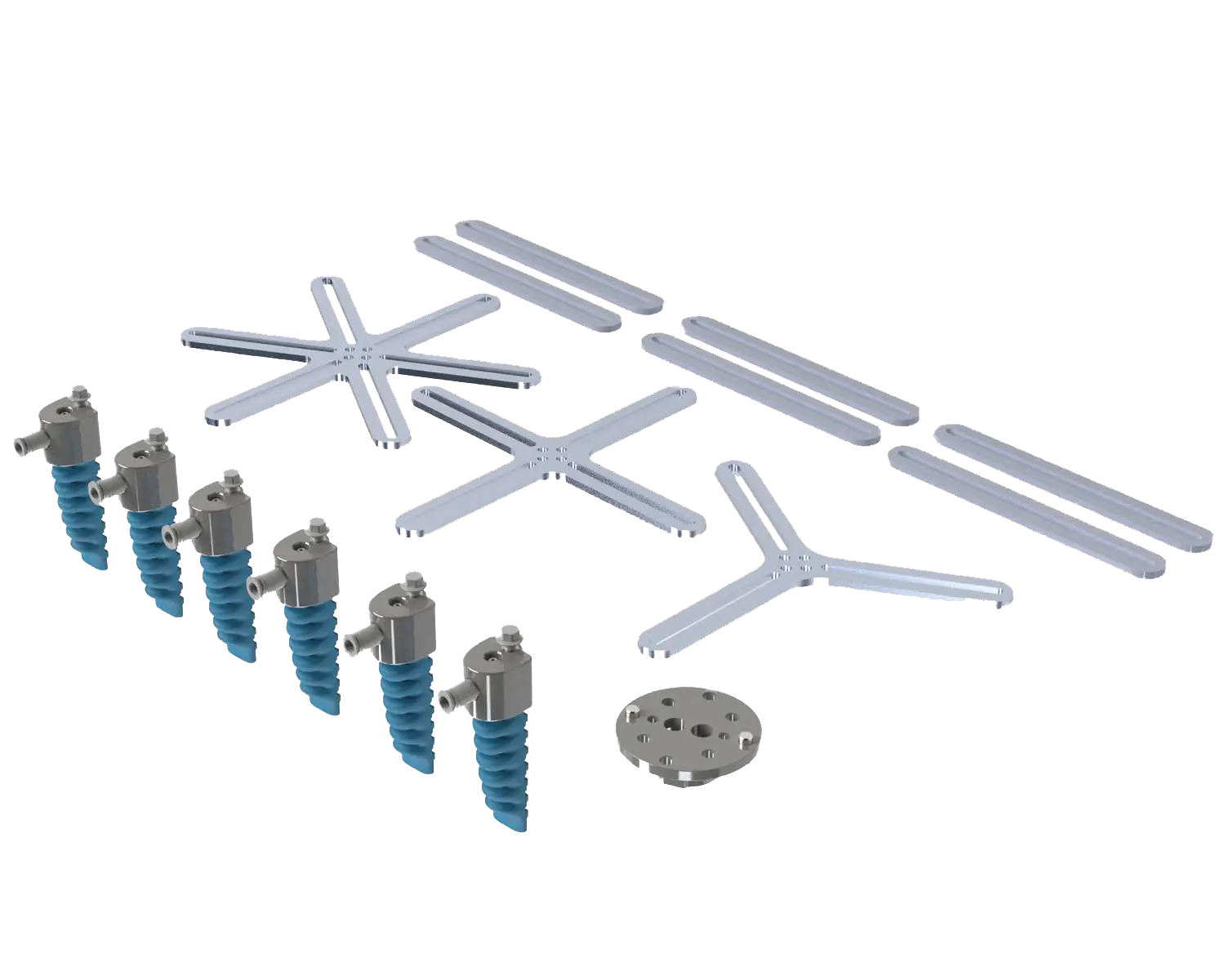

Modular pneumatic gripper kit with six reconfigurable silicone fingers for adapting grip geometry to fragile and irregular components. Mount fingers to slotted plates in any configuration, adjust positioning without tools, and integrate directly into automated cells with included ISO-compatible robot flanges and pneumatic lines.

Overview:

SoftGripping Engineering Kit SG.AP.B6 Soft Gripper is a modular pneumatic soft gripper for automated handling of fragile and irregular items in food processing, packaging, and medical assembly environments.

Headline Specifications:

Six silicone actuator fingers
Operating pressure: -0.3 to 1.0 bar
Grip force per finger: 5 N
Total weight: 1 kg
ISO-standard robot flange for mounting

Design and Features:

Modular slot-plate architecture allows rapid finger repositioning and flexible gripper geometry

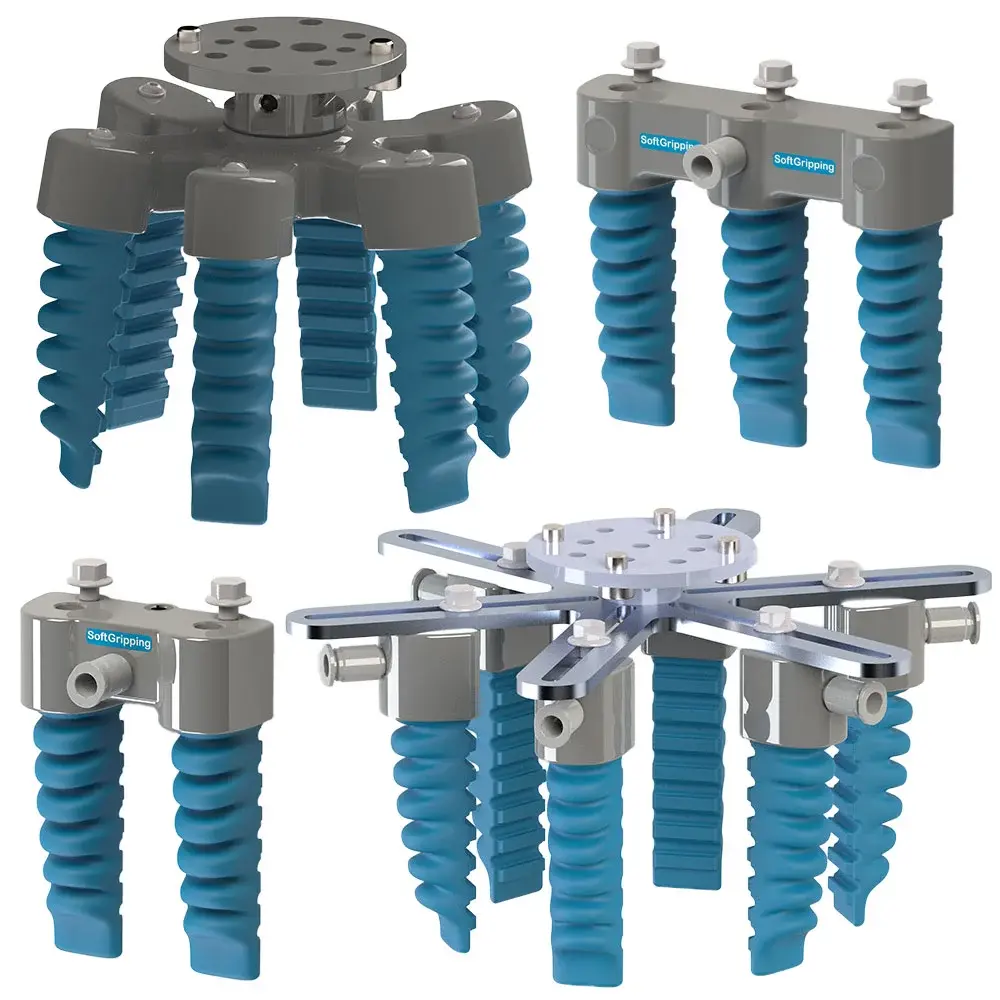

Supports two, three, four, and six-finger configurations, with adjustable spacing to fit varied part shapes
Kit includes pneumatic lines and connections, adjustment tools, mounting hardware, and ISO flange
Silicone fingers prevent damage to sensitive items and are suitable for food contact

Performance and Applications:

Gentle and stable gripping, optimized for delicate workpieces and high-speed pick-and-place automation
Adaptable to cycle time and product changeover demands in dynamic production settings

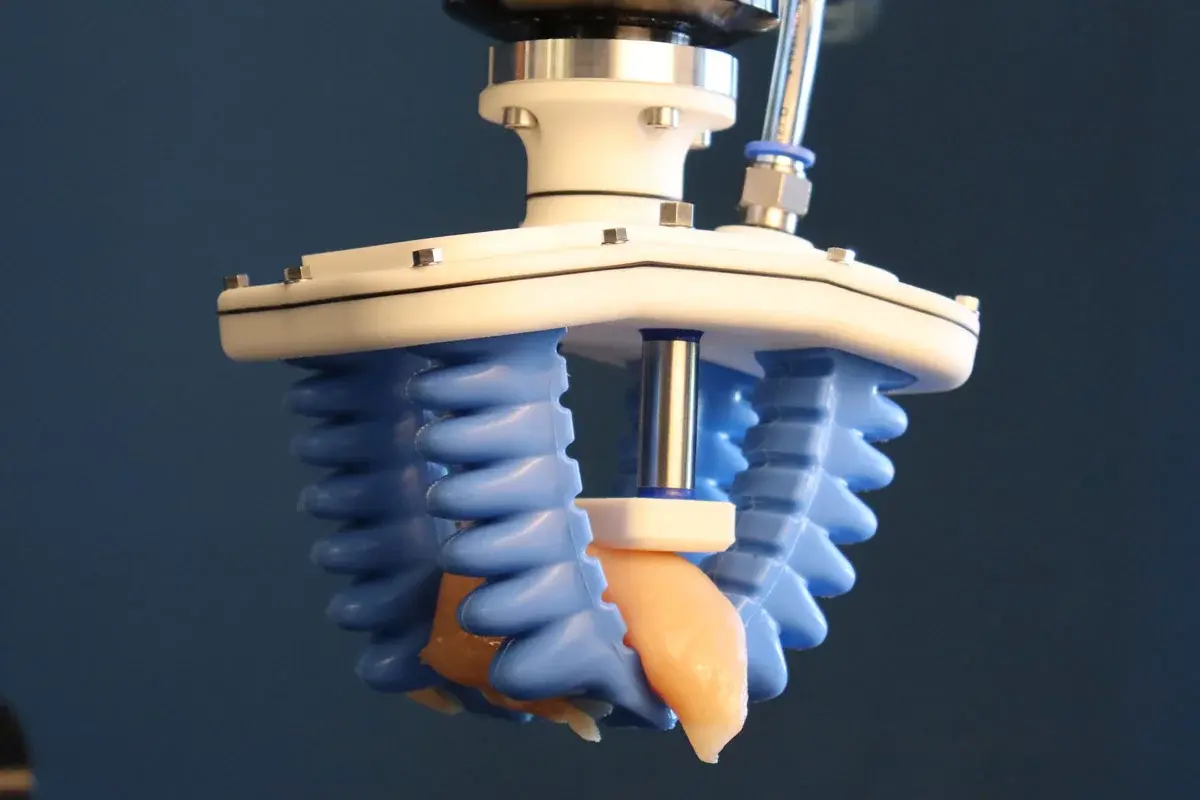

Proven for handling strawberries, apples, figs, mandarins, eggs, medicines, and fragile components

Compatibility:

Mounts to robot arms using ISO-standard flanges
Compatible with common industrial robot platforms (ABB, KUKA, Universal Robots, Fanuc) with ISO interfaces
Direct integration into end effector, pneumatic system, and robotic tool families

Weight1 kg

Stroke per jaw999 mm

Max Gripping force999 N

Recommended workpiece weight: 999 kg
Model: SG.AP.B6
Total Weight: 1 kg
Mounting Interface: ISO-compatible robot flanges
Workpiece Material: Fragile components
Irregular components
Delicate workpieces
Applications: Food automation
Packaging lines
Medical product assembly

Build custom gripper geometry fast with modular slot-plate architecture and six silicone fingers
Handles delicate food, eggs, medicine and fragile components in high-speed pick-and-place automation
Six silicone actuator fingers deliver 5 N grip force per finger, gentle contact protection
Configure two, three, four, or six fingers with adjustable spacing to fit varied part shapes
Mounts directly to robot arms via ISO-standard flange compatible with ABB, KUKA, Universal Robots, Fanuc
Operates at -0.3 to 1.0 bar pneumatic pressure with included pneumatic lines and adjustment tools
Lightweight design at 1 kg total weight, food-contact silicone suitable for packaging and medical assembly

: A robot gripper is an end effector that attaches to a robot arm to grasp and hold objects during automation tasks. The SoftGripping Engineering Kit SG.AP.B6 is a modular pneumatic soft gripper with six silicone fingers designed to handle delicate items like food, eggs, and fragile components.
: Grippers are used in pick-and-place automation, packaging, assembly, and material handling across industries. This soft gripper is optimized for high-speed automation of fragile and irregular items in food processing, packaging, and medical assembly environments.
: The SG.AP.B6 mounts directly to robot arms via ISO-standard flange and is compatible with ABB, KUKA, Universal Robots, and Fanuc platforms that use ISO interfaces. The kit includes all mounting hardware needed for direct integration.
: Each of the six silicone actuator fingers delivers 5 N of grip force, providing gentle contact protection suitable for delicate items like strawberries, eggs, and medicines without causing damage.
: Yes, the modular slot-plate architecture allows you to configure two, three, four, or six fingers with adjustable spacing to fit varied part shapes and adapt quickly to product changeovers.
: The SG.AP.B6 operates at -0.3 to 1.0 bar pneumatic pressure and comes complete with pneumatic lines, connections, and adjustment tools for setup and pressure tuning.

Soft gripper vs rigid parallel gripper or vacuum pickup:

Choose this modular soft gripper when you need gentle, adaptive handling of delicate or irregular items. Unlike rigid parallel grippers that can crush soft products, or vacuum pickups that struggle with porous materials, silicone fingers conform to part shape and apply low contact force.

For strawberries, apples, eggs, or medicine bottles, the food-contact silicone and 5 N per-finger grip prevent bruising and contamination where hard jaws or suction would fail.
On product changeovers, reconfigure from two to six fingers in the slot-plate architecture without tool swaps, cutting changeover time versus buying separate grippers.
In compact pick-and-place cells where payload matters, the 1 kg total weight leaves more arm capacity for parts and speed compared to heavier parallel or servo grippers.
At low pneumatic pressure (0.3 to 1.0 bar), gentle gripper operation suits high-speed food lines and medical assembly where cycle time and part safety both drive ROI.
