Is the SG.BP.1V.C4 compatible with SoftGripper end-effectors?

The SoftGripping SG.BP.1V.C4 is fully compatible with the SoftGripper family of grippers and designed specifically to regulate vacuum and pressure for SoftGripper end-effectors. It connects via pneumatic interface and M12 signal connector for seamless integration.

What pneumatic input pressure does the SG.BP.1V.C4 require?

The SG.BP.1V.C4 accepts input pressure between 3 to 8 bar via a 10 mm diameter pneumatic interface. Output vacuum ranges from -0.4 to 1.5 bar for controlled gripper finger spreading.

How fast can the SG.BP.1V.C4 cycle for pick-and-place?

The SG.BP.1V.C4 reaches 90 cycles per minute in high-speed pick-and-place applications. It uses internal ejector bursts rather than continuous pumps to minimise cycle time and air consumption.

How do I adjust vacuum and pressure settings on the SG.BP.1V.C4?

Connect the unit via USB-C to a PC to tune ramp timing, boost pressure, and pressure curves through the supplied software. This allows real-time adjustment and custom pressure profile shaping to optimise gripper response.

What power supply does the SG.BP.1V.C4 need?

The SG.BP.1V.C4 runs on 24 VDC at 0.12 A continuous duty with its solenoid valve architecture. It is designed for reliable operation in industrial production environments.

What temperature range can the SG.BP.1V.C4 operate in?

The SG.BP.1V.C4 operates in environments from 0 degrees Celsius to 50 degrees Celsius. It is suitable for food, electronics handling, and automated machine tending applications within this range.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockEnergy Efficient

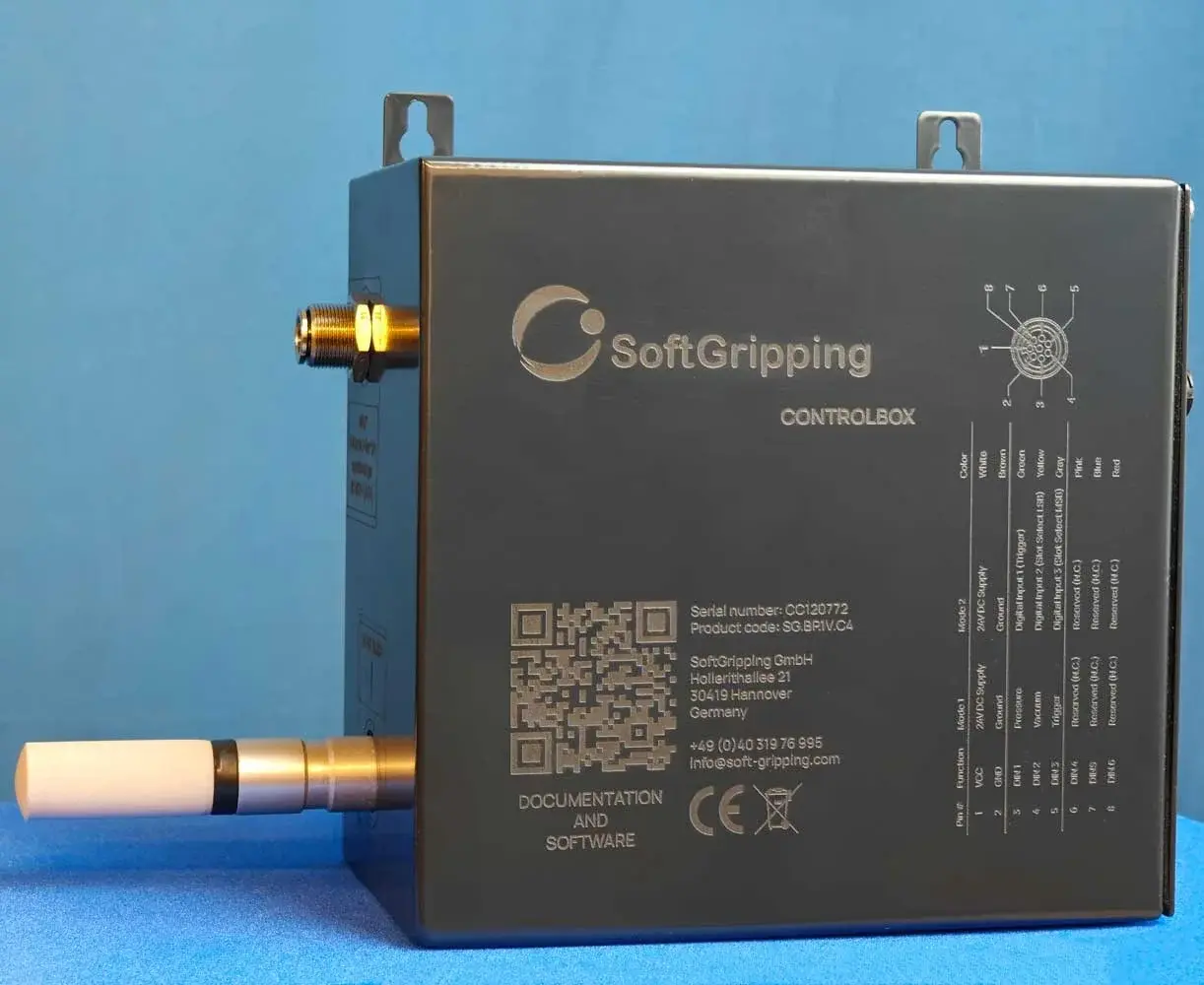

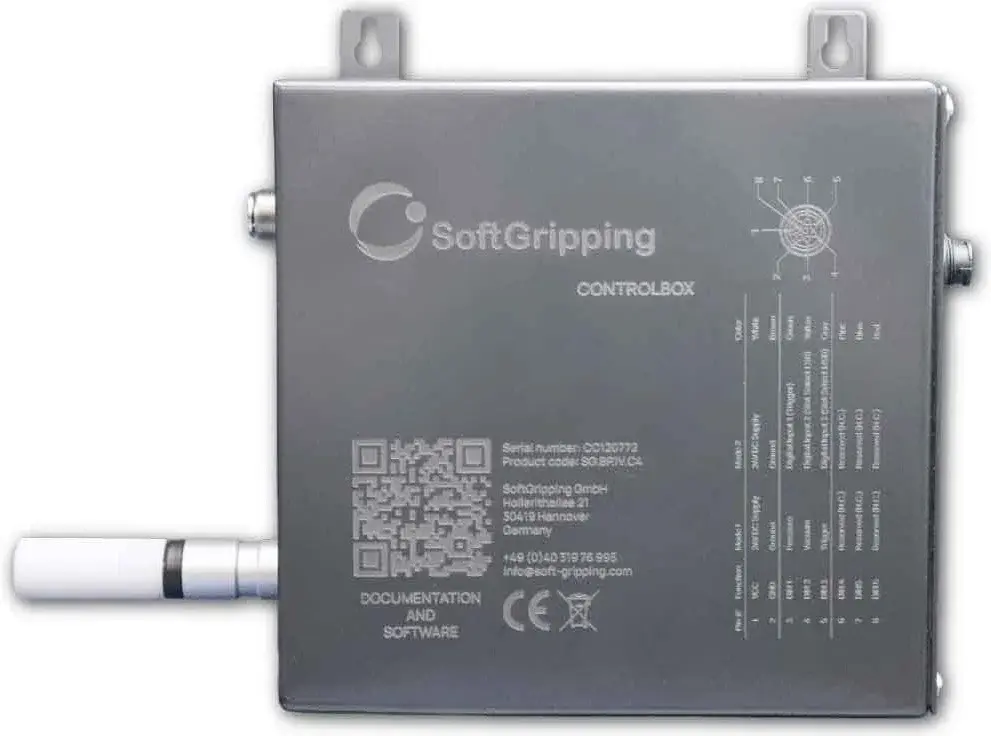

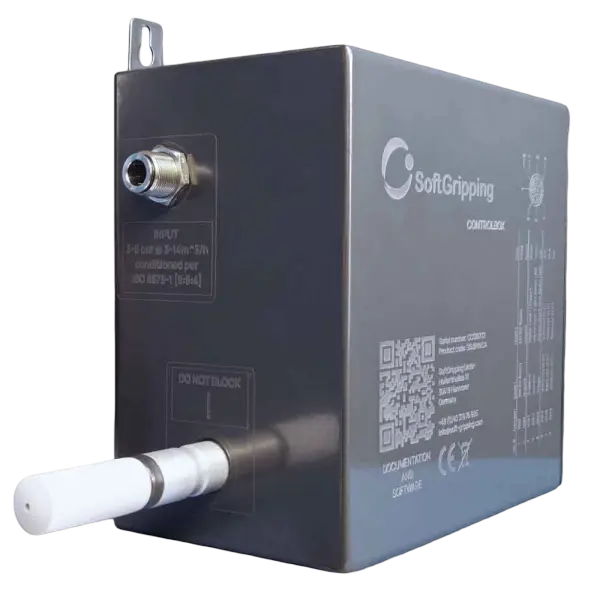

SoftGripping SG.BP.1V.C4 Vacuum Control Unit

Name: SoftGripping SG.BP.1V.C4 Vacuum Control Unit
Brand: SoftGripping
SKU: 3788
Price: 4495 USD
Availability: InStock

SoftGripping

$4,495.00

Pneumatic control unit for SoftGripper end-effectors delivering up to 90 cycles per minute. Features USB-C software interface for fine pressure tuning, internal vacuum ejector for energy-efficient finger spreading, and M12 industrial connector. Reduces air consumption and extends gripper life in high-speed pick-and-place and assembly applications.

Pneumatic Vacuum Control Unit for Robotic Grippers:

SoftGripping SG.BP.1V.C4 is an industrial vacuum control unit engineered for precise pneumatic control of SoftGripper end-effectors in automated production and machine tending applications.

Payload: optimised for high-speed gripper actuation up to 90 cycles per minute
Dimensions: 120 x 220 x 320 mm
Power requirement: 24 VDC at 0.12 A

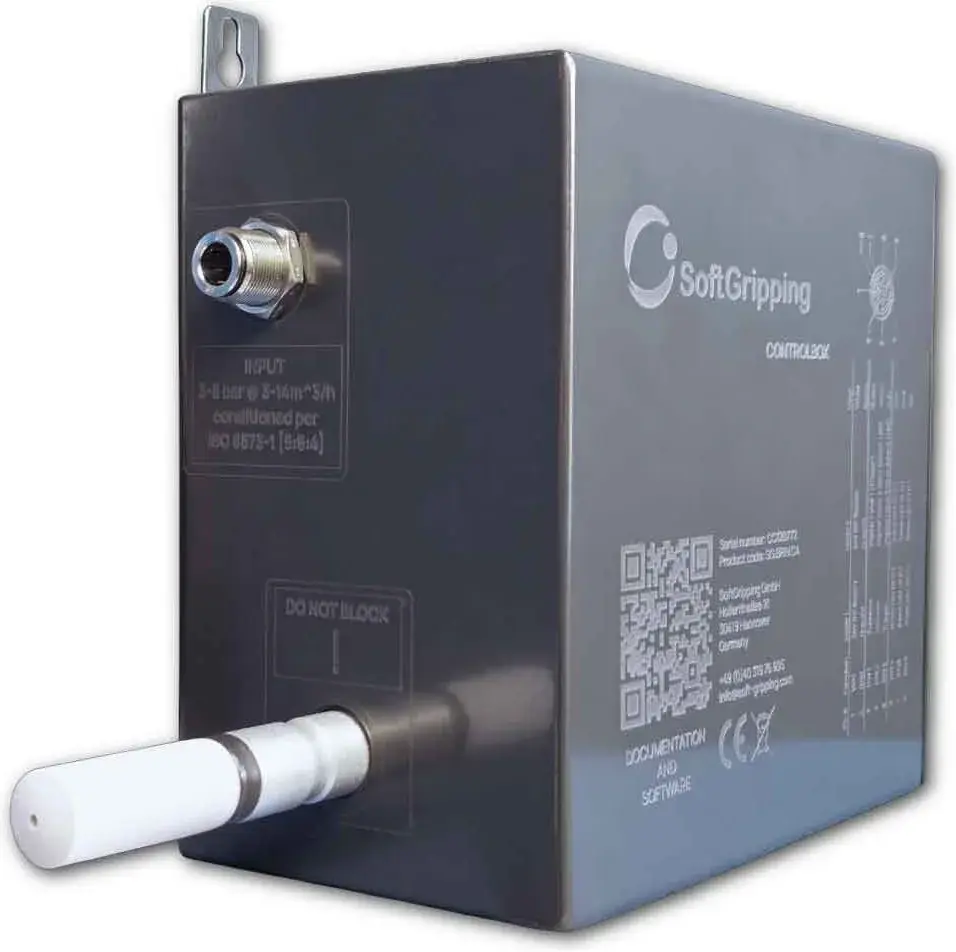

Pneumatic interface: 10 mm Ø, input pressure 3–8 bar
Operating temperature range: 0 °C to 50 °C
Output vacuum: -0.4 to 1.5 bar

Integration and Compatibility:

USB-C software interface enables real-time adjustment of ramp timing, boost pressure, and pressure curves to optimise pneumatic response for SoftGripper fingers.
Continuous-duty solenoid valve architecture supports rapid cycles and industrial durability.
Fully compatible with SoftGripping family grippers and standard pneumatic accessories. For related systems see SoftGripper end-effectors and pneumatic vacuum pumps.

Application Areas:

High-speed pick-and-place
Food and electronics handling
Automated industrial controls

Setup and Operation:

Connect via USB-C to PC for software adjustments.
Connect factory signal lines to M12 connector.
Follow provided documentation for installation and calibration.

Performance Benefits:

The SG.BP.1V.C4 vacuum control unit utilises an internal ejector to generate vacuum with short bursts of compressed air, minimising cycle time and air consumption compared to continuously running vacuum pumps. Fine pressure profiling protects SoftGripper finger longevity in demanding environments, maximising throughput while maintaining component reliability and reducing operational stress.

Dimensions120 x 220 x 320 mm

Maximum Cycle Rate90 cycles per minute

Interface: USB-C software interface
Operational Speed: 90 cycles per minute
Power Requirement: 24 VDC at 0.12 A
Vacuum Generation: via internal ejector
Pneumatic Compatibility: SoftGripper family grippers

Regulates vacuum and pressure precisely for SoftGripper end-effectors
Reaches 90 cycles per minute in high-speed pick-and-place
Slashes air consumption with internal ejector bursts, not continuous pumps
Tune ramp timing, boost pressure and curves via USB-C software
Shape pressure profiles to eliminate spikes, extend gripper finger life

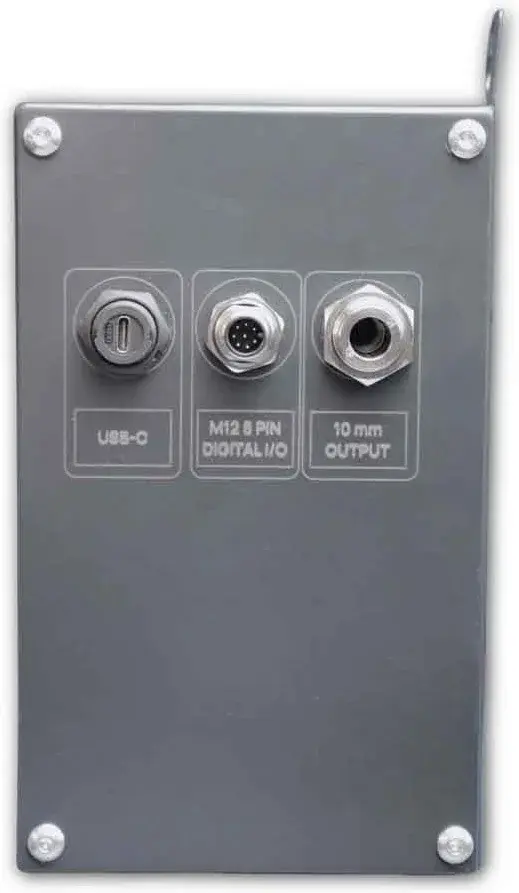

Integrates factory automation via M12 8-pin connector
Runs continuous duty on 24 VDC at 0.12 A with solenoid valve
Accepts 3 to 8 bar input pressure via 10 mm Ø pneumatic interface
Delivers -0.4 to 1.5 bar output vacuum for controlled finger spreading
Also integrates with standard pneumatic accessories.
Software interface allows adjustment of ramp timing, boost pressure, and pressure curves for fine-tuned pneumatic control.
Solenoid valve architecture is optimized for continuous duty and industrial durability.
M12 signal connector enables rapid integration with factory automation systems.

: The SoftGripping SG.BP.1V.C4 is fully compatible with the SoftGripper family of grippers and designed specifically to regulate vacuum and pressure for SoftGripper end-effectors. It connects via pneumatic interface and M12 signal connector for seamless integration.
: The SG.BP.1V.C4 accepts input pressure between 3 to 8 bar via a 10 mm diameter pneumatic interface. Output vacuum ranges from -0.4 to 1.5 bar for controlled gripper finger spreading.
: The SG.BP.1V.C4 reaches 90 cycles per minute in high-speed pick-and-place applications. It uses internal ejector bursts rather than continuous pumps to minimise cycle time and air consumption.
: Connect the unit via USB-C to a PC to tune ramp timing, boost pressure, and pressure curves through the supplied software. This allows real-time adjustment and custom pressure profile shaping to optimise gripper response.
: The SG.BP.1V.C4 runs on 24 VDC at 0.12 A continuous duty with its solenoid valve architecture. It is designed for reliable operation in industrial production environments.
: The SG.BP.1V.C4 operates in environments from 0 degrees Celsius to 50 degrees Celsius. It is suitable for food, electronics handling, and automated machine tending applications within this range.

Pneumatic vacuum control versus continuous pump systems:

The SG.BP.1V.C4 regulates vacuum for SoftGripper end-effectors using brief ejector bursts instead of continuous pumps, cutting air consumption while hitting 90 cycles per minute. Choose this when you need precise pressure profiling, fast cycle rates, and lower energy draw on shared pneumatic lines.

For high-speed pick-and-place on delicate parts, USB-C software tuning lets you shape pressure curves to eliminate spikes and extend gripper finger life without slowing the line.
In food or electronics handling with tight cycle budgets, the internal ejector design uses compressed air in short bursts, freeing pump capacity and reducing continuous motor load on your facility air.
On shared pneumatic systems accepting 3 to 8 bar input, the unit's solenoid architecture runs continuous duty at just 0.12 A, 24 VDC, so it fits alongside other automation without oversizing infrastructure.
When factory automation requires real-time feedback, the M12 8-pin connector and USB-C interface integrate directly into cell controls to adjust ramp timing and boost pressure on the fly.
