Will the SMC ZXPE5 work with my UR cobot without an air compressor?

The SMC ZXPE5 generates vacuum internally with an integrated pump, so it operates without any external compressed air supply or compressor. This eliminates the need for pneumatic infrastructure and reduces installation complexity.

What's the maximum gripping force of the SMC ZXPE5 electric vacuum gripper?

The SMC ZXPE5 delivers up to 65 N of gripping force, making it suitable for secure handling of small to medium parts in pick-and-place and packaging applications.

How much does the SMC ZXPE5 weigh and will it overload my robot's flange?

The gripper weighs just 0.556 kg with all components integrated into one compact unit, so it adds minimal load to your collaborative robot's wrist. It mounts directly to an ISO 9409-1-50-4-M6 flange with two clamp screws for tool-change readiness.

What UR robot models is the SMC ZXPE5 compatible with?

The SMC ZXPE5 is compatible with the UR3e, UR5e, UR10e, and UR16e collaborative robots. It connects via an M8 connector for straightforward installation.

Can the SMC ZXPE5 detect if a part has been picked up?

The gripper includes a built-in pressure sensor that detects parts instantly and provides real-time feedback through a 360-degree status indicator for process monitoring and diagnostics.

What suction cup sizes work with the SMC ZXPE5?

The SMC ZXPE5 supports suction cups from 8 mm to 32 mm in diameter, with material options including NBR, silicone, FKM, and urethane to handle flexible or irregular surfaces.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockAir-Free

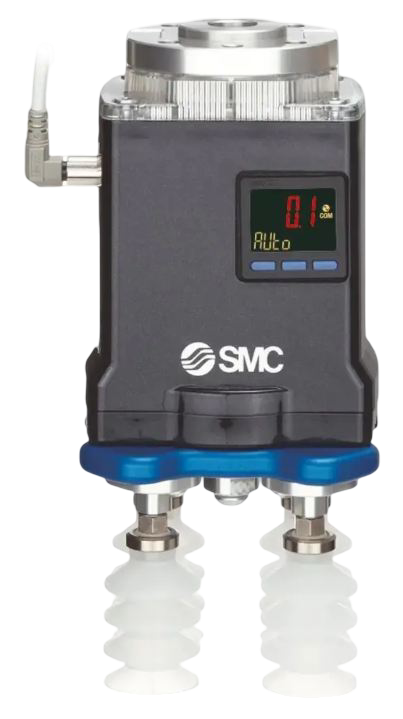

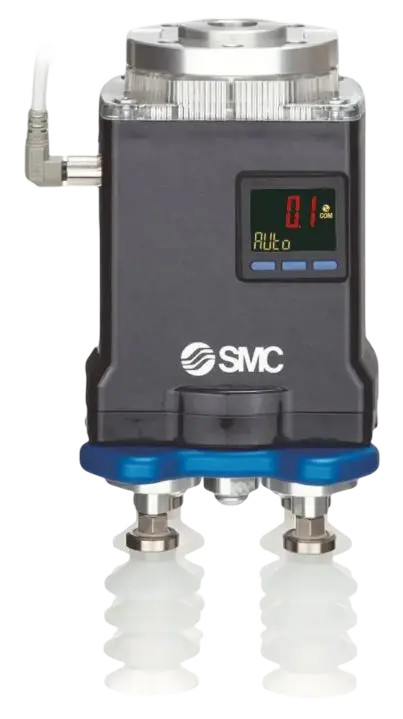

SMC ZXPE5 Electric Vacuum Gripper for UR Cobots, 65 N

Name: SMC ZXPE5 Electric Vacuum Gripper for UR Cobots, 65 N
Brand: SMC
SKU: 3726
Price: 6800 USD
Availability: InStock

SMC

$6,800.00

SMC ZXPE5 is a UR-certified all-in-one electric vacuum gripper with integrated pump, valve, and sensor delivering 5 N grip force. Weighs 556 g, mounts to ISO 9409-1-50-4-M6 flange, operates without external air, and supports suction cups 8–32 mm across flat, ribbed, bellows, and multi-bellows geometries. Ideal for pick-and-place, packaging, and flexible surface handling on UR3e, UR5e, UR10e, and UR16e cobots.

The SMC ZXPE5 electric vacuum gripper is a compact end effector designed for Universal Robots UR series collaborative robots, providing efficient pick-and-place and handling solutions without external compressed air.

Features:

Integrated vacuum pump, vent valve, pressure sensor, and suction cup in a single unit weighing 556 grams
Delivers up to 65 N gripping force
Mounts to ISO 9409-1-50-4-M6 flange with tool change enabled by two clamp screws
Connects via M8 connector for easy installation
Three selectable power modes for optimized energy consumption
360-degree status indicator and built-in diagnostics for real-time process monitoring

Specifications:

Compatible with UR3e, UR5e, UR10e, and UR16e collaborative robots
Operates without external compressed air
Supports suction cups from 8 mm to 32 mm diameter
Material options: NBR, silicone, FKM, and urethane
Maximum ambient temperature: 40°C

Applications:

Ideal for pick-and-place, small-parts packaging, labeling, palletizing, and handling flexible or irregular surfaces
Integrated vacuum generation minimizes system complexity and footprint compared to pneumatic alternatives
Suitable for workpieces requiring versatile suction cup configurations and materials

Comparative Advantages:

Electric vacuum gripper design eliminates need for external vacuum generators or compressed air supply
Reduces installation time and maintenance compared to pneumatic vacuum grippers
Lower overall system weight and footprint for collaborative robot applications

Weight0.556 kg

Weight556 g

Max Gripping force65 N

Propulsion Method: Electric
Max. ambient temperature: 40 ℃
Payload: 65 N
Mounting Interface: ISO 9409-1-50-4-M6
Reach: No value provided
Maximum Ambient Temperature: 40°C

Grips varied parts without air lines, electric vacuum for UR Cobots
Generates vacuum internally, no external compressor needed
Pump, valve, sensor, cups integrated in one compact unit
Holds up to 65 N, secures parts reliably
Weighs just 0.556 kg, minimal flange load
Detects parts instantly with built-in pressure sensor
Mounts to ISO 9409-1-50-4-M6 flange, tool-change ready
Three power modes optimize energy consumption per task
360-degree status indicator enables real-time process monitoring

: The SMC ZXPE5 generates vacuum internally with an integrated pump, so it operates without any external compressed air supply or compressor. This eliminates the need for pneumatic infrastructure and reduces installation complexity.
: The SMC ZXPE5 delivers up to 65 N of gripping force, making it suitable for secure handling of small to medium parts in pick-and-place and packaging applications.
: The gripper weighs just 0.556 kg with all components integrated into one compact unit, so it adds minimal load to your collaborative robot's wrist. It mounts directly to an ISO 9409-1-50-4-M6 flange with two clamp screws for tool-change readiness.
: The SMC ZXPE5 is compatible with the UR3e, UR5e, UR10e, and UR16e collaborative robots. It connects via an M8 connector for straightforward installation.
: The gripper includes a built-in pressure sensor that detects parts instantly and provides real-time feedback through a 360-degree status indicator for process monitoring and diagnostics.
: The SMC ZXPE5 supports suction cups from 8 mm to 32 mm in diameter, with material options including NBR, silicone, FKM, and urethane to handle flexible or irregular surfaces.

Electric vacuum versus pneumatic air-driven grippers:

The SMC ZXPE5 is an electric vacuum gripper built into one compact unit, eliminating the need for external air compressors or vacuum generators. Choose it over pneumatic alternatives when you want simpler setup, lower maintenance, and minimal footprint on your UR cobot.

No external compressor required. The integrated pump and valve eliminate air-line infrastructure, reducing installation time and workspace clutter.
Lightweight at 0.556 kg with minimal flange load, freeing payload capacity on compact collaborative robots like the UR3e and UR5e.
For pick-and-place on delicate or irregular surfaces, the built-in pressure sensor detects part contact instantly and the three power modes reduce energy waste during hold phases.
Holds up to 65 N grip force. Suitable for small-parts packaging, labeling, and palletizing where consistent, quiet operation matters in shared work cells.
Tool-change ready with ISO 9409-1-50-4-M6 flange. Swap grippers in seconds without reconfiguring air lines or vacuum plumbing.
