In StockGrips 5kg

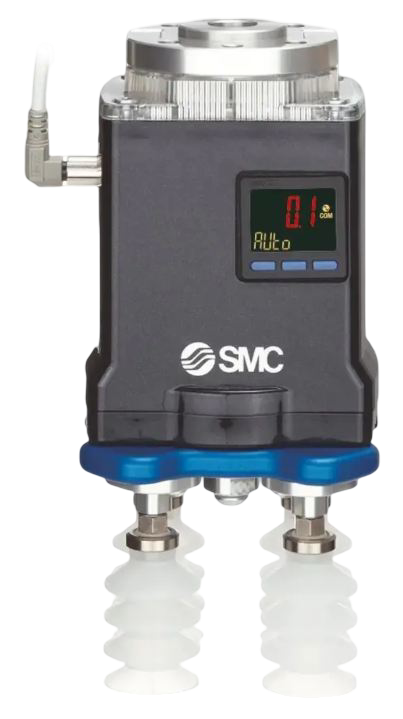

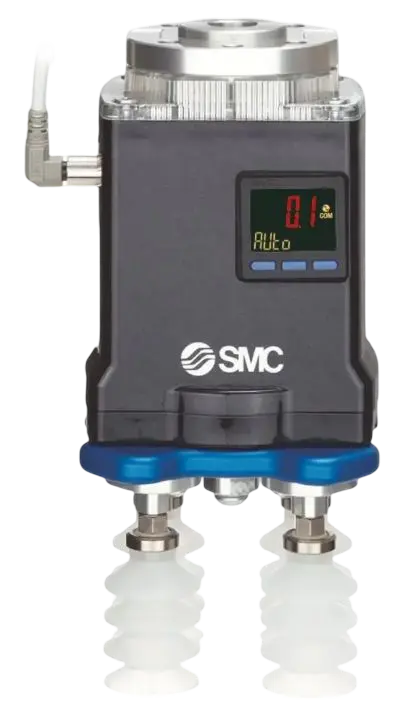

SMC ZXPE5 Electric Vacuum Gripper for UR Cobots, 5 N

SMC

$5,995.00

SMC ZXPE5 is a self-contained electric vacuum gripper with integrated pump, vent valve, pressure sensor, and suction cup that delivers 5 N gripping force in a 0.556 kg unit. UR-certified for UR3e, UR5e, UR10e, and UR16e cobots with M8 plug-and-play connection, it eliminates external air supply and features three power-optimized modes, 360-degree status indicator, and support for multiple suction cup geometries (8-32 mm). Ideal for pick-and-place, packaging, labeling, and handling flexible or uneven surfaces.

SMC ZXPE5 Electric Vacuum Gripper for UR Cobots, 5 N

SMC ZXPE5 electric vacuum gripper is a self-contained robot vacuum gripper designed for Universal Robots cobots in factory automation, integrating vacuum pump, vent valve, sensor, and suction cup for precision pick-and-place and handling tasks.

Specifications:

Maximum gripping force: 5 N
Unit weight: 0.556 kg
Mounting interface: ISO 9409-1-50-4-M6 flange
Maximum ambient operating temperature: 40°C
Plug-and-play installation: M8 connector
Full model number: ZXPE5A011P-25BS-CE

Compatibility:

UR-certified for Universal Robots UR3e, UR5e, UR10e, and UR16e cobots in PNP configuration
ISO 9409 tooling interface allows for rapid tool changes with two clamp screws
Accepts suction cup geometries: flat, ribbed, bellows, thin, and multi-bellows
Cup materials supported: NBR, silicone, FKM, urethane
Cup diameters: 8 mm to 32 mm

Power Modes and Performance:

Three selectable power-optimized modes for energy-efficient operation and tailored grip
Integrated 360-degree status indicator for visual feedback
Internal diagnostics for process monitoring
Self-contained vacuum generation eliminates external compressed air and reduces leak paths

Applications:

Pick-and-place automation
Small-parts packaging
Labeling and palletizing
Handling flexible or uneven surfaces with gentle contact requirements

Installation Guidance:

Plug-and-play with UR cobots via M8 connector
Mount using ISO 9409-1-50-4-M6 flange
Refer to manufacturer documentation for step-by-step installation

Regulatory Compliance:

ZXPE5A011P-25BS-CE carries CE marking

Comparison Context:

Electric vacuum gripper ZXPE5 reduces need for compressed air versus conventional pneumatic grippers
Integrated diagnostics and plug-and-play installation distinguish SMC ZXPE5 from competitor grippers for Universal Robots

Weight0.556 kg

Weight0.556 kg

Max Gripping force65 N

Propulsion Method: Electric
Max. ambient temperature: 40 ℃
Payload: 5 N
Max Ambient Temperature: 40°C
Mounting Interface: ISO 9409-1-50-4-M6
Suction Cup Diameter: 8 mm to 32 mm
Suction Cup Material: NBR
silicone
FKM
urethane

Handles 5 N loads, self-contained electric pump eliminates compressed air dependency
Mounts via ISO 9409-1-50-4-M6 flange for rapid UR cobot integration
Operates reliably to 40°C ambient temperature maximum
Plug-and-play M8 connector connects directly to UR3e, UR5e, UR10e, UR16e cobots
Three power modes optimize energy use and grip consistency
Integrated 360-degree status indicator provides real-time visual feedback on gripper state
Accepts cup diameters 8 mm to 32 mm in flat, ribbed, bellows, thin, multi-bellows geometries

: The ZXPE5A011P-25BS-CE is UR-certified and connects via plug-and-play M8 connector directly to UR3e, UR5e, UR10e, and UR16e cobots. It mounts using the ISO 9409-1-50-4-M6 flange for rapid integration.
: The SMC ZXPE5 accepts cup diameters from 8 mm to 32 mm in flat, ribbed, bellows, thin, and multi-bellows geometries. Supported cup materials include NBR, silicone, FKM, and urethane.
: The ZXPE5 has a self-contained electric pump that eliminates the need for external compressed air, reducing dependency on pneumatic systems and leak paths. This makes setup simpler and more reliable.
: The ZXPE5 handles a maximum gripping force of 5 N, making it suitable for light pick-and-place and small-parts handling tasks.
: The SMC ZXPE5 operates reliably up to a maximum ambient temperature of 40°C.
: The ZXPE5 includes an integrated 360-degree status indicator that provides real-time visual feedback on the gripper state, plus internal diagnostics for process monitoring.

Electric vacuum gripper versus pneumatic or mechanical alternatives:

The ZXPE5 is a self-contained electric vacuum gripper built for UR cobots. Unlike pneumatic vacuum grippers that depend on factory compressed air lines, the ZXPE5 integrates its own electric pump, eliminating air dependency and reducing leak points. It is lighter (0.556 kg) and suited to delicate or small-part handling where grip force under 5 N is sufficient.

For light parts under 5 N in confined collaborative cells, the self-contained pump removes the need for external air infrastructure and tool-change downtime.
On flexible or irregular surfaces like soft packaging or labels, the plug-and-play 360-degree status indicator and three power-optimized modes allow real-time grip feedback and energy tuning per task.
On UR3e through UR16e lines, the M8 connector and ISO 9409 flange enable faster tool changes than manual clamp systems, keeping cycle time tight on pick-and-place and small-parts palletizing.
In high-temperature or outdoor-adjacent environments above 40 ambient, a pneumatic or mechanical gripper rated for higher heat may be more reliable than this electric unit.
