Will the SMC ZXPE5A011P-25BN-CE work with my UR cobot?

The SMC ZXPE5A011P-25BN-CE is certified for direct plug-and-play integration with UR3e, UR5e, UR10e, and UR16e via M8 connector. It mounts using the ISO 9409-1-50-4-M6 flange interface.

How does a vacuum gripper work?

A vacuum gripper uses suction to hold parts by creating a pressure difference between atmospheric air and the sealed area under the suction cup. The SMC ZXPE5 generates this vacuum with a built-in electric pump rather than requiring an external compressed air supply.

Does this electric vacuum gripper need an air compressor?

No air compressor is needed because the SMC ZXPE5 has a built-in electric vacuum pump that eliminates the need for pneumatic tubing or external air supply.

What gripping force does the SMC ZXPE5 provide?

The SMC ZXPE5 delivers a maximum gripping force of 5 N, making it suitable for delicate and flexible materials where gentle handling is required.

What is the difference between a vacuum gripper and a pneumatic gripper?

Vacuum grippers like the SMC ZXPE5 use an integrated electric pump and require no external air supply, while pneumatic grippers depend on compressed air lines. Electric vacuum grippers offer simpler installation with less tubing routing and maintenance.

What materials and parts can this vacuum gripper handle?

The SMC ZXPE5 handles flexible materials and uneven surfaces that rigid mechanical grippers cannot grip, making it ideal for applications like pick-and-place, labeling, packaging, and palletizing of delicate items.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockISO 9409 Compliant

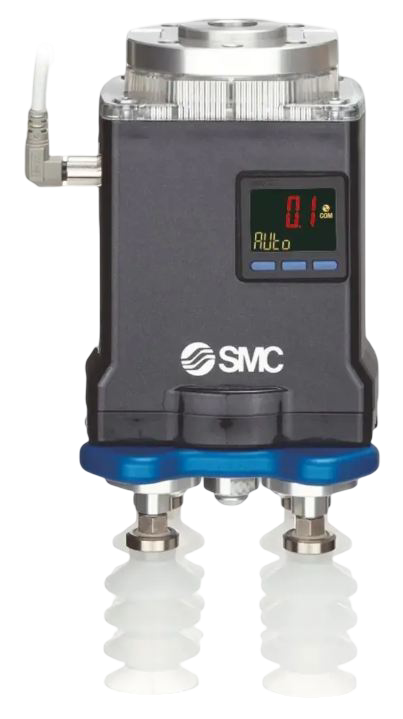

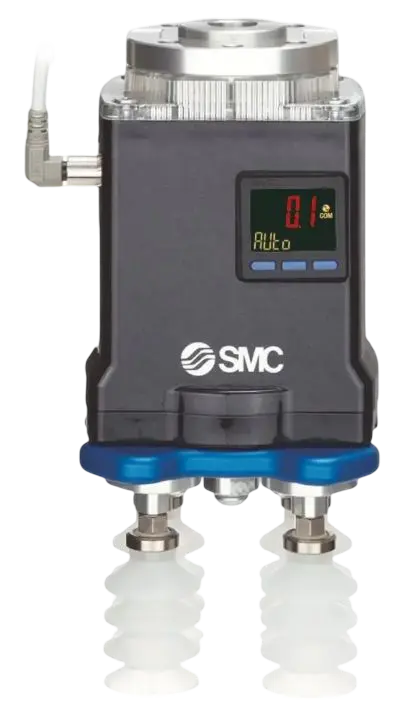

SMC ZXPE5 Electric Vacuum Gripper for Universal Robots

Name: SMC ZXPE5 Electric Vacuum Gripper for Universal Robots
Brand: SMC
SKU: 3724
Price: 6100 USD
Availability: InStock

SMC

$6,100.00

All-in-one electric vacuum gripper for UR3e, UR5e, UR10e and UR16e collaborative robots. Integrates pump, valve, pressure sensor and suction cup in a 556 g unit with M8 plug-and-play connection. Delivers up to 5 N gripping force, eliminates external air supply, and supports suction cups from 8 mm to 32 mm diameter in multiple materials for pick-and-place, packaging and palletizing.

SMC ZXPE5 Electric Vacuum Gripper for Universal Robots:

SMC ZXPE5A011P-25BN-CE is an electric vacuum gripper engineered for integration with Universal Robots collaborative robot arms in flexible automation applications.

Headline Specifications:

Maximum gripping force: 5 N
Weight: 0.556 kg
Mounting interface: ISO 9409-1-50-4-M6 flange
Operating temperature: Up to 40 °C

Key Advantages:

No external compressed air supply needed, offering a streamlined electric vacuum gripper alternative to pneumatic models
Plug-and-play installation via M8 connector for Universal Robots (UR3e, UR5e, UR10e, UR16e)
Integrated vacuum pump, vent valve, pressure sensor, and suction cup in a compact unit
Reduced pneumatic tubing for applications with limited routing space
Multiple power-optimized modes for operational flexibility
360-degree status indicator and built-in diagnostics for real-time process monitoring

Comparison to Alternatives:

Electric vacuum grippers like SMC ZXPE5A011P-25BN-CE require no external air supply, making installation simpler than pneumatic grippers
Vacuum grippers are ideal for gentle handling and adaptable gripping, compared to mechanical grippers which are suited for rigid parts

Compatibility and Applications:

UR-certified for use with Universal Robots UR3e, UR5e, UR10e, and UR16e
Accommodates suction cups from 8 mm to 32 mm diameter with flat, ribbed, bellows, thin, and multi-bellows shapes in NBR, silicone, FKM, and urethane
Suitable for pick-and-place, labeling, small-parts packaging, and palletizing of flexible materials and uneven surfaces

Frequently Asked Questions:

Is SMC ZXPE5A011P-25BN-CE compatible with Universal Robots? Yes, certified for direct plug-and-play integration with UR3e, UR5e, UR10e, and UR16e.
Does SMC ZXPE5A011P-25BN-CE require an external compressed air supply? No, internal vacuum generation eliminates the need for external air.
What types of workpieces and materials can it handle? Suitable for flexible materials, uneven surfaces, and varied packaging and palletizing tasks.
How does electric vacuum gripper performance compare to pneumatic? Electric grippers are easier to install, require less maintenance, and offer comparable vacuum force for lightweight automation tasks.

Weight0.556 kg

Max Gripping force65 N

Propulsion Method: Electric
Max. ambient temperature: 40 °C

Grips delicate parts with 5 N force, ISO 9409-1-50-4-M6 flange mounts to UR cobots
No air compressor needed, built-in electric vacuum pump eliminates pneumatic tubing
Plug-and-play M8 connector works with UR3e, UR5e, UR10e, UR16e instantly
Integrated pump, vent valve, pressure sensor, suction cup all in one compact unit
Handles flexible materials and uneven surfaces that rigid grippers cannot grip
360-degree status indicator and real-time diagnostics monitor every pick cycle
Operates reliably up to 40 °C ambient temperature, weighs just 0.556 kg

: The SMC ZXPE5A011P-25BN-CE is certified for direct plug-and-play integration with UR3e, UR5e, UR10e, and UR16e via M8 connector. It mounts using the ISO 9409-1-50-4-M6 flange interface.
: A vacuum gripper uses suction to hold parts by creating a pressure difference between atmospheric air and the sealed area under the suction cup. The SMC ZXPE5 generates this vacuum with a built-in electric pump rather than requiring an external compressed air supply.
: No air compressor is needed because the SMC ZXPE5 has a built-in electric vacuum pump that eliminates the need for pneumatic tubing or external air supply.
: The SMC ZXPE5 delivers a maximum gripping force of 5 N, making it suitable for delicate and flexible materials where gentle handling is required.
: Vacuum grippers like the SMC ZXPE5 use an integrated electric pump and require no external air supply, while pneumatic grippers depend on compressed air lines. Electric vacuum grippers offer simpler installation with less tubing routing and maintenance.
: The SMC ZXPE5 handles flexible materials and uneven surfaces that rigid mechanical grippers cannot grip, making it ideal for applications like pick-and-place, labeling, packaging, and palletizing of delicate items.

Electric vacuum versus pneumatic gripper for UR cobots:

Choose the SMC ZXPE5 when you need a vacuum gripper without external air lines. It eliminates the compressor, tubing, and maintenance burden of pneumatic models, while delivering the same gentle, adaptive gripping for delicate and flexible parts.

For tight collaborative cells with limited space, the built-in pump and no-tubing design frees layout room and simplifies installation versus pneumatic setups.
For lightweight pick-and-place of delicate items like textiles, films, or food, the 5 N force grips without damage where rigid mechanical grippers would crush.
For uneven or soft surfaces (foam, plastic, rubber), vacuum adapts to shape and contact area in ways fixed-jaw or magnetic grippers cannot.
For plug-and-play deployment on UR3e through UR16e, the M8 connector and integrated sensor require no air supply validation or compressor diagnostics.
For flexible packaging and small-parts labeling workflows, the real-time diagnostics and 360-degree status indicator catch missed picks before defects reach downstream stations.
