Will the SMC ZXPE5 work with my FANUC robot?

The SMC ZXPE5 Electric Vacuum Gripper is designed for FANUC CRX collaborative robots with plug-and-play M8 connectivity and ISO 9409-1-50-4-M6 tool flange mounting. It mounts using only two clamp screws for rapid installation.

How much weight can this gripper hold?

The SMC ZXPE5 delivers up to 5 N of gripping force for reliable handling of small to medium-sized parts. It works well for delicate surfaces and flexible workpieces in pick-and-place and palletizing applications.

Do I need an external air supply for this vacuum gripper?

No external air supply is needed because the SMC ZXPE5 has a built-in electric pump, vent valve, and pressure sensor integrated into the compact 0.556 kg unit. This eliminates installation complexity and reduces maintenance compared to pneumatic alternatives.

What size suction cups come with the ZXPE5?

The SMC ZXPE5 offers suction cup diameters ranging from 8 to 32 mm with multiple shapes and materials available to suit different surface applications.

What temperature can this vacuum gripper operate in?

The SMC ZXPE5 operates reliably in ambient temperatures up to 40°C, making it suitable for collaborative automation environments.

How do I know if the gripper is working properly?

The SMC ZXPE5 features a 360-degree status display and built-in diagnostics that provide real-time process visibility and support troubleshooting for improved uptime.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockFANUC CRX Ready

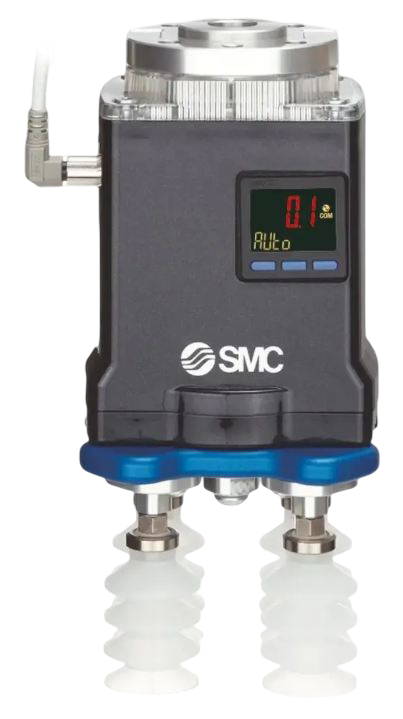

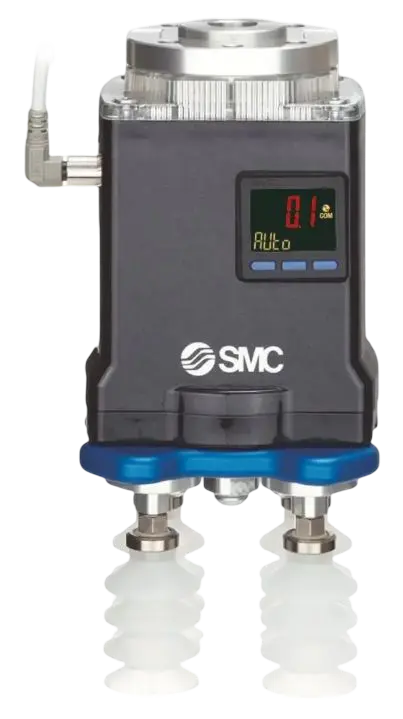

SMC ZXPE5 Electric Vacuum Gripper, 5 N, FANUC

Name: SMC ZXPE5 Electric Vacuum Gripper, 5 N, FANUC
Brand: SMC
SKU: 3632
Price: 6100 USD
Availability: InStock

SMC

$6,100.00

All-in-one electric vacuum gripper for FANUC robots with integrated pump, valve, sensor, and suction cups. Delivers 5 N gripping force, weighs 0.556 kg, and requires no external air supply. M8 plug-and-play connection with PNP compatibility. Suction cup sizes from 8 to 32 mm. ISO 9409-1-50-4-M6 tool flange for rapid changeover. Ideal for pick-and-place, packaging, and handling of flexible or delicate workpieces.

SMC ZXPE5 Electric Vacuum Gripper is a plug-and-play electric end effector designed for FANUC CRX collaborative robots, offering efficient vacuum gripping performance for automation environments.

Features:

Integrated vacuum pump, vent valve, pressure sensor, and suction cups in a compact 0.556 kg unit.
Maximum gripping force: 5 N for reliable handling of small to medium-sized workpieces.
M8 plug-and-play mounting interface with PNP compatibility, simplifying robot integration and rapid tool changeover.
Suction cup options: Diameters from 8 to 32 mm, multiple shapes and materials for varied surface applications.
Integrated vacuum generation eliminates external air supply, reducing installation complexity compared to pneumatic alternatives.
Three selectable operating modes to optimize energy consumption in cycle-intensive applications.
360-degree status display and built-in diagnostics for real-time process visibility and troubleshooting.
ISO 9409-1-50-4-M6 tool flange mounts using only two clamp screws for rapid installation.

Specifications:

Payload: up to 5 N gripping force
Weight: 0.556 kg
Ambient operating temperature: up to 40°C
Mounting: ISO 9409-1-50-4-M6 flange

Applications:

Collaborative robot pick-and-place operations
Packaging and palletizing
Handling flexible, uneven, or delicate surfaces

Comparison & Advantages:

The SMC ZXPE5 provides a fully electric vacuum solution that eliminates external air supply and reduces maintenance compared to conventional pneumatic grippers.
Plug-and-play compatibility with FANUC CRX robots streamlines integration and shortens deployment time over non-standard end effectors.
The built-in diagnostics and status indicators support troubleshooting and on-site maintenance for improved uptime.

Weight0.556 kg

Max Gripping force65 N

Propulsion Method: Electric
Max. ambient temperature: 40°C
Payload: 5 N
Mounting Interface: ISO 9409-1-50-4-M6
Suction Cup Diameter: 8 to 32 mm

Pick delicate surfaces with Ø 8–32 mm cups, multiple shapes and materials for flexible applications
Mount fast using ISO 9409-1-50-4-M6 flange, two clamp screws only
Built-in pump and leak reduction enable stable handling with no external air supply
Gentle on flexible, uneven or delicate workpieces in pick-and-place, packaging and palletizing
Grip up to 5 N reliably for small to medium-sized parts
Weighs just 0.556 kg, compact all-in-one vacuum unit with integrated diagnostics
Operates to 40°C ambient temperature in collaborative automation environments

: The SMC ZXPE5 Electric Vacuum Gripper is designed for FANUC CRX collaborative robots with plug-and-play M8 connectivity and ISO 9409-1-50-4-M6 tool flange mounting. It mounts using only two clamp screws for rapid installation.
: The SMC ZXPE5 delivers up to 5 N of gripping force for reliable handling of small to medium-sized parts. It works well for delicate surfaces and flexible workpieces in pick-and-place and palletizing applications.
: No external air supply is needed because the SMC ZXPE5 has a built-in electric pump, vent valve, and pressure sensor integrated into the compact 0.556 kg unit. This eliminates installation complexity and reduces maintenance compared to pneumatic alternatives.
: The SMC ZXPE5 offers suction cup diameters ranging from 8 to 32 mm with multiple shapes and materials available to suit different surface applications.
: The SMC ZXPE5 operates reliably in ambient temperatures up to 40°C, making it suitable for collaborative automation environments.
: The SMC ZXPE5 features a 360-degree status display and built-in diagnostics that provide real-time process visibility and support troubleshooting for improved uptime.

Electric vacuum versus pneumatic gripper:

Choose the SMC ZXPE5 when you need a self-contained vacuum solution without external air lines or compressors. It contrasts with pneumatic grippers that require shop air supply and separate pump infrastructure, making it ideal for compact collaborative cells and rapid deployment.

For delicate surfaces, flexible materials, or uneven workpieces, the integrated gentle suction with cup diameters from 8 to 32 mm handles pick-and-place and packaging without damage or slipping.
In tight collaborative cells with limited pneumatic infrastructure, the 0.556 kg all-in-one unit with built-in pump eliminates air line routing and reduces clutter.
For small to medium parts up to 5 N grip force, the compact design frees robot payload compared to heavier pneumatic manifold assemblies.
On high-cycle automation lines, three selectable operating modes optimize energy use and reduce idle power draw versus always-on pneumatic systems.
With plug-and-play FANUC compatibility and two-screw ISO 9409-1-50-4-M6 mounting, setup and tool changeover are faster than custom pneumatic installations.
