Will the SMC ZXP-X1 fit my FANUC cobot?

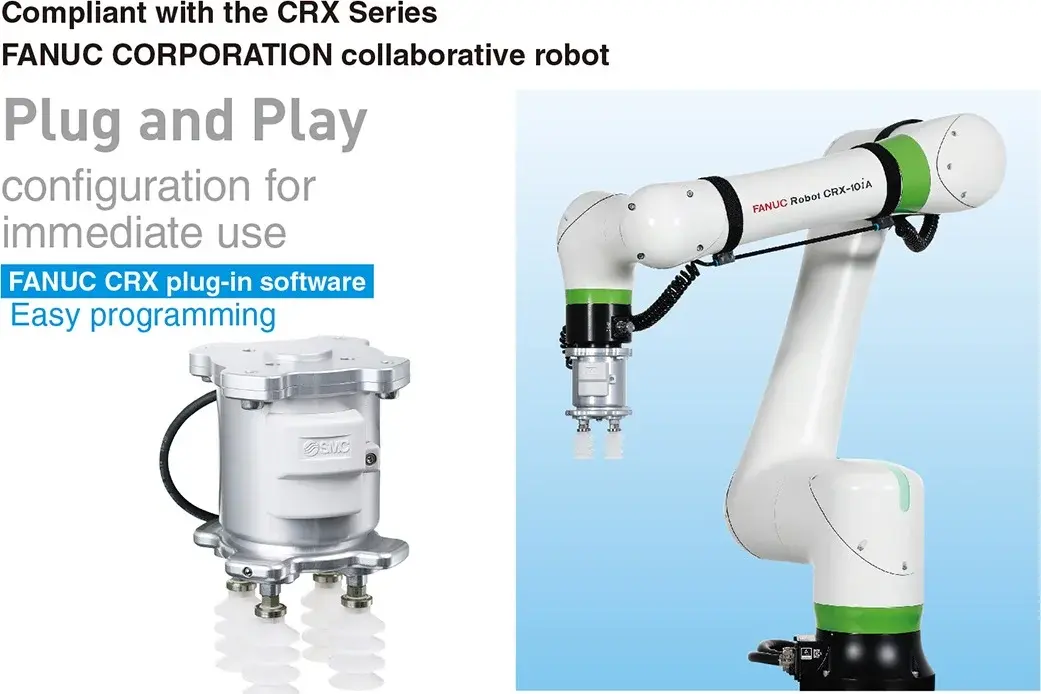

The SMC ZXP-X1 mounts directly to FANUC collaborative robots via the ISO 9409-1-50-4-M6 interface. It also works with Universal Robots, Omron/Techman, and Yaskawa cobots using the same standard flange.

How much weight can the SMC ZXP-X1 hold?

The SMC ZXP-X1 holds a maximum payload of 7 kg securely at 84 kPa vacuum pressure. Its lightweight design at 0.84 kg preserves your robot's payload capacity for heavier workpieces.

How long does the SMC ZXP-X1 take to install?

The gripper plugs in within minutes and requires only a compressed air supply and M8 connector, reducing installation time compared to traditional multi-component grippers. The integrated ejector, valves, sensor and pads eliminate wiring complexity.

Can I use different pads on this vacuum gripper?

You can swap pads for flat, curved, porous or delicate surfaces without any tools required, allowing safe handling of fragile electronics, small parts and laboratory samples. The flexible pad configuration adapts to various material types.

What is a vacuum gripper used for?

A vacuum gripper uses suction to pick and hold objects, making it ideal for pick-and-place automation, material handling, electronics assembly, and laboratory work. The SMC ZXP-X1 delivers 17 L/min suction flow and handles fragile items safely.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockISO 9409 Compliant

SMC ZXP-X1 Vacuum Gripper, 7 kg, 84 kPa

Name: SMC ZXP-X1 Vacuum Gripper, 7 kg, 84 kPa
Brand: SMC
SKU: 3743
Price: 5195 USD
Availability: InStock

SMC

$5,195.00

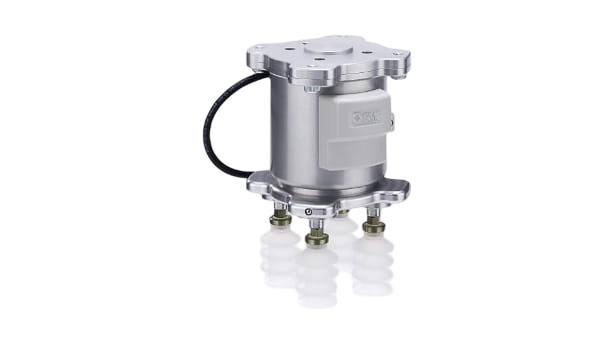

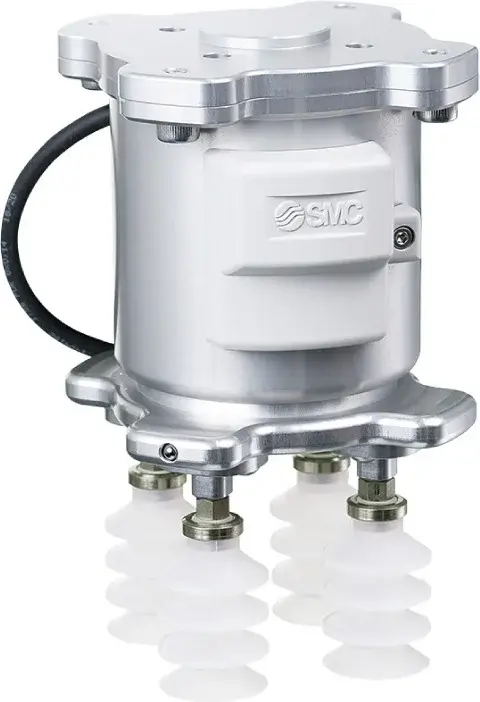

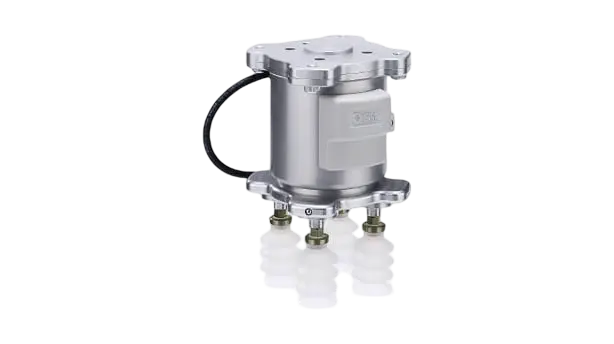

SMC ZXP-X1 is an integrated vacuum gripper for collaborative robots that combines ejector, valves, pressure sensor, and swappable suction pads in one unit. It generates 84 kPa vacuum and 17 L/min airflow to handle loads up to 7 kg via a single compressed air line and M8 connector. The modular pad system adapts to flat, curved, porous, and fragile surfaces. ISO 9409-1-50-4-M6 mount works with FANUC, Universal Robots, Techman, and Yaskawa cobots.

SMC ZXP-X1 vacuum gripper is a high-performance cobot end effector designed for robotic automation with collaborative robots in pick-and-place and material handling tasks.

Headline Specifications:

Maximum payload: 7 kg
Vacuum pressure: 84 kPa
Unit weight: 0.84 kg
Mounting interface: ISO 9409-1-50-4-M6

Key Features:

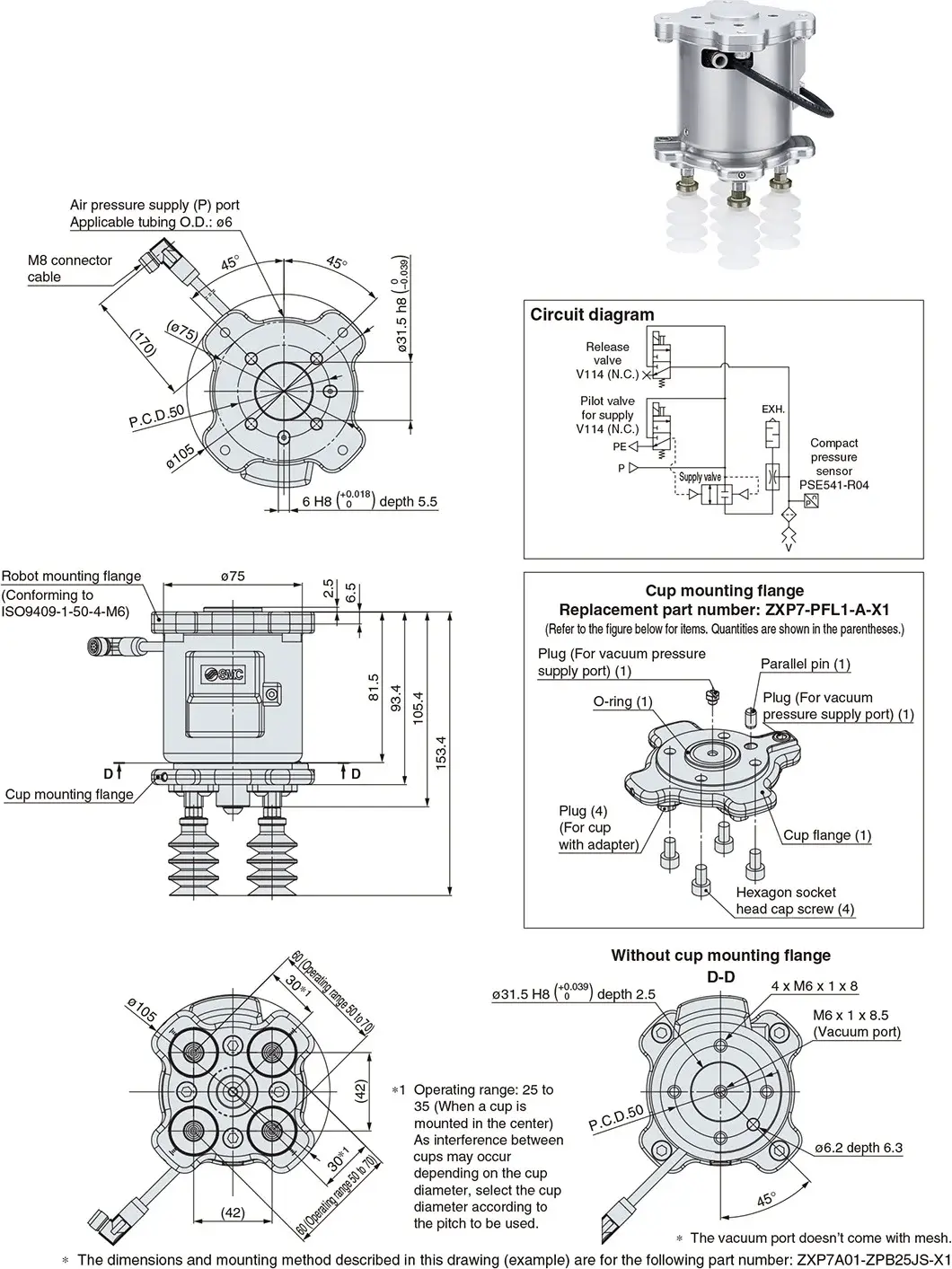

Integrated vacuum gripper design from SMC combines ejector, supply and release valves, pressure sensor, and suction pads into a single module
Reduces installation time and wiring complexity, requiring only a compressed air supply and M8 connector
Flexible pad configuration enables safe handling of fragile or curved workpieces and adapts to various material types

Applications:

Pick-and-place in automation cells
Material handling for packaging lines
Electronics assembly and laboratory handling
Flexible processing of smaller parts in collaborative workspace environments

Compatibility:

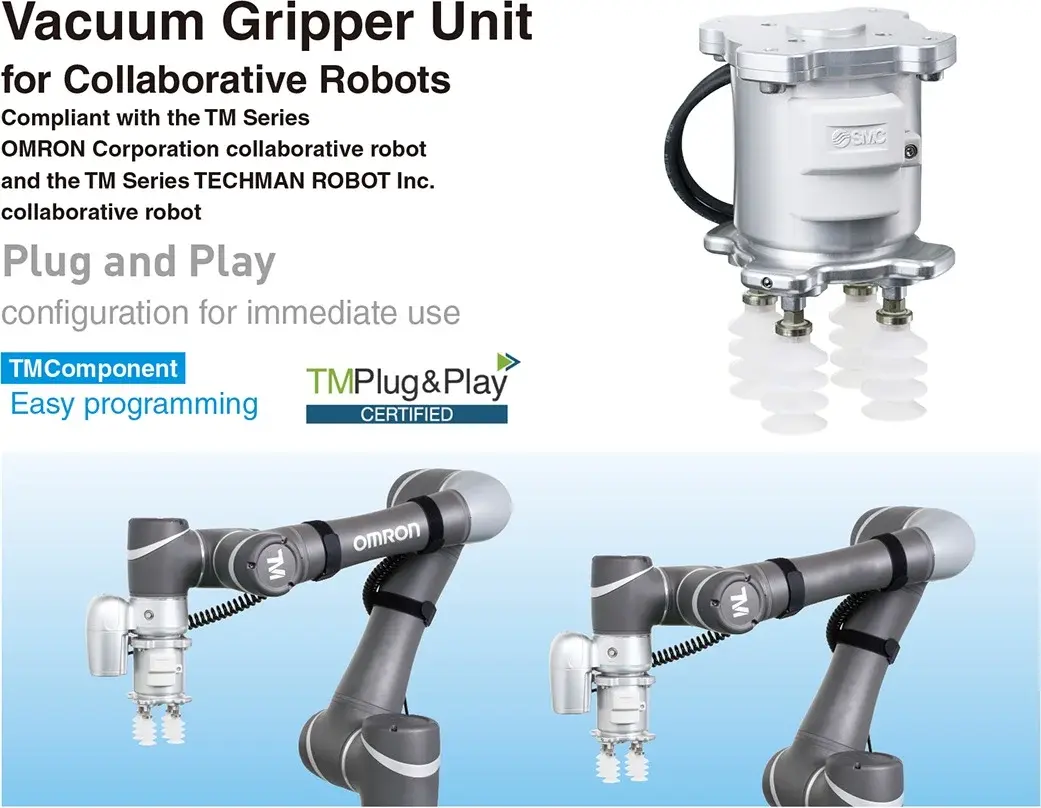

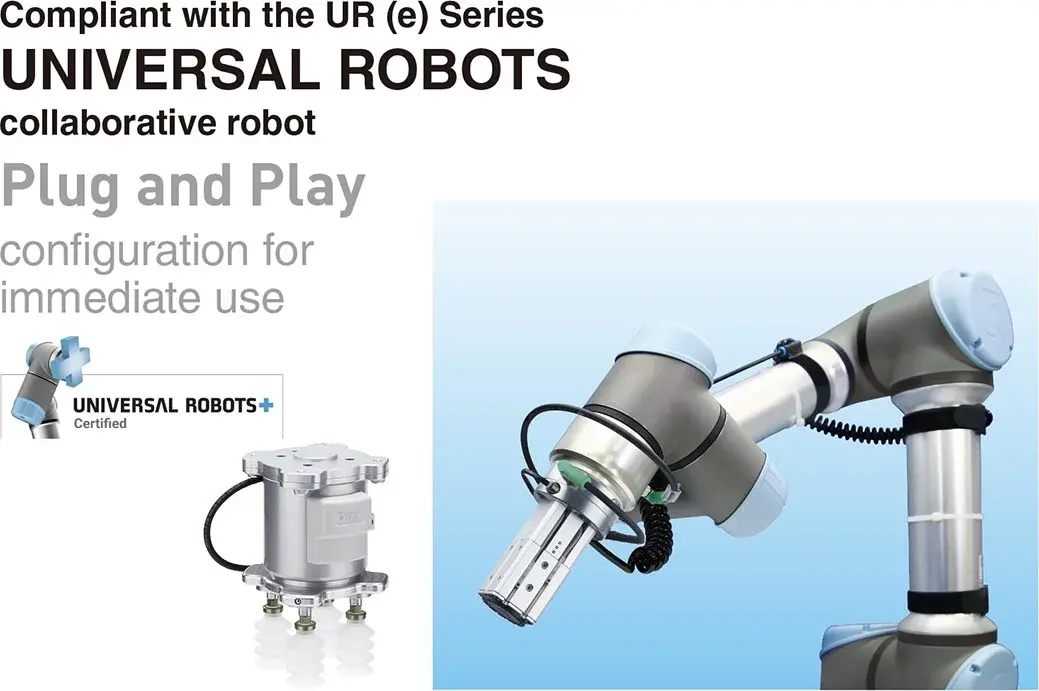

SMC ZXP-X1 mounts directly to collaborative robots from FANUC, Universal Robots, Omron/Techman, and Yaskawa via ISO 9409-1-50-4-M6 interface
Supports integration for buyers seeking robot vacuum gripper and SMC vacuum gripper solutions

Competitive Advantages:

Installation time and setup complexity reduced compared to traditional multi-component grippers due to integrated controls
Pad selection system minimizes risk of damage to delicate or porous workpieces
Built-in sensors and valves streamline automation and enhance process reliability

Trust Indicators:

Manufactured by SMC, a global leader in automation components
ISO 9409-1 interface assures industry compliance for collaborative robot mounting
The SMC ZXP-X1 is recognized for quality in robot vacuum gripper applications

Weight0.84 kg

Model: ZXP-X1
Vacuum Pressure: -84 kPa
Suction Flow: 17 L/min
Maximum Payload: 7 kg
Mounting Interface: ISO 9409-1-50-4-M6
Compatible Cobot Brands: Universal Robots
Omron/Techman
FANUC
Yaskawa
Payload: 7 kg

Plug in minutes. M8 connector, air tube, integrated ejector
Holds 7 kg securely at 84 kPa vacuum, 17 L/min suction flow
Mounts FANUC, Universal Robots, Omron/Techman, Yaskawa via ISO 9409-1-50-4-M6 flange
Swap pads for flat, curved, porous or delicate surfaces, no tools required
All-in-one module integrates ejector, valves, sensor and pads in 0.84 kg
Lightweight at 0.84 kg, preserves payload capacity for heavier workpieces
Handles fragile electronics, small parts and laboratory samples safely

: The SMC ZXP-X1 mounts directly to FANUC collaborative robots via the ISO 9409-1-50-4-M6 interface. It also works with Universal Robots, Omron/Techman, and Yaskawa cobots using the same standard flange.
: The SMC ZXP-X1 holds a maximum payload of 7 kg securely at 84 kPa vacuum pressure. Its lightweight design at 0.84 kg preserves your robot's payload capacity for heavier workpieces.
: The gripper plugs in within minutes and requires only a compressed air supply and M8 connector, reducing installation time compared to traditional multi-component grippers. The integrated ejector, valves, sensor and pads eliminate wiring complexity.
: You can swap pads for flat, curved, porous or delicate surfaces without any tools required, allowing safe handling of fragile electronics, small parts and laboratory samples. The flexible pad configuration adapts to various material types.
: A vacuum gripper uses suction to pick and hold objects, making it ideal for pick-and-place automation, material handling, electronics assembly, and laboratory work. The SMC ZXP-X1 delivers 17 L/min suction flow and handles fragile items safely.

Vacuum gripper versus mechanical finger grippers:

The SMC ZXP-X1 is a vacuum-based end effector designed for pick-and-place and material handling on collaborative robots. It differs from two-finger mechanical grippers in grip method, payload, and workpiece compatibility.

For fragile electronics, small parts and laboratory samples, vacuum pads conform safely to surfaces without crushing or marking, whereas mechanical fingers apply concentrated clamping force.
At 7 kg payload on a 0.84 kg gripper, the lightweight design preserves robot payload capacity for heavier workpieces or multi-tool setups.
On shared collaborative cells with delicate or porous materials, swappable pads (flat, curved, porous, or soft contact) adapt to different surface textures without tool changes.
For fast setup and reduced air-line complexity, the integrated ejector, valves and sensor require only compressed air and an M8 connector, compared to multi-component mechanical systems.
On packaging lines and high-throughput pick-and-place, the 17 L/min suction flow and 84 kPa pressure grip firmly at speed while holding securely during transfer.
