What is the lifting force of the SMC ZGS 400 x 240 mm vacuum gripper?

The SMC ZGS generates 2144 N lifting force at negative 75 kPa for secure load control. This force is sufficient for handling mixed and irregular goods in palletizing, depalletizing, and packaging applications.

What robots is the SMC ZGS compatible with?

The ZGS011PK-300180BS3-X1C10 model mounts to collaborative robots from Universal Robots, Omron/Techman, FANUC, and Yaskawa via an ISO 9409-1-50-4-M6 flange. It supports flexible automation needs across these major robot brands.

How do I install the SMC ZGS vacuum gripper?

The gripper mounts using an ISO 9409-1-50-4-M6 flange and requires only one air line and one electrical cable for connection. The fully integrated ejector, valves, silencer, and pressure switch streamline installation and setup.

What temperature can the SMC ZGS gripper operate in?

The SMC ZGS operates reliably up to 50 degrees Celsius ambient temperature. It weighs just 1.8 kg, making it suitable for compact robot mounting in various industrial environments.

Can the SMC ZGS handle irregular shaped items?

Yes, the 400 x 240 mm sponge-type suction surface grips porous and irregularly shaped products, making it ideal for handling mixed or uneven goods. The modular ejector configuration allows you to tailor suction flow and optimize cycle times for different item types.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockGrips 21 kg

SMC ZGS Vacuum Gripper System, 400 x 240 mm

Name: SMC ZGS Vacuum Gripper System, 400 x 240 mm
Brand: SMC
SKU: 3733
Price: 6695 USD
Availability: InStock

SMC

$6,695.00

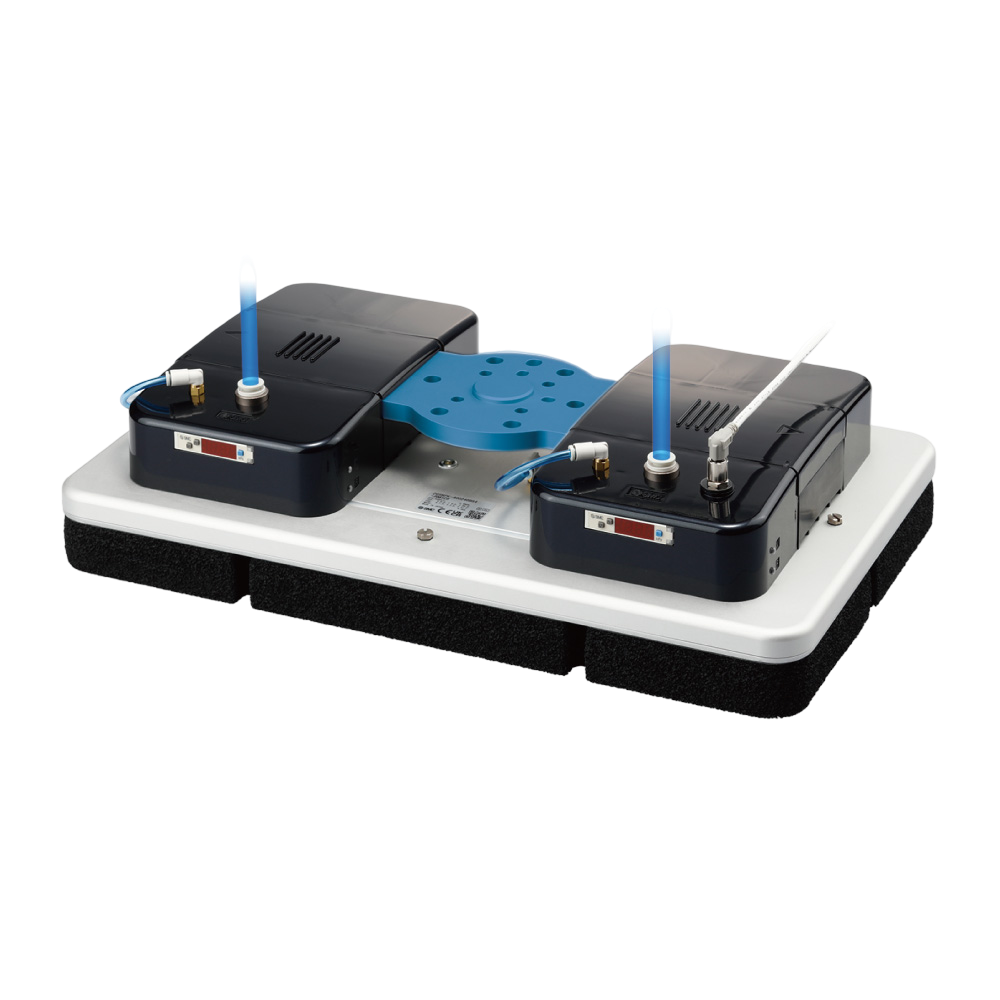

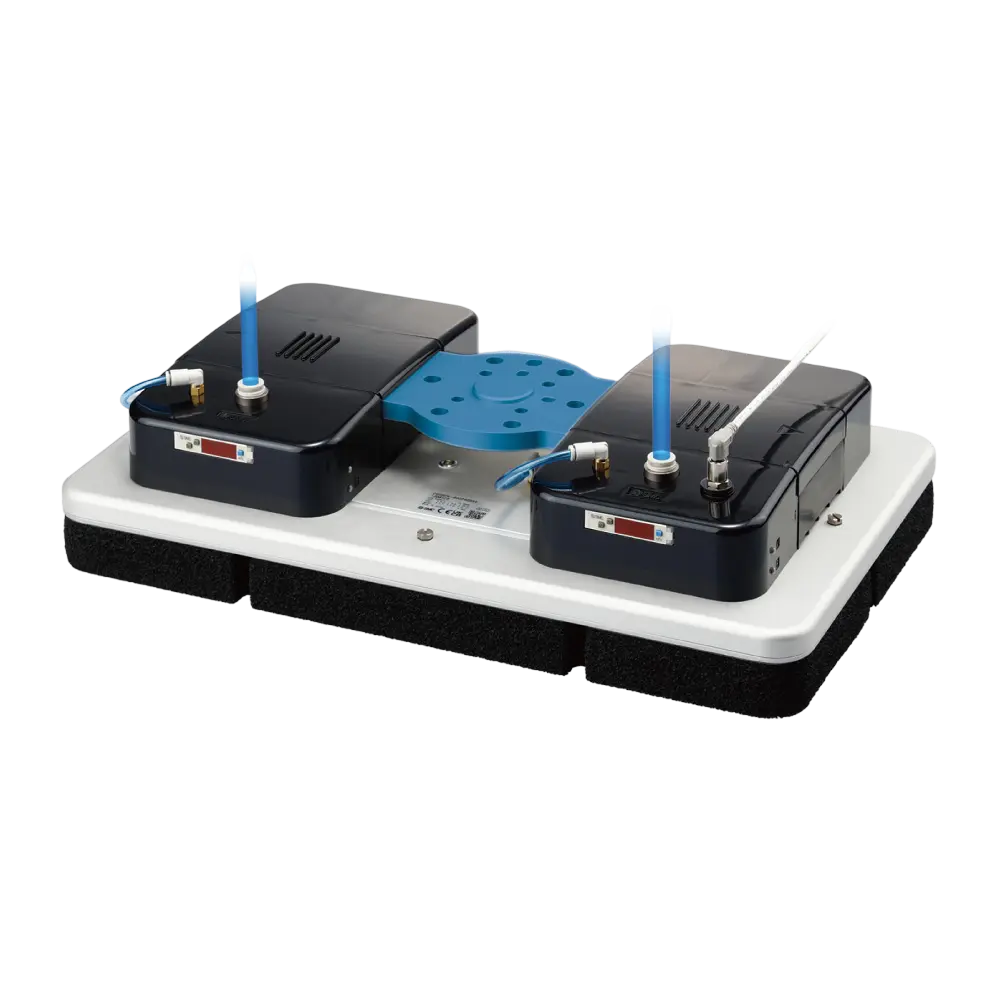

SMC ZGS 400 x 240 mm vacuum gripper system with integrated ejector, valves, and controls. Self-contained 1.8 kg unit delivers 2144 N lifting force for cartons, bags, and irregular items. ISO 9409-1-50-4-M6 mount, single air line and electrical connection. Cobot-ready for Universal Robots, FANUC, Yaskawa, and Techman platforms.

SMC ZGS Vacuum Gripper System, 400 x 240 mm:

SMC ZGS Vacuum Gripper System is an industrial robot vacuum gripper for palletising, depalletising, and packaging tasks across logistics, food, and automotive industries.

Key Features:

Integrated ejector unit, valves, silencer, and pressure switch for streamlined operation
400 × 240 mm sponge-type suction surface grips cartons, bags, uneven or mixed goods
Lifting force up to 2144 N at −75 kPa for secure handling
Mounts using ISO 9409-1-50-4-M6 flange, connects via one air line and one electrical cable
1.8 kg weight, rated for ambient temperatures up to 50°C
Modular ejector configuration adjusts suction flow and cycle time

Applications:

Palletising and depalletising in logistics and warehousing
Automated packaging in food manufacturing
Material handling for automotive component transfer

Compatibility:

ZGS011PK-300180BS3-X1C10 mounts to collaborative robots from Universal Robots, Omron/Techman, FANUC, and Yaskawa, supporting flexible automation needs.

Advantages vs. Alternatives:

Fully integrated design reduces installation complexity compared to separate vacuum gripper suction cup assemblies
Broad compatibility with major robot brands and ISO mounting standard
Adjustable suction flow enables tailored performance for varying item sizes and shapes

When to Choose SMC ZGS:

Choose the SMC ZGS when a versatile vacuum gripper system is needed for collaborative robots in settings requiring efficient handling of mixed, fragile, or irregular items.

Weight1.8 kg

Max. ambient temperature50 ℃

Payload: 2144 N
Reach: 400 x 240 mm
Ambient Temperature: 50°C
Mounting Interface: ISO 9409-1-50-4-M6
Vacuum Pressure: -75 kPa

Handles mixed or irregular goods fast with high-efficiency 400 x 240 mm vacuum area
Tailor suction flow with modular ejector configurations to optimize cycle times
Grips porous and irregularly filled products for palletizing, depalletizing, packaging, handling
Generates 2144 N lifting force at negative 75 kPa for secure load control
Mounts via ISO 9409-1-50-4-M6 flange, needs one air line and one electrical cable
Fully integrated ejector, valves, silencer, pressure switch streamline installation and setup
Operates reliably up to 50°C ambient temperature, weighs just 1.8 kg

: The SMC ZGS generates 2144 N lifting force at negative 75 kPa for secure load control. This force is sufficient for handling mixed and irregular goods in palletizing, depalletizing, and packaging applications.
: The ZGS011PK-300180BS3-X1C10 model mounts to collaborative robots from Universal Robots, Omron/Techman, FANUC, and Yaskawa via an ISO 9409-1-50-4-M6 flange. It supports flexible automation needs across these major robot brands.
: The gripper mounts using an ISO 9409-1-50-4-M6 flange and requires only one air line and one electrical cable for connection. The fully integrated ejector, valves, silencer, and pressure switch streamline installation and setup.
: The SMC ZGS operates reliably up to 50 degrees Celsius ambient temperature. It weighs just 1.8 kg, making it suitable for compact robot mounting in various industrial environments.
: Yes, the 400 x 240 mm sponge-type suction surface grips porous and irregularly shaped products, making it ideal for handling mixed or uneven goods. The modular ejector configuration allows you to tailor suction flow and optimize cycle times for different item types.

Vacuum gripper system versus manual or mechanical gripping:

The SMC ZGS is a pneumatic vacuum gripper for fast handling of mixed or irregular goods, contrasted with manual picking, fixed mechanical clamps, or single-cup vacuum systems that cannot adapt to varying product shapes.

For pallets of mixed carton sizes and weights, the 400 x 240 mm sponge surface grips uneven stacks without product-specific tooling changes.
On high-throughput packaging lines with soft or crushable items, the modular ejector adjusts suction flow to prevent damage while cutting cycle time.
In tight collaborative cells, the 1.8 kg weight and fully integrated ejector, valves, and silencer mean one air line and one cable instead of external vacuum plumbing.
For food, logistics, or automotive where ambient heat rises toward 50°C, the rated operating range keeps grip force stable at 2144 N without performance loss.
On robots from Universal Robots, FANUC, Yaskawa, or Techman, the ISO 9409-1-50-4-M6 flange simplifies swap-in and multi-arm deployment.
