What is a vacuum gripper?

A vacuum gripper uses suction to securely pick and move products, including cartons, sacks, and irregular items. The SMC ZGS Vacuum Gripper System delivers 2144 N lift force at -75 kPa vacuum level to handle mixed and unevenly filled goods across palletizing, depalletizing, and packaging applications.

How does the SMC ZGS vacuum gripper work?

The ZGS011PK-400240BS6-C1C10 uses a large 400 x 240 mm sponge suction area to adapt to uneven surfaces and grip irregular loads. Its integrated ejector, valves, and pressure switch create and control suction flow, which you can tune through modular ejector configurations to optimize cycle time.

What robots is the SMC ZGS compatible with?

The SMC ZGS mounts via ISO-9409-1-50-4-M6 flange and is compatible with Universal Robots, FANUC, Yaskawa, and Omron robot arms. Its lightweight 3.9 kg design fits both collaborative and industrial robots.

Can this vacuum gripper handle porous and irregular products?

Yes, the SMC ZGS is designed to handle porous, unevenly filled products and irregular goods across palletizing, depalletizing, packaging, and automation tasks. The large sponge suction area adapts to uneven surfaces and mixed SKUs.

What is the maximum operating temperature for the SMC ZGS?

The maximum ambient operating temperature for the SMC ZGS Vacuum Gripper System is 50 degrees Celsius.

How long does it take to install the SMC ZGS gripper?

Installation is fast because the all-in-one design integrates the ejector, valves, silencer, and pressure switch into a single unit. You connect one air supply, one electrical cable, and mount via the ISO-9409-1-50-4-M6 flange to your robot.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockGrips 21 kg

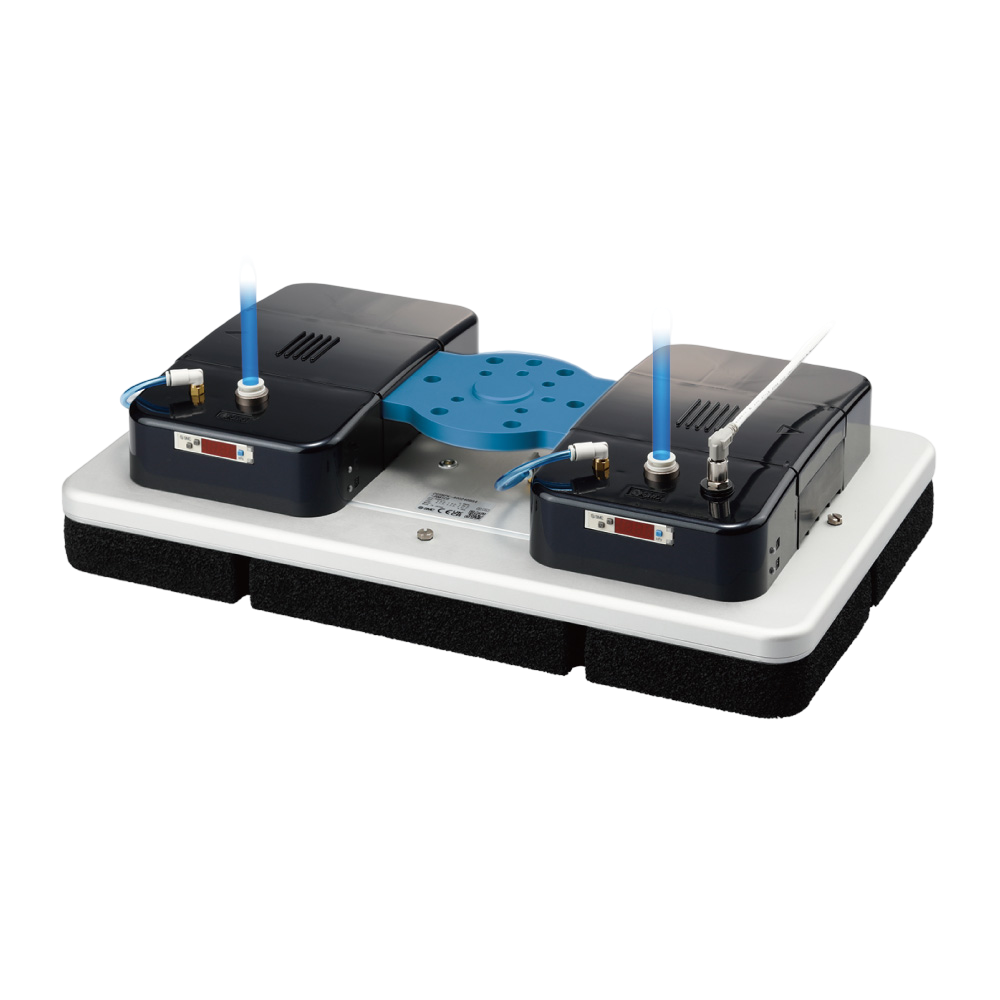

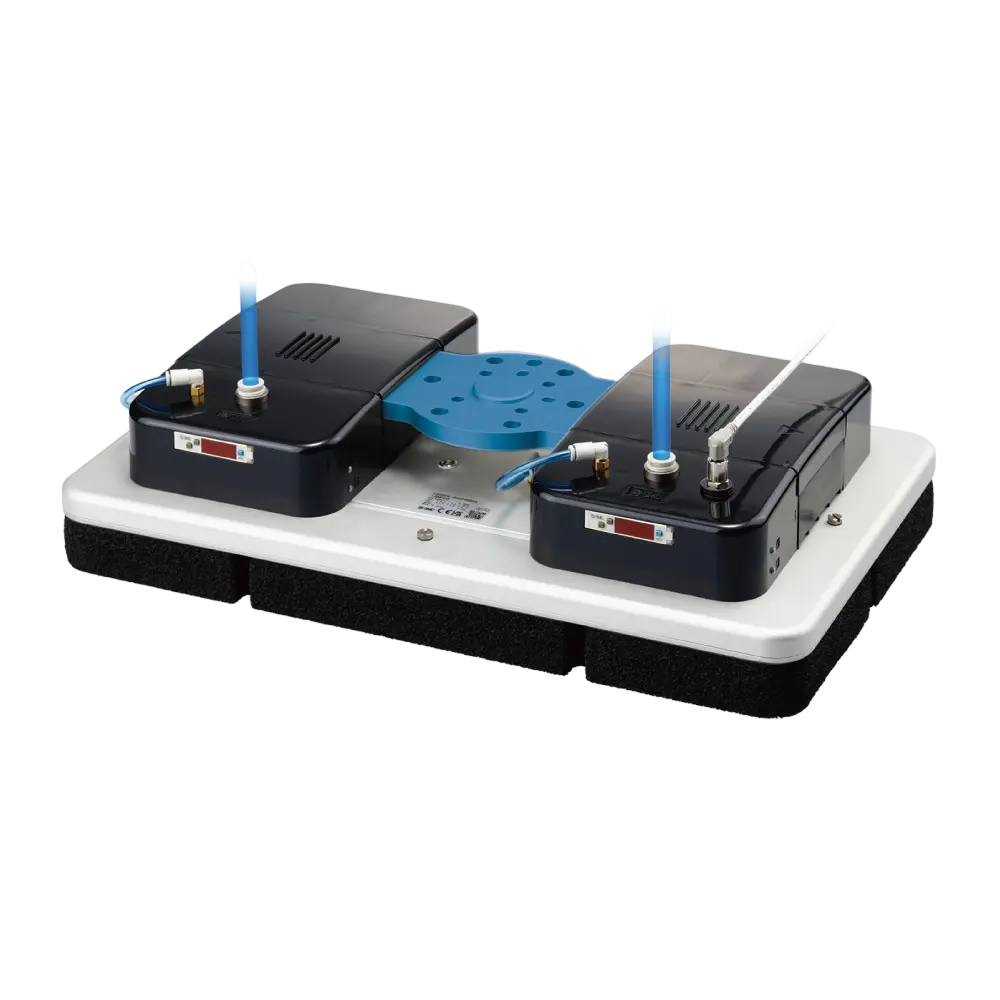

SMC ZGS Vacuum Gripper System, 400x240 mm

Name: SMC ZGS Vacuum Gripper System, 400x240 mm
Brand: SMC
SKU: 3732
Price: 13700 USD
Availability: InStock

SMC

$13,700.00

Compact vacuum gripper system with 400x240 mm sponge surface and 2144 N lift force, integrating ejector, valves, and controls for robot palletizing and case handling of cartons, bags, and irregular loads.

The SMC ZGS is a modular vacuum gripper system engineered for collaborative and industrial robot integration, featuring an all-in-one design for palletizing, packaging, and material handling applications.

Key Features:

Integrated ejector unit, valves, silencer, and pressure switch for seamless installation.
Large sponge suction area (400 x 240 mm) adapts to uneven surfaces and mixed SKUs.
Lift Force: 2144 N at −75 kPa
Weight: 3.9 kg for lightweight robot compatibility
ISO-9409-1-50-4-M6 mounting flange for quick robot attachment
Maximum ambient operating temperature: 50 °C

Specifications:

Model number: ZGS011PK-400240BS6-C1C10
Surface: 400 x 240 mm
Weight: 3.9 kg
Lift Force: 2144 N
Mounting Interface: ISO-9409-1-50-4-M6

Compatibility:

Universal Robots
Omron/Techman
FANUC
Yaskawa

Comparison and Advantages:

All-in-one integration eliminates separate vacuum components for faster setup.
Compact, lightweight assembly suits collaborative and industrial robots.
Modular ejector configurations enable tuning for cycle performance.
Compared to non-integrated grippers, the SMC ZGS simplifies maintenance and reduces wiring complexity.

Application Suitability:

Adaptive grip for cartons, bags, and irregularly shaped loads.
SMC ZGS for Universal Robots in mixed-case handling scenarios.

FAQ Section:

What is a vacuum gripper? A vacuum gripper uses suction to securely pick and move products, including cartons, sacks, and irregular items.
How do you install the SMC ZGS? Installation involves connecting a single air supply, one electrical cable, and mounting via the ISO-9409-1-50-4-M6 flange.
What robots does the SMC ZGS fit? Compatible with Universal Robots, Omron/Techman, FANUC, and Yaskawa robot arms.
What are common uses? The SMC ZGS vacuum gripper system is ideal for palletizing, depalletizing, mixed SKU handling, and packaging lines.

Model and Manufacturer:

Manufacturer: SMC
Series: ZGS Vacuum Gripper System
Model number: ZGS011PK-400240BS6-C1C10

Weight3.9 kg

Max. ambient temperature50 ℃

Payload: 2144 N
Reach: 400 x 240 mm
Vacuum Level: -75 kPa
Mounting Interface: ISO-9409-1-50-4-M6

Grips mixed and irregular goods fast, 400x240 mm vacuum area for palletizing
Tune suction flow with modular ejector configurations to optimize cycle time
Handles porous, unevenly filled products across palletizing, depalletizing, packaging, automation
Delivers 2144 N lift force at -75 kPa vacuum level
All-in-one design integrates ejector, valves, silencer, pressure switch for faster setup
Lightweight 3.9 kg body fits collaborative and industrial robots
Mounts instantly via ISO-9409-1-50-4-M6 flange to UR, FANUC, Yaskawa, Omron

: A vacuum gripper uses suction to securely pick and move products, including cartons, sacks, and irregular items. The SMC ZGS Vacuum Gripper System delivers 2144 N lift force at -75 kPa vacuum level to handle mixed and unevenly filled goods across palletizing, depalletizing, and packaging applications.
: The ZGS011PK-400240BS6-C1C10 uses a large 400 x 240 mm sponge suction area to adapt to uneven surfaces and grip irregular loads. Its integrated ejector, valves, and pressure switch create and control suction flow, which you can tune through modular ejector configurations to optimize cycle time.
: The SMC ZGS mounts via ISO-9409-1-50-4-M6 flange and is compatible with Universal Robots, FANUC, Yaskawa, and Omron robot arms. Its lightweight 3.9 kg design fits both collaborative and industrial robots.
: Yes, the SMC ZGS is designed to handle porous, unevenly filled products and irregular goods across palletizing, depalletizing, packaging, and automation tasks. The large sponge suction area adapts to uneven surfaces and mixed SKUs.
: The maximum ambient operating temperature for the SMC ZGS Vacuum Gripper System is 50 degrees Celsius.
: Installation is fast because the all-in-one design integrates the ejector, valves, silencer, and pressure switch into a single unit. You connect one air supply, one electrical cable, and mount via the ISO-9409-1-50-4-M6 flange to your robot.

Vacuum Gripper versus Mechanical Gripper or Manual Handling:

The SMC ZGS is a pneumatic vacuum system designed for fast, adaptive gripping of mixed and irregular goods. Choose it over mechanical grippers or manual methods when you need to handle cartons, bags, and unevenly filled products on high-throughput palletizing and packaging lines.

For mixed SKUs and irregular shapes, the 400x240 mm sponge suction area grips varied load profiles without tooling changeover.
On collaborative or space-constrained cells, the 3.9 kg lightweight body and integrated ejector, valves, and silencer fit UR, FANUC, Yaskawa, and Omron robots with instant ISO-9409-1-50-4-M6 mounting.
For porous or unevenly filled products, modular ejector tuning optimizes cycle time while delivering 2144 N lift force at 75 kPa.
When pneumatic infrastructure is available, the all-in-one design eliminates separate component sourcing and reduces wiring complexity versus non-integrated vacuum systems.
