SMC
The SMC RMTM1-M1-X101 is a one-push tool changer for tool-free end-effector swapping on industrial and collaborative robots. It supports loads up to 20 kg with 0.01 mm repeatability and 60 Nm moment and torque resistance, weighs 0.137 kg, and conforms to ISO 9409-1-50-4-M6 mounting. Suited for pick-and-place, machine tending, and palletizing where fast changeover matters.

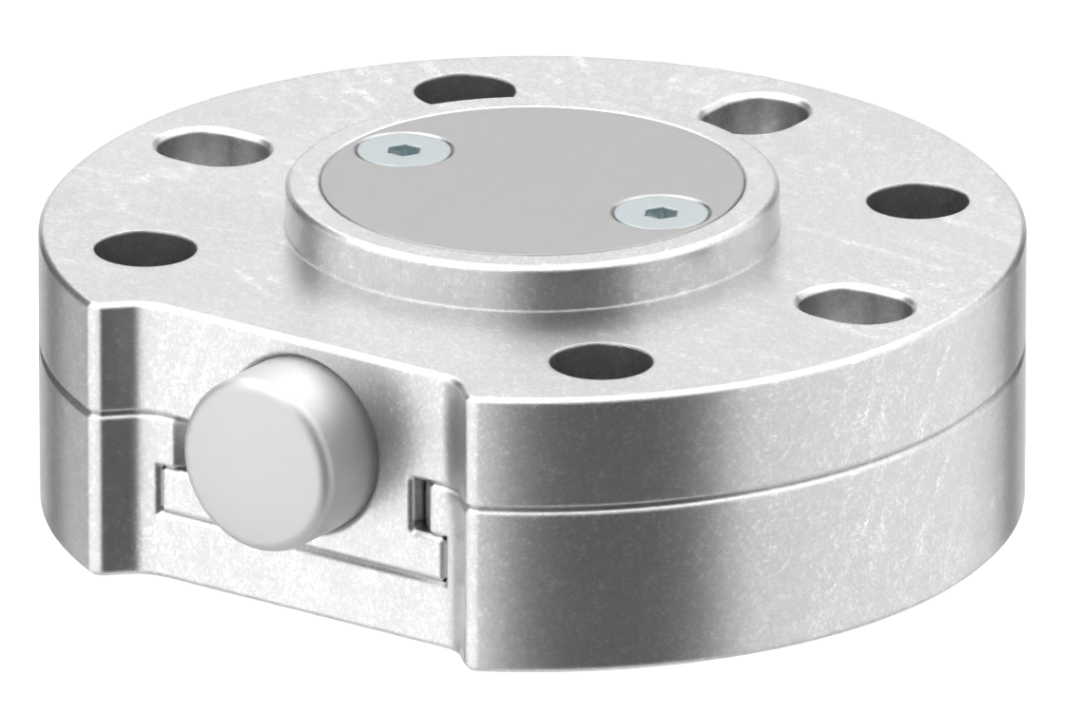

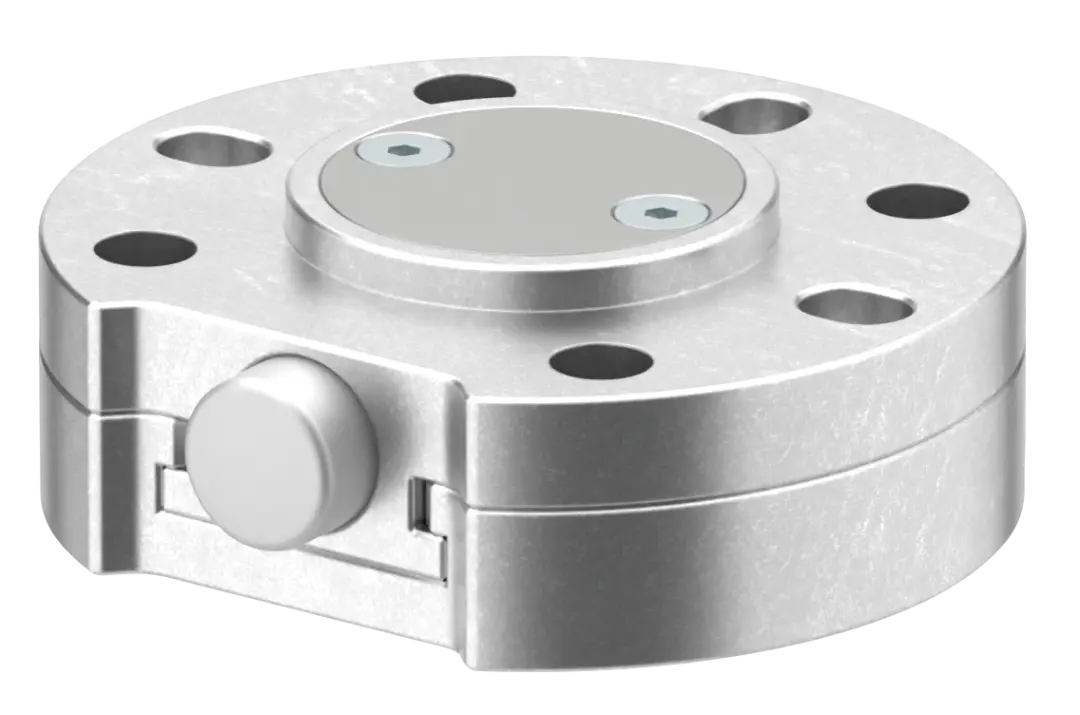

The SMC RMTM1-M1-X101 is a one-push, manual tool changer that lets a robot swap end-effectors by hand without tools, built for pick-and-place, machine tending, palletizing and collaborative robot tasks. Part of the SMC RMTM1 series, this 20 kg variant handles loads up to 20 kg while a push-button mechanism secures and releases tooling.
The RMTM1-M1-X101 conforms to ISO 9409-1-50-4-M6, so it mates to any robot or cobot flange built to that standard. This makes it a direct fit for the many collaborative and industrial arms that use the ISO 9409-1-50-4-M6 tool-side interface, giving a definitive answer on mounting before purchase.
Pick the RMTM1-M1-X101 when your application needs frequent, tool-free end-effector swaps and the tooling stays at or below 20 kg. The 0.01 mm repeatability keeps pick-and-place and machine-tending cycles accurate after every change, and the 0.137 kg weight preserves usable payload. If your tooling exceeds 20 kg, consider a higher-capacity model in the SMC RMTM1 series instead.

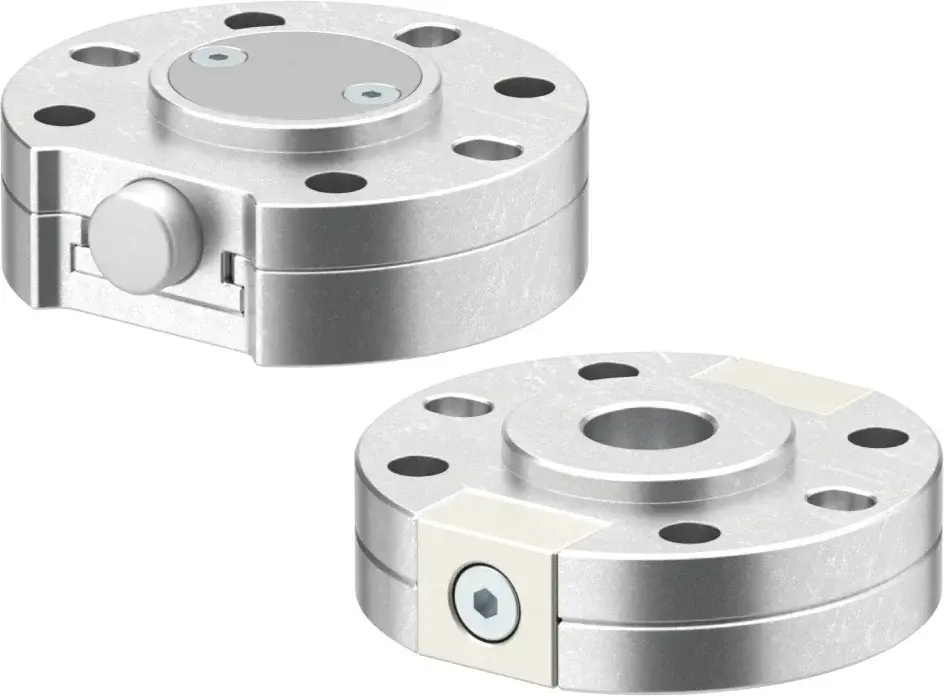

The modular assembly ships with the main plate, tool plate, collar assembly, pins, and mounting screws for complete installation.
The SMC RMTM1-M1-X101 is a manual, one-push tool changer, an alternative to fully pneumatic clamp-type changers and to fixed single-tool mounts that require unbolting to switch end effectors. Choose it when fast, tool-free changeovers matter more than automated locking.
