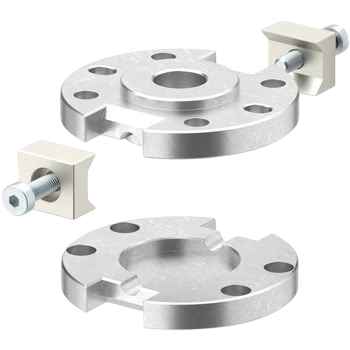

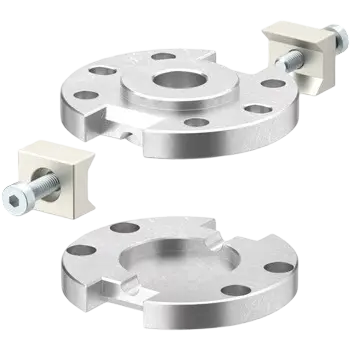

The SMC RMTM2-4T1 is a manual tool changer that uses a two-bolt clamping mechanism to enable secure end-effector exchanges on collaborative robots.
Conforming to ISO 9409-1-50-4-M6, it provides direct mounting compatibility with most collaborative robot models.
The unit delivers 0.2 mm repeatability for applications requiring consistent tool positioning across multiple changes.
At 16 mm in height and weighing 0.137 kg, the RMTM2-4T1 minimizes added inertia to the robot arm, supporting faster cycle times in production environments.
The clamp-type design creates a rigid, vibration-resistant connection suited to high-load operations and precision tasks.
The system ships with both main plate and tool plate components.
This tool changer is appropriate for flexible manufacturing cells where multiple end-effectors are rotated manually, including pick-and-place operations, machine tending, and other applications that benefit from stable tool changes without pneumatic actuation requirements.
The design works with RMH-series air grippers and other end-of-arm tooling that meets the ISO 9409-1-50-4-M6 interface standard.
