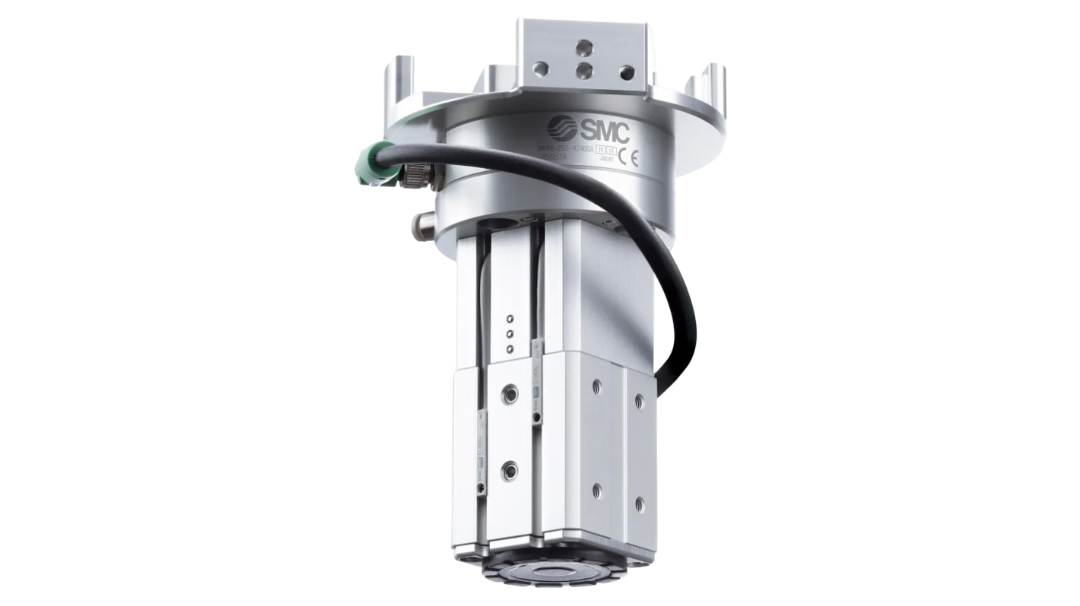

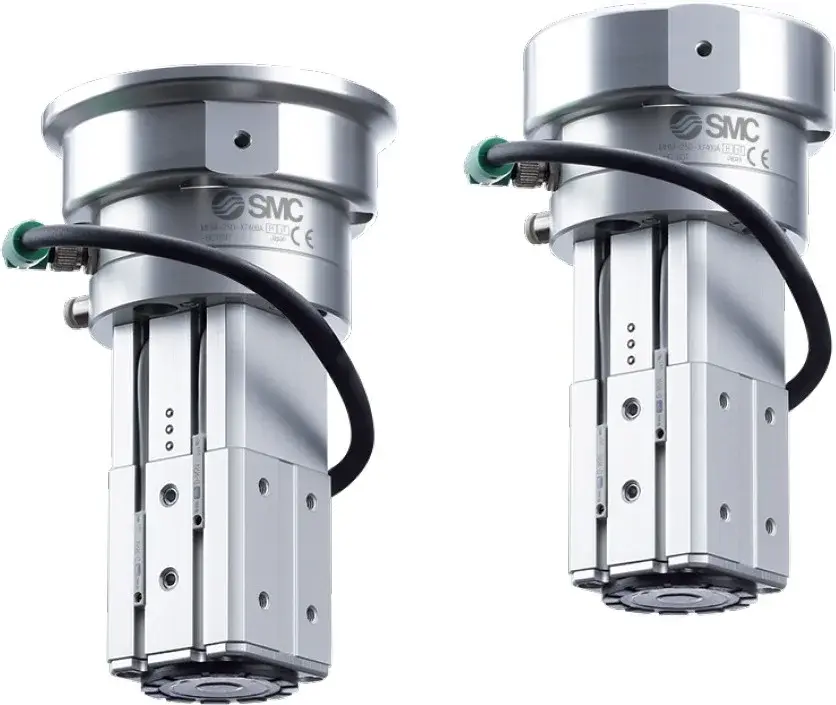

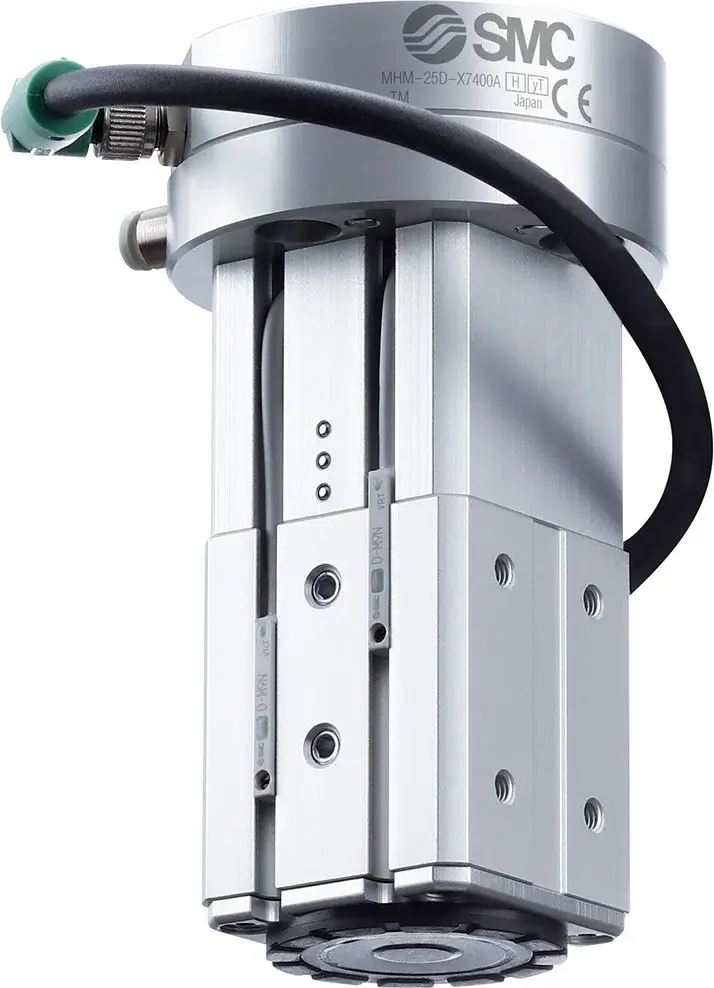

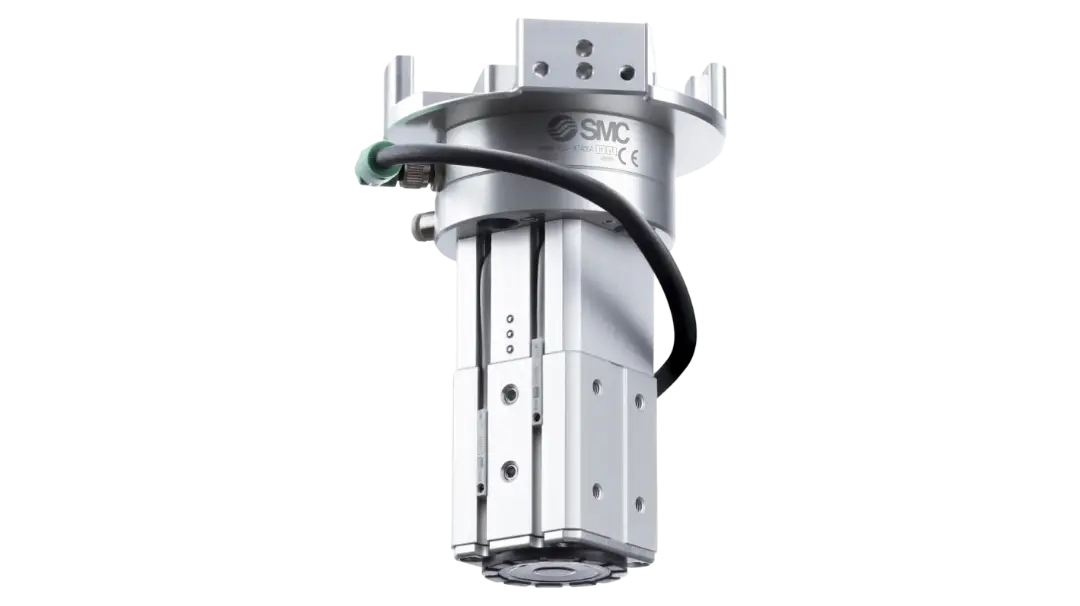

The SMC MHM-25D-X7400A is a pneumatic magnetic gripper designed for handling ferrous workpieces in collaborative robot applications.
Weighing 0.59 kg and delivering up to 200 N of gripping force, this end effector maintains its hold even when air supply is interrupted, supporting workpieces up to 10 kg.

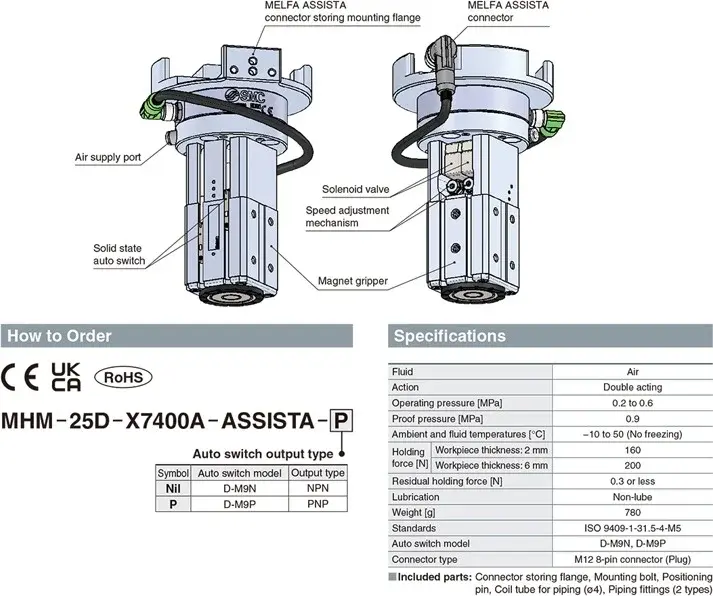

The integrated solenoid valve, auto switch, and speed-adjustment mechanism enable single-tube air connection via M8/M12 electrical interface.
The gripper accommodates metallic parts with holes, uneven surfaces, and irregular contours where vacuum-based handling is ineffective.

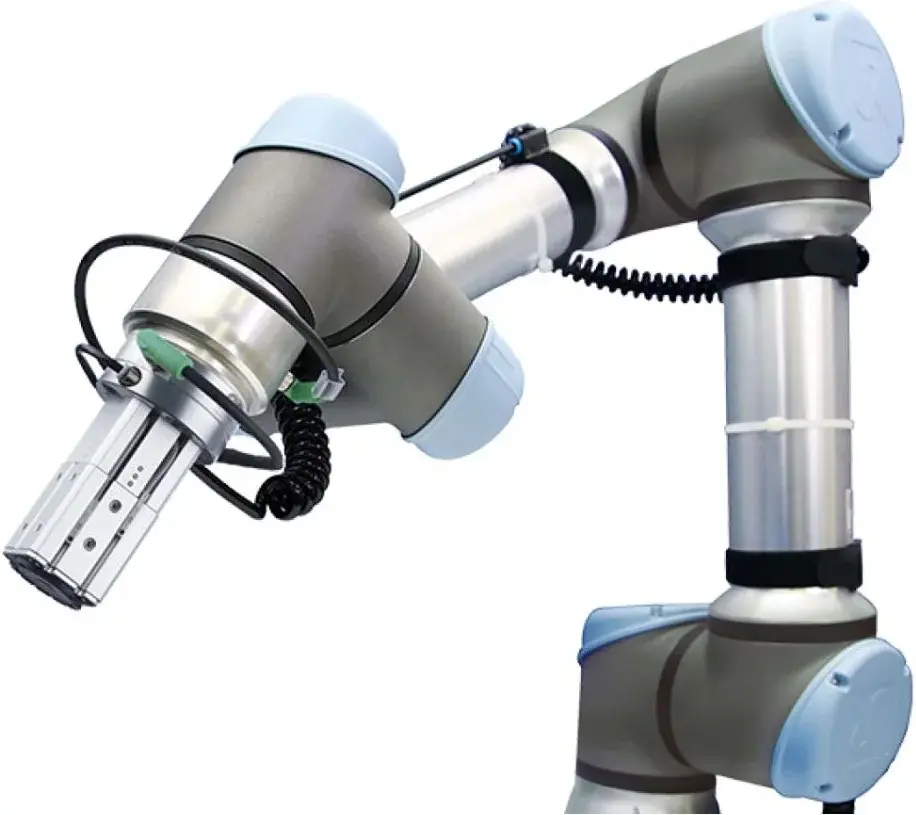

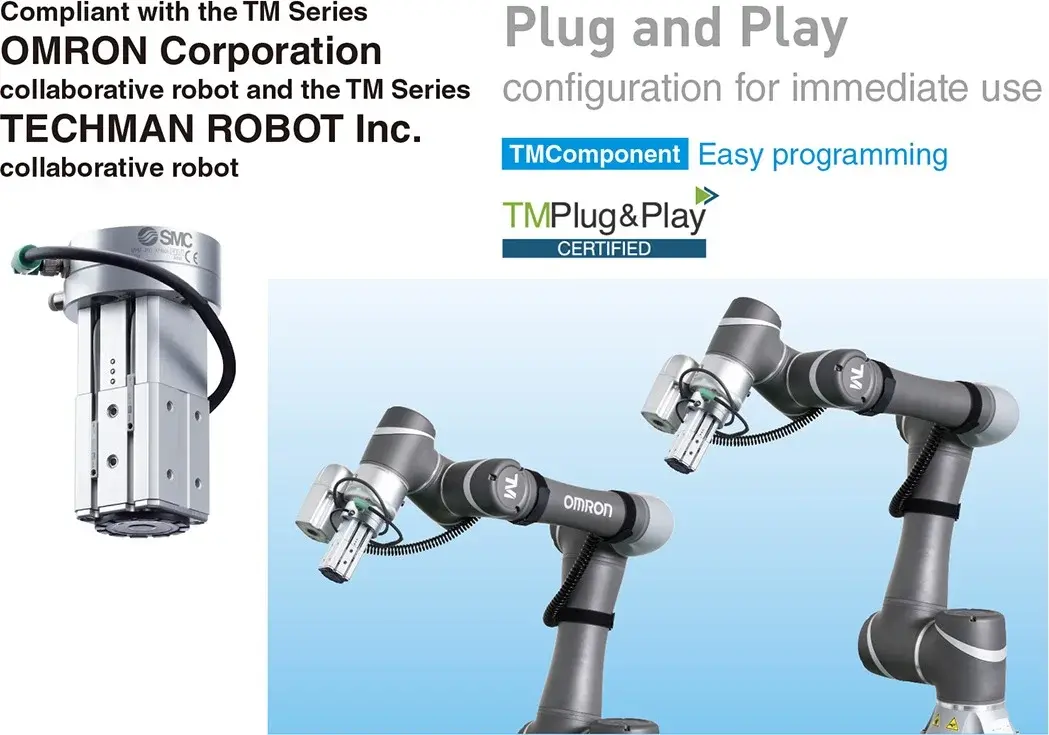

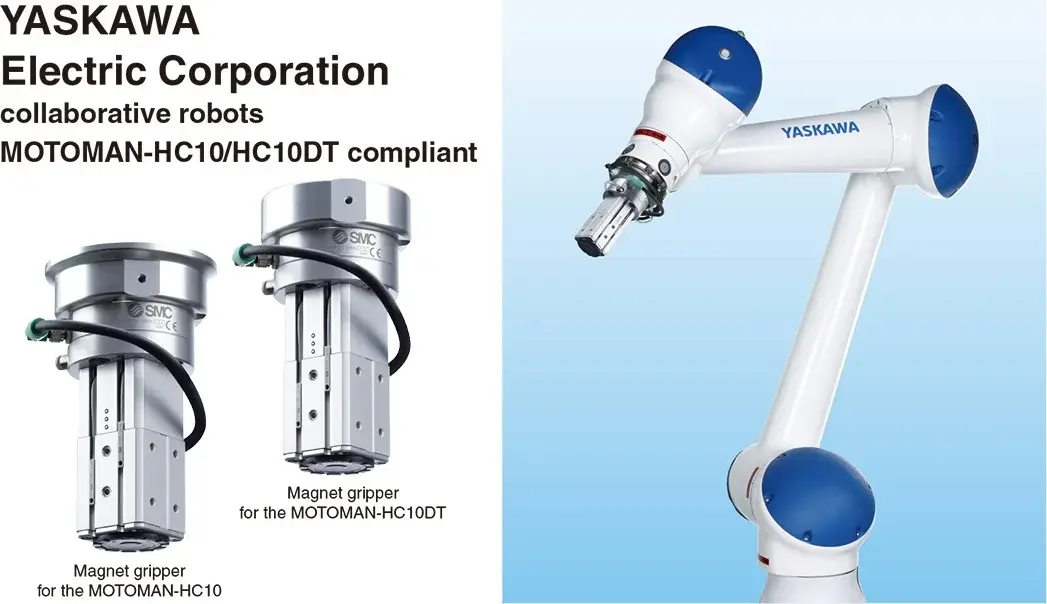

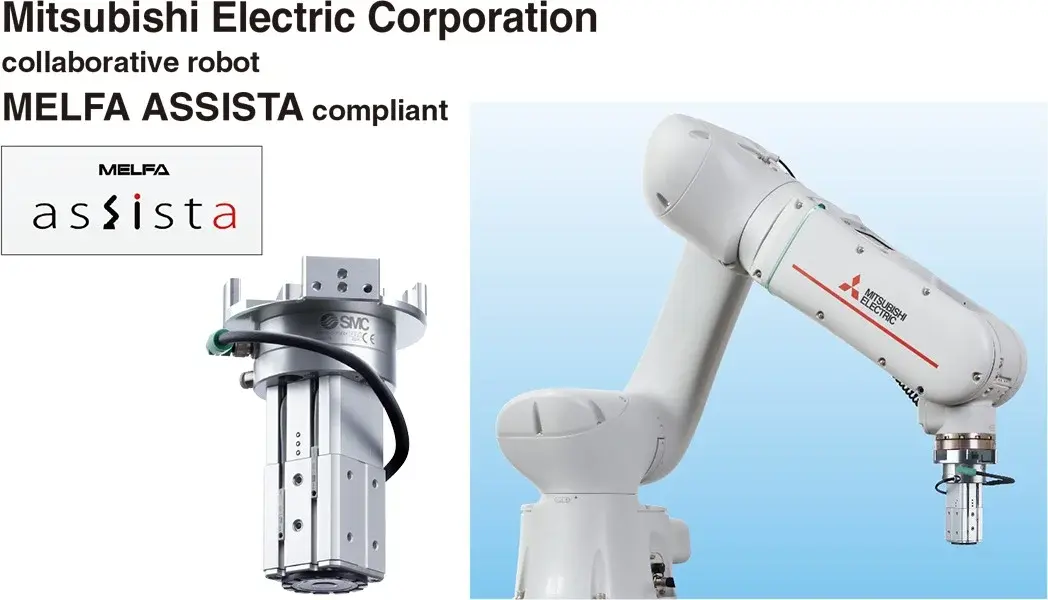

Its ISO 9409-1-50-4-M6 compliance supports integration with Universal Robots, Fanuc, Yaskawa, Omron/Techman, and Mitsubishi collaborative robot platforms.
Maximum ambient operating temperature is 50°C.
Typical applications include sheet metal handling, machine tending, and palletizing operations involving steel plates and other ferromagnetic materials.
Adjustable magnetic force allows adaptation to different workpiece requirements in flexible manufacturing environments.
