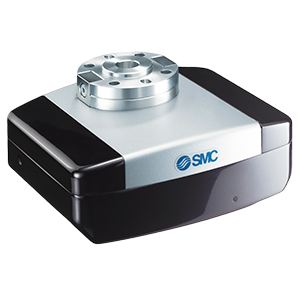

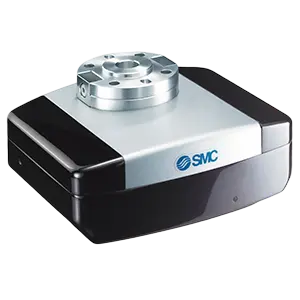

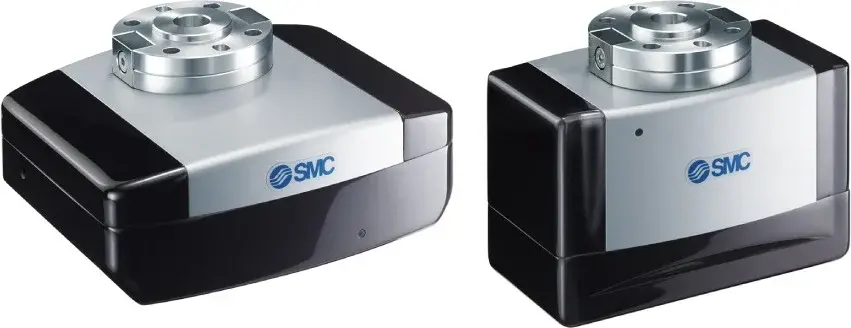

The SMC LEHR32K2-50A-011-E is a 1 kg electric gripper engineered for collaborative robot integration.
Its slide-screw self-locking mechanism maintains gripping force during power interruptions, while a battery-less absolute encoder eliminates homing routines by restoring finger position immediately upon restart.
The unit delivers 140 N maximum gripping force with 0.1 mm repeatability across a 50 mm stroke.

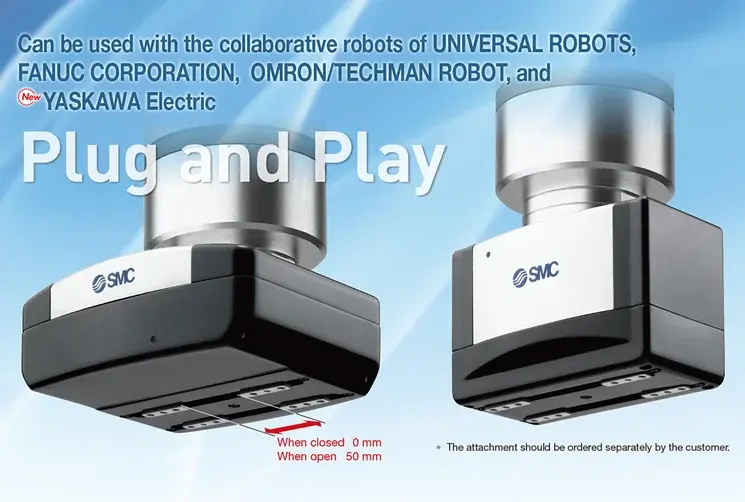

This gripper is certified for use with Universal Robots, FANUC, and Omron/Techman collaborative robots.

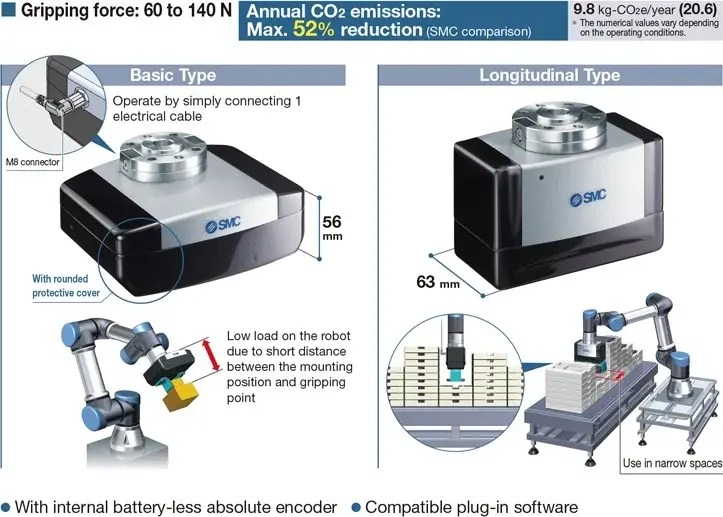

It mounts via ISO 9409-1-50-4-M6 flange and connects through a single M8 interface for streamlined installation.
The design supports multiple pad and finger configurations to accommodate varying part geometries.
Typical applications include pick-and-place operations, precision assembly tasks, and laboratory automation where consistent gripping performance and minimal downtime are required.
The self-locking drive reduces energy consumption by eliminating the need for continuous power to maintain hold, making it suitable for applications involving delicate components through medium-weight workpieces.
