What is the payload capacity of the Maschinenbau Kitz GUF-P MINI AF?

The GUF-P MINI AF handles a maximum payload of 25 kg across its 1000 mm belt length. The 100 mm belt width is sized for small, lightweight materials in compact automation applications.

How do I mount the GUF-P MINI AF to my system?

The conveyor mounts directly to your automation cell or robot using 10 mm T-slot aluminum frame connectors for modular integration. No base frame is included, so you attach it directly to your existing equipment or structure.

What controls the GUF-P MINI AF conveyor?

The Igus Robot Control system powers and manages operation of the GUF-P MINI AF. This integrated control setup makes it compatible with automated manufacturing and robotic pick-and-place systems.

Can I customize the GUF-P MINI AF for my application?

Yes, the GUF-P MINI AF is fully customizable to your application requirements and ships without accessories so you can configure it to your specific needs. Contact Maschinenbau Kitz for installation support and questions about custom setups.

What materials are used in the GUF-P MINI AF construction?

The GUF-P MINI AF features an aluminum frame with steel rollers designed for durability and modular mounting flexibility. The aluminum T-slot frame enables easy integration with side rails, sensors, and other accessories.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockLightweight

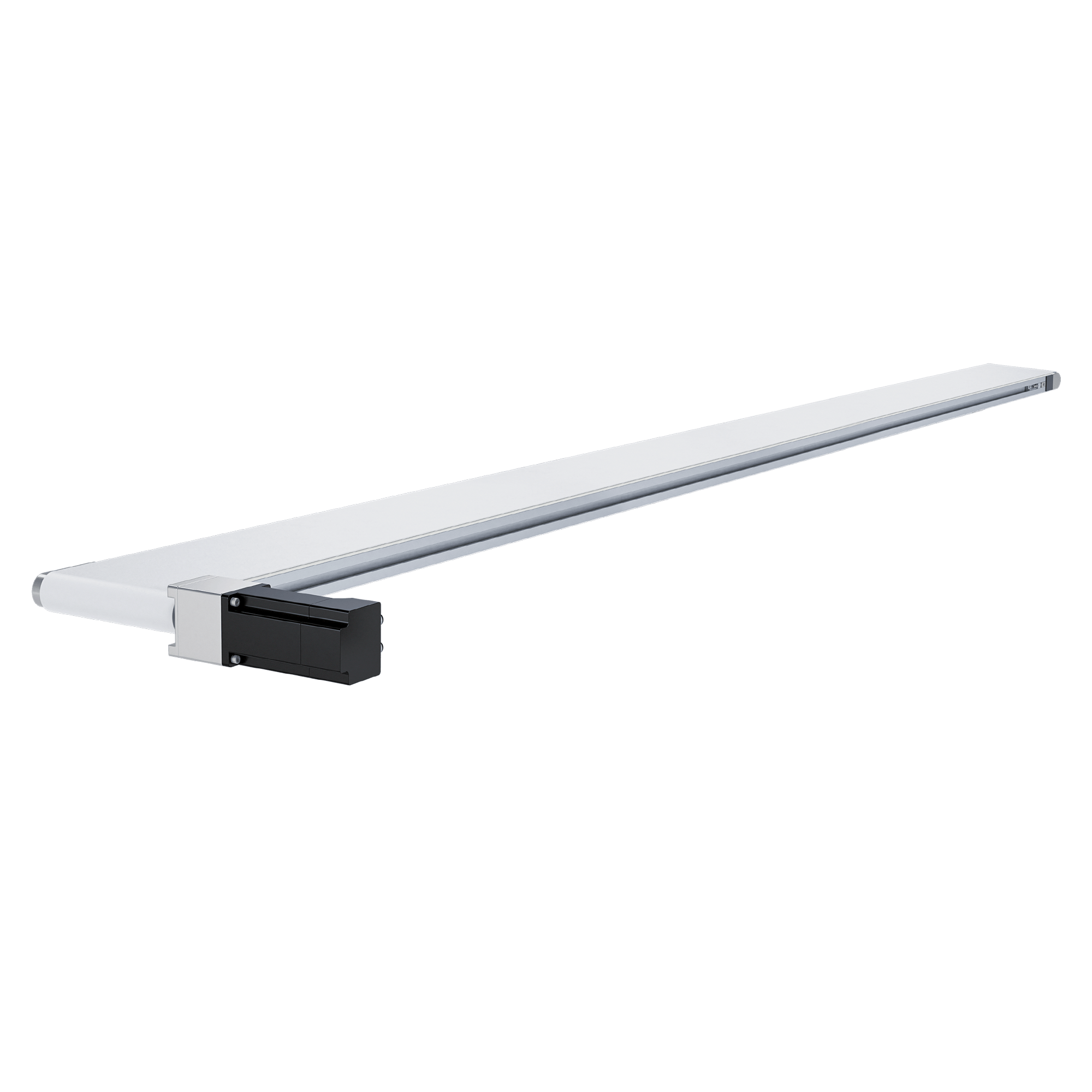

Maschinenbau Kitz Small Conveyor GUF-P MINI AF, 25 kg

Name: Maschinenbau Kitz Small Conveyor GUF-P MINI AF, 25 kg
Brand: Maschinenbau Kitz
SKU: 3552
Price: 1995 USD
Availability: InStock

Maschinenbau Kitz GmbH

$1,995.00

Compact 100 mm × 1,000 mm belt conveyor for handling small parts up to 25 kg in space-constrained automation cells. Features low installation height, T-slot mounting on both sides, and Igus control integration.

Compact Small Conveyor GUF-P MINI AF for Lightweight Material Handling:

The Maschinenbau Kitz Small Conveyor GUF-P MINI AF is a compact belt conveyor designed for precise handling of small, lightweight materials in automation lines and low-volume material handling systems.

Belt width: 100 mm
Belt length: 1000 mm
Payload capacity: 25 kg
Frame material: Aluminum with steel rollers

Key Features for Automation and Integration:

Part of the Maschinenbau Kitz GUF-P MINI conveyor family
Low-profile, modular frame with 10 mm T-slots for flexible mounting
Efficient for applications with limited vertical clearance and smooth transfer needs
Compatible with side rails, sensors and accessories, supporting modular production systems
Supports use on projecting machine beds, uneven floors, or ledges through full-length stand attachment

Controller and Application Suitability:

Control and power supplied via Igus Robot Control system, making the GUF-P MINI AF conveyor suitable for integrated automation, automated manufacturing, and conveying small parts in compact spaces. The mini conveyor is adaptable to custom requirements.

Use Case and Integration Guidance:

Widely used in electronic assembly, small parts packaging, and pick-and-place material transport
Mount directly to automation cells or pair with robots using modular T-slot connectors
Ships without accessories or base frame for flexible configuration

Payload25 kg

Jaw Width100 mm

Stroke Length: 1
000 mm
Model: GUF-P MINI AF
Width: 100 mm
Length: 1,000 mm
Installation Height: minimal
Drive and Idler Roller Diameter: small
Frame: T-slot, 10 mm slot width
Power Supply and Control: Igus Robot Control system
Accessories: Not included
Customization: Available

Accessories sold separately, customize your setup
Igus Robot Control powers and manages operation
Base frame not included, mount directly to your system
Contact us for installation support and questions
Fully customizable to your application requirements
100 mm belt width handles 25 kg payload across 1000 mm length
10 mm T-slot aluminum frame enables modular mounting and integration

: The GUF-P MINI AF handles a maximum payload of 25 kg across its 1000 mm belt length. The 100 mm belt width is sized for small, lightweight materials in compact automation applications.
: The conveyor mounts directly to your automation cell or robot using 10 mm T-slot aluminum frame connectors for modular integration. No base frame is included, so you attach it directly to your existing equipment or structure.
: The Igus Robot Control system powers and manages operation of the GUF-P MINI AF. This integrated control setup makes it compatible with automated manufacturing and robotic pick-and-place systems.
: Yes, the GUF-P MINI AF is fully customizable to your application requirements and ships without accessories so you can configure it to your specific needs. Contact Maschinenbau Kitz for installation support and questions about custom setups.
: The GUF-P MINI AF features an aluminum frame with steel rollers designed for durability and modular mounting flexibility. The aluminum T-slot frame enables easy integration with side rails, sensors, and other accessories.

Small Belt Conveyor vs. Manual or Gravity Conveyor Systems:

The GUF-P MINI AF is a powered, compact belt conveyor for precise material flow in automation lines, unlike manual push conveyors or unpowered gravity systems. Choose it when you need controlled, repeatable transport of small parts in tight spaces.

For parts under 25 kg in cells with limited overhead clearance, the low-profile aluminum frame fits where gravity or roller conveyors cannot.
On high-mix assembly lines, the 10 mm T-slot frame and modular design let you reconfigure mounting and add sensors without redesigning the cell.
In robotic pick-and-place workflows, direct mounting to automation beds via T-slots eliminates separate conveyor infrastructure and reduces footprint.
For smooth, consistent part transfer across 1000 mm runs, the belt handles delicate or precision components better than vibration-prone manual systems.
In electronics or small-parts packaging, Igus Robot Control integration simplifies setup and removes the need for separate PLC wiring.
