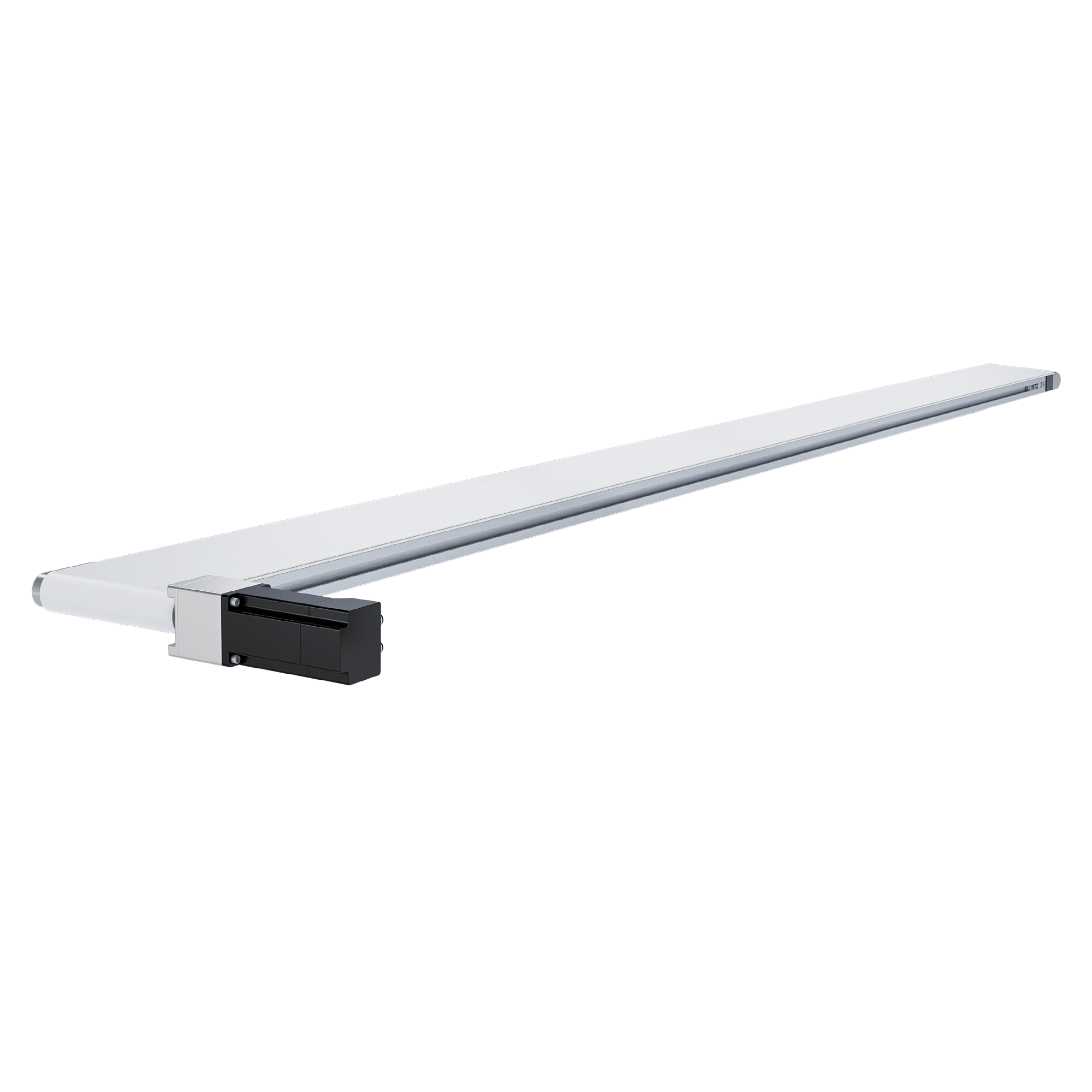

The Small Conveyor GUF-P MINI AF from Maschinenbau Kitz GmbH is a belt conveyor built on a modular profile system for moving small parts and lightweight products.
This unit handles payloads up to 25 kg across a 200 mm wide by 1,500 mm long conveying surface.
Its low-profile design and compact drive and idler rollers make it suitable for integration into tight spaces and minimize transfer gaps between conveying zones.
The conveyor frame features T-slots with 10 mm slot width running along both sides, allowing mounting to machine frames and attachment of side rails, sensors, or other fixturing.
These slots also support optional conveyor stands to accommodate uneven floors or raised machine bed edges.
Power supply and control are provided through the Igus Robot Control interface.
This configuration does not include a base frame or accessories.
Custom modifications are available to match specific application requirements.
Contact Axton Robotics for base frame options or customization.
