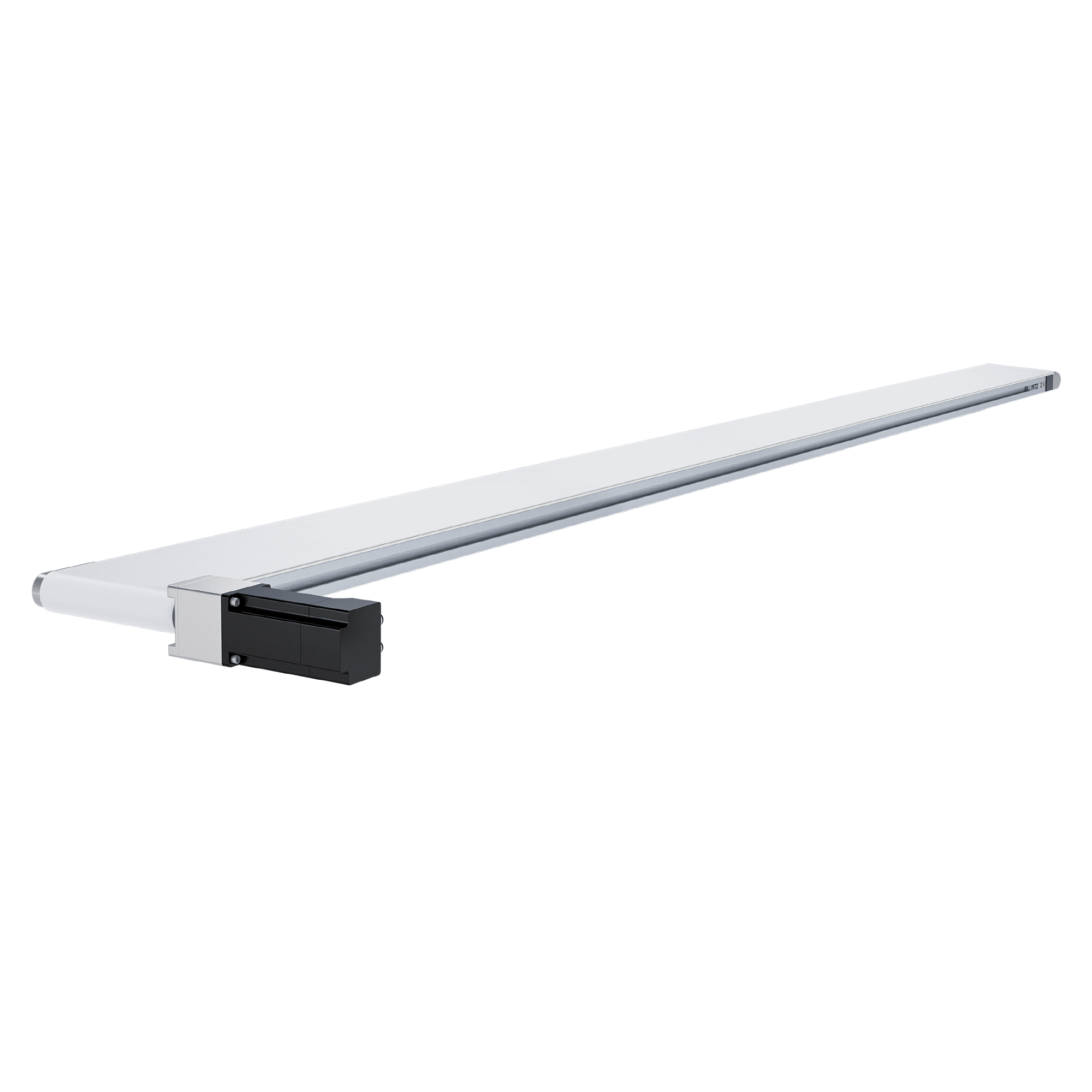

The GUF-P MINI AF is a belt conveyor measuring 200 mm wide by 1,000 mm long, with a 25 kg payload capacity suited to handling small and lightweight components in low-volume applications.
Its low-profile design allows integration into tight spaces where installation height is limited, while the small-diameter drive and idler rollers minimize transfer gaps between conveyor sections or adjacent equipment.
The conveyor frame incorporates T-slots with 10 mm slot width running along both sides, enabling mounting to machine frames and attachment of side rails, sensors, and other peripheral devices.
These slots also support optional conveyor stands that can span the frame's full length to clear uneven floors, machine bed edges, or other obstacles.
Power supply and control are handled through the Igus Robot Control system.
The unit ships without accessories or a base frame.
Customization is available to meet specific application requirements.
