What is a gripper in a robot?

A gripper is an end effector that attaches to a robotic arm to grasp and hold workpieces during automated tasks. The SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N uses pneumatic power to grip small components with 179 N of force and 0.02 mm repeatability for precise handling in manufacturing and assembly workflows.

What are grippers used for?

Grippers handle, position, and move parts during automated manufacturing processes. This SCHUNK model is designed for electronics assembly, laboratory automation, and automated manufacturing where precise handling of small components and workpieces up to 0.7 kg is required.

Can the SCHUNK Pneumatic Gripper work in food production environments?

Yes, this gripper operates reliably in food-grade applications thanks to its food-grade lubrication and can handle continuous-duty work with optional force maintenance. It also operates at ambient temperatures up to 90 degrees Celsius.

How does the SCHUNK gripper mount to my robot?

The SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N features dual-side standardized mounting with four screw directions, enabling modular integration into robotic cells and compatibility with SCHUNK tooling equipment. Its compact 0.24 kg weight fits tight spaces on automated systems.

What is the gripping force and stroke of this gripper?

The SCHUNK Pneumatic Gripper delivers a maximum gripping force of 179 N with a 6 mm jaw stroke, providing precise handling of small components with 0.02 mm repeatability across production cycles.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockPrecise Handling

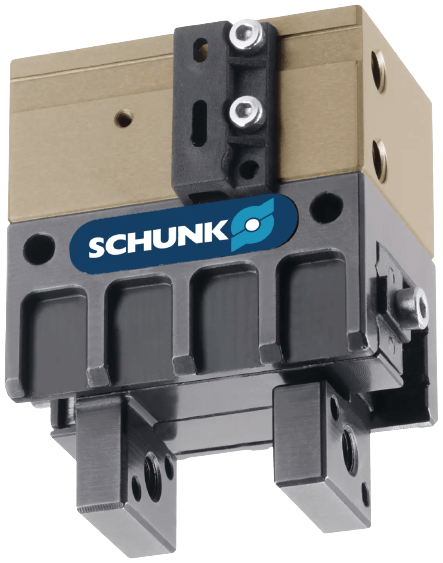

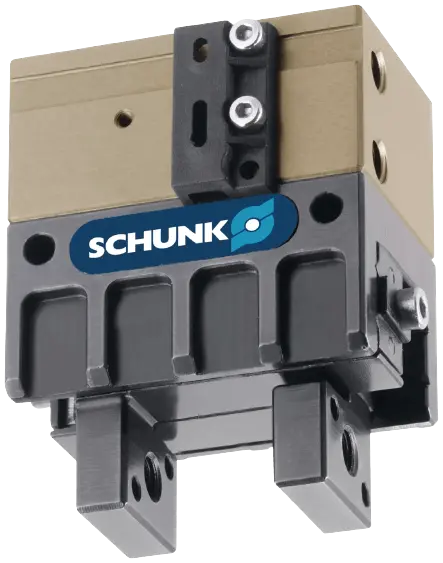

SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N

Name: SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N
Brand: SCHUNK
SKU: 3185
Price: 749 USD
Availability: InStock

SCHUNK GmbH & Co. KG

$749.00

SCHUNK 2-finger pneumatic parallel gripper with 6 mm stroke, 179 N gripping force, and 0.02 mm repeatability for precision handling of small parts up to 0.7 kg in assembly and electronics applications.

SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N:

Pneumatic parallel gripper SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N delivers precision handling of small components for automated manufacturing, laboratory automation, and electronics assembly workflows.

Jaw stroke: 6 mm
Maximum gripping force: 179 N
Repeatability: 0.02 mm
Weight: 0.24 kg

Designed by SCHUNK for reliability in clean environments, the pneumatic gripper features food-grade lubrication and operates at ambient temperatures up to 90°C. Standardized mounting interfaces on two sides and four screw directions support modular integration in robotic cells.

Competitive Positioning:

SCHUNK grippers in this segment offer repeatable accuracy and optional gripping-force maintenance, differentiating from other pneumatic parallel grippers that may lack these features or compact footprint. The combination of precision, reliability, and versatile mounting streamlines installation compared to alternative end effectors.

When to Choose SCHUNK Pneumatic Parallel Gripper:

Ideal for handling workpieces up to 0.7 kg
Suitable for continuous-duty applications with optional force maintenance
Effective in environments requiring food-grade operation and temperatures up to 90°C
Compatible with standardized mounting interfaces across SCHUNK tooling and automation equipment

Weight0.24 kg

Stroke per jaw6 mm

Max Gripping force: 179 N
Recommended workpiece weight: 0.7 kg
Propulsion Method: Pneumatic
Max. ambient temperature: 90 ℃
Repeatability: 0.02 mm
Payload: 0.7 kg
Reach: 6 mm per jaw
Gripping Force: 179 N
Operating temperature: 90°C
Lubrication: Food-grade
Mounting Interface: 4-screw, bidirectional

Grips small components precisely, 179 N maximum force with 6 mm stroke
Food-grade lubrication and optional force maintenance ensure reliability in demanding tasks
Dual-side standardized mounting with four screw directions enables modular integration
Repeats at 0.02 mm for consistent precision across production cycles
Operates reliably at ambient temperatures up to 90 degrees Celsius
Weighs only 0.24 kg, fitting tight robotic cell spaces
Handles workpieces up to 0.7 kg continuously without maintenance downtime

: A gripper is an end effector that attaches to a robotic arm to grasp and hold workpieces during automated tasks. The SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N uses pneumatic power to grip small components with 179 N of force and 0.02 mm repeatability for precise handling in manufacturing and assembly workflows.
: Grippers handle, position, and move parts during automated manufacturing processes. This SCHUNK model is designed for electronics assembly, laboratory automation, and automated manufacturing where precise handling of small components and workpieces up to 0.7 kg is required.
: Yes, this gripper operates reliably in food-grade applications thanks to its food-grade lubrication and can handle continuous-duty work with optional force maintenance. It also operates at ambient temperatures up to 90 degrees Celsius.
: The SCHUNK Pneumatic Gripper, 2-Finger, 6mm Stroke, 179N features dual-side standardized mounting with four screw directions, enabling modular integration into robotic cells and compatibility with SCHUNK tooling equipment. Its compact 0.24 kg weight fits tight spaces on automated systems.
: The SCHUNK Pneumatic Gripper delivers a maximum gripping force of 179 N with a 6 mm jaw stroke, providing precise handling of small components with 0.02 mm repeatability across production cycles.

Pneumatic parallel gripper vs. magnetic or long-stroke alternatives:

Choose this SCHUNK pneumatic gripper when you need high gripping force in a compact, lightweight package for small components. It differs from magnetic grippers (which require ferrous parts) and long-stroke pneumatic models (which sacrifice force for reach).

For parts under 0.7 kg with precision demands, the 179 N force and 0.02 mm repeatability ensure consistent micro-positioning across production cycles without drift.
In tight robotic cells where weight matters, the 0.24 kg body and dual-side modular mounting free space for sensors or secondary tools compared to heavier alternatives.
For food, pharmaceutical, or clean-room assembly, food-grade lubrication and operation to 90°C eliminate the risk of contamination or thermal failure in demanding sterile workflows.
On high-throughput lines gripping delicate electronics or lab samples, optional force maintenance prevents part damage while the 6 mm stroke handles shallow component pockets reliably.
