What are grippers used for

Grippers are end effectors that hold and manipulate workpieces in automation tasks. This SCHUNK 2-finger pneumatic gripper is ideal for pick-and-place operations in electronics assembly, testing, lab automation, and handling small parts in compact automation cells.

What is a gripper in a robot

A gripper is a tool attached to a robot arm that grasps and releases objects. This pneumatic gripper uses parallel jaw movement with 51 N gripping force to precisely handle small components up to 0.19 kg with 0.02 mm repeatability.

Can the SCHUNK pneumatic gripper handle electronics assembly

Yes, this gripper is optimized for electronics assembly and precision pick-and-place tasks. It achieves 0.02 mm positioning repeatability, operates cleanly for laboratory environments, and grips workpieces up to 0.19 kg with its 51 N force and 3 mm stroke per jaw.

How do you mount a pneumatic gripper to a robot

The SCHUNK gripper mounts from two sides with fasteners accepted in four screw directions, providing flexible modular integration into robotic systems and compact automation cells.

What temperature can this gripper operate at

The SCHUNK pneumatic gripper operates up to 90°C. It uses food-grade lubrication and maintains clean operation suitable for laboratory and food environments.

Does this gripper maintain force if pneumatic pressure is lost

The gripper offers optional gripping-force maintenance that provides reliability during power or pressure loss, protecting held workpieces.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockPneumatic Precision

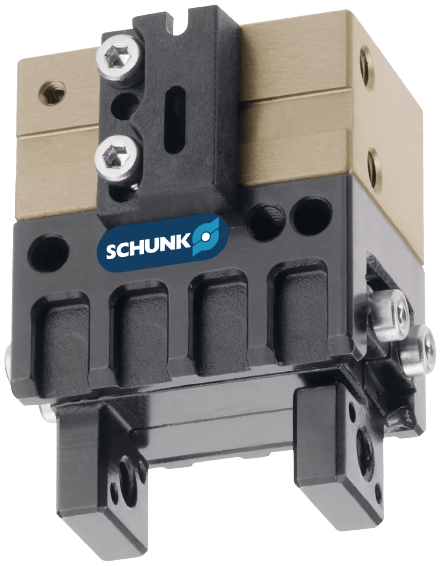

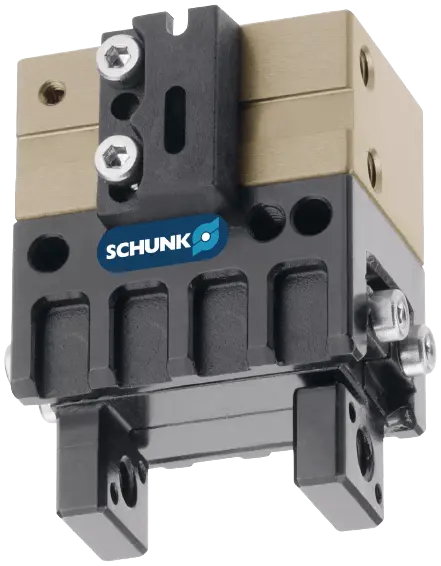

SCHUNK Pneumatic Gripper, 2-Finger, 3mm Stroke, 51 N

Name: SCHUNK Pneumatic Gripper, 2-Finger, 3mm Stroke, 51 N
Brand: SCHUNK
SKU: 3183
Price: 695 USD
Availability: InStock

SCHUNK GmbH & Co. KG

$695.00

SCHUNK pneumatic parallel gripper for precision handling of small components. Delivers 51 N gripping force, 3 mm stroke per jaw, and 0.02 mm repeatability. Rated for workpieces up to 0.19 kg. Compact at 0.07 kg, operates to 90°C, and includes food-grade lubrication and optional force-maintenance for assembly, testing, and pick-and-place automation.

SCHUNK 2-finger pneumatic gripper is a compact parallel gripper engineered for precise handling of small workpieces in automation and electronics assembly.

Specifications:

Stroke per jaw: 3 mm
Maximum gripping force: 51 N
Workpiece weight: up to 0.19 kg
Repeatability: 0.02 mm
Operating temperature: up to 90°C
Unit weight: 0.07 kg
Mounting interface: fasteners accepted from two sides, four screw directions
Food-grade lubrication
Manufacturer part number: [Part number from source]

Features:

Small pneumatic gripper form factor integrates easily in space-limited automation cells
Optional gripping-force maintenance provides reliability during power or pressure loss
Parallel jaw movement supports small precision gripping tasks
Clean operation suitable for laboratory and electronics environments

Applications:

Electronics assembly gripper: ideal for pick-and-place of miniature components
Testing operations requiring consistent positioning accuracy
Lab automation and small part handling
General automation for small parts in compact installations

Compliance:

Meets food-grade lubrication requirements
Contact SCHUNK for ISO or CE certification details

Weight0.07 kg

Stroke per jaw3 mm

Max Gripping force: 51 N
Recommended workpiece weight: 0.19 kg
Propulsion Method: Pneumatic
Max. ambient temperature: 90 ℃
Repeatability: 0.02 mm
Payload: 0.19 kg
Stroke: 3 mm
Gripping Force: 51 N
Operating temperature: up to 90°C
Lubrication: Food-grade
Mounting Interface: Four-direction screw mount

Grips small components with 51 N force, optimized parallel jaw design
Food-grade lubrication and optional gripping-force maintenance ensure reliability
Mount from two sides, four screw directions for modular integration
Repeats positioning to 0.02 mm, ideal for electronics assembly
Handles up to 0.19 kg workpieces in compact automation cells
Operates to 90°C, stays clean for lab and food environments
3 mm stroke per jaw powers precise pick-and-place tasks
Fasteners can be inserted from two sides.

: Grippers are end effectors that hold and manipulate workpieces in automation tasks. This SCHUNK 2-finger pneumatic gripper is ideal for pick-and-place operations in electronics assembly, testing, lab automation, and handling small parts in compact automation cells.
: A gripper is a tool attached to a robot arm that grasps and releases objects. This pneumatic gripper uses parallel jaw movement with 51 N gripping force to precisely handle small components up to 0.19 kg with 0.02 mm repeatability.
: Yes, this gripper is optimized for electronics assembly and precision pick-and-place tasks. It achieves 0.02 mm positioning repeatability, operates cleanly for laboratory environments, and grips workpieces up to 0.19 kg with its 51 N force and 3 mm stroke per jaw.
: The SCHUNK gripper mounts from two sides with fasteners accepted in four screw directions, providing flexible modular integration into robotic systems and compact automation cells.
: The SCHUNK pneumatic gripper operates up to 90°C. It uses food-grade lubrication and maintains clean operation suitable for laboratory and food environments.
: The gripper offers optional gripping-force maintenance that provides reliability during power or pressure loss, protecting held workpieces.

Pneumatic gripper vs. longer-stroke or higher-force alternatives:

Choose this gripper when you need a compact, precision tool for small components in space-constrained cells. It trades larger stroke and higher gripping force for repeatability and a minimal footprint.

For parts under 0.19 kg in electronics assembly or pick-and-place tasks, the 51 N force and 0.02 mm repeatability ensure consistent positioning without oversizing the end effector.
In tight automation cells where headroom is limited, the small form factor and dual-side mountable interface free up space for additional tooling or a lower gripper profile.
For delicate components or precision applications requiring 0.02 mm repeat accuracy, this gripper outperforms longer-stroke models where travel distance introduces variability.
In laboratory and food environments, food-grade lubrication and clean operation keep contamination risk low without compromise to reliability.
When pneumatic supply is subject to pressure loss, optional gripping-force maintenance safeguards small parts against accidental release during changeover or maintenance.
