What is the main purpose of a gripper?

A gripper is an end effector that secures and manipulates parts during automated handling tasks. The SCHUNK EMH RP 036 grips ferromagnetic parts with 530 N force for applications like sheet-metal handling, bin picking, and pick-and-place operations on robot arms.

Can the SCHUNK EMH RP 036 hold parts vertically?

The gripper maintains vertical payload of up to 3.5 kg thanks to its electro-permanent magnetic design and power-off hold capability. Horizontal payload capacity is higher at 8.5 kg.

Does an electric gripper need continuous power?

The SCHUNK EMH RP 036 uses brief 24 V DC pulses to activate and release, then maintains its grip without continuous power draw. This energy-efficient design reduces operating costs and heat generation.

What are the disadvantages of using a magnetic gripper?

Magnetic grippers like the SCHUNK EMH RP 036 only work with ferromagnetic parts and are not suitable for non-magnetic materials. The vertical payload is also lower than horizontal capacity due to gravity.

How fast does the SCHUNK EMH RP 036 grab and release?

The gripper completes grab or release in 300 ms with a single brief 24 V DC pulse. This fast cycle time supports high-speed pick-and-place automation.

Is the SCHUNK EMH RP 036 suitable for dirty or wet environments?

The gripper is IP52 rated, making it suitable for clean and lightly contaminated industrial environments. It is not designed for heavily contaminated, wet, or washdown applications.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock60 N Grip

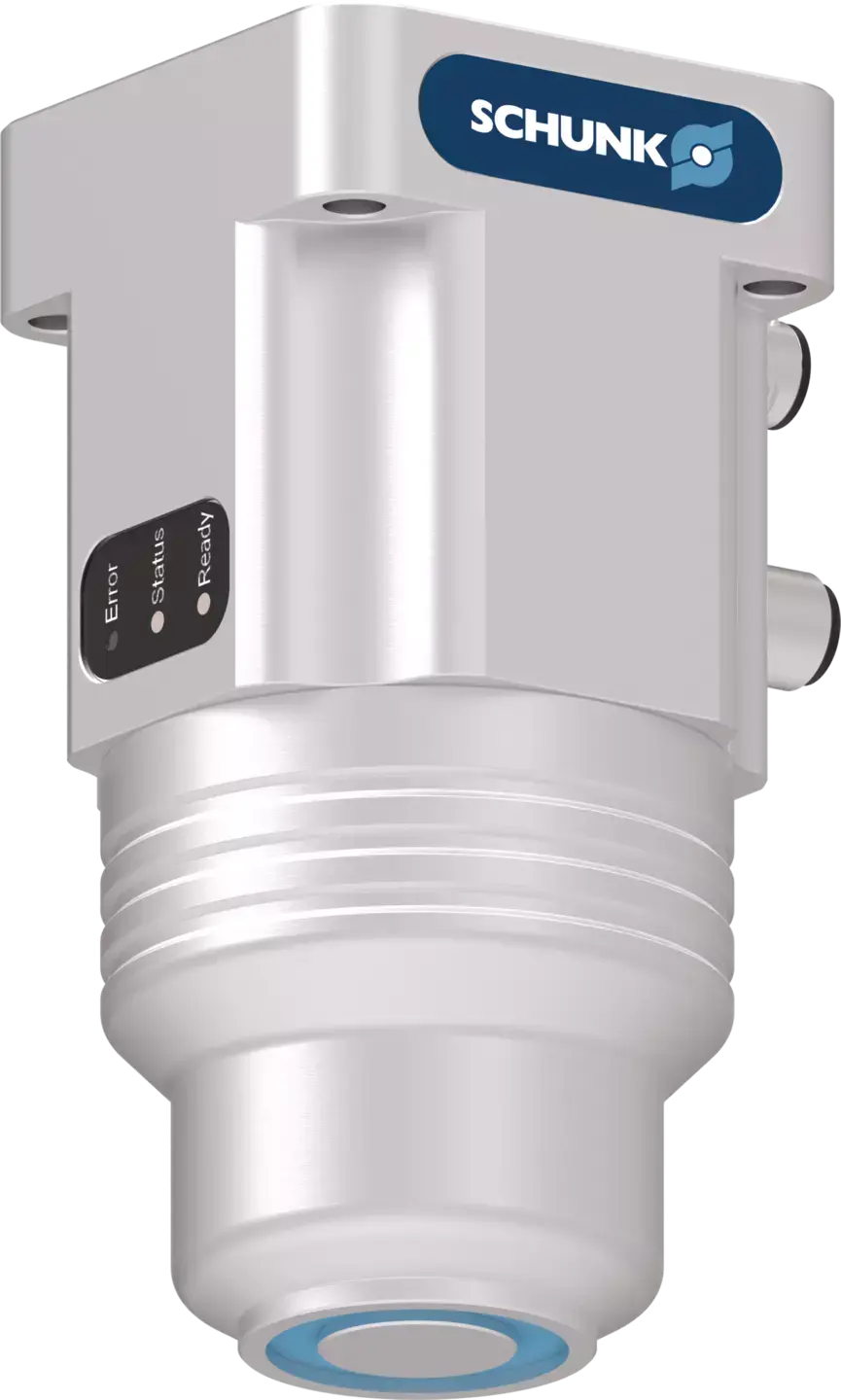

SCHUNK EMH RP 036 Electric Gripper, 530 N

Name: SCHUNK EMH RP 036 Electric Gripper, 530 N
Brand: SCHUNK
SKU: 3226
Price: 2995 USD
Availability: InStock

SCHUNK GmbH & Co. KG

$2,995.00

SCHUNK EMH RP 036 electro-permanent magnetic gripper with 530 N holding force and 6.08 cm² contact area. Handles ferromagnetic parts up to 8.5 kg horizontally or 3.5 kg vertically with 24 V DC pulse activation and 300 ms switching time. Maintains grip without continuous power, IP52 rated, 1 kg compact design for robot mounting.

Overview:

SCHUNK EMH RP 036 electric magnetic gripper is engineered for secure handling of ferromagnetic parts in industrial automation and collaborative robot applications.

Main Features:

Gripping force: 530 N
Payload capacity: up to 8.5 kg horizontal, 3.5 kg vertical
Activation time: 300 ms
Operating voltage: 24 V DC (pulse)
Weight: 1 kg
IP52 rated, suitable for clean or lightly contaminated industrial environments

Applications:

Sheet-metal handling
Bin picking
Robot-mounted pick-and-place operations

Designed for mounting on collaborative and industrial robot arms, the SCHUNK EMH RP 036 is ideal where payload and space restrictions exist.

Operation and Integration:

The electro-permanent holding mechanism uses brief 24 V DC pulses for activation and release, maintaining grip without continuous power. Integrated logic electronics supply ready and error feedback for simplified PLC integration.

Safety and Adaptability:

Power-off hold capability ensures safe gripping during electrical interruption
Optional pole extensions allow adaptation to various part shapes

Certifications and Compliance:

IP52 ingress protection confirms suitability for light industrial contamination. For further compliance such as CE or specific safety standards, refer to the manufacturer’s documentation.

Frequently Asked Questions:

How much weight can the SCHUNK EMH RP 036 hold? Horizontal payload up to 8.5 kg, vertical payload up to 3.5 kg.
What is the activation time? 300 ms activation or release with a brief DC pulse.
What voltage does the gripper use? 24 V DC for actuation.
Is the gripper suitable for sheet metal handling? Yes, it is engineered for reliable gripping of ferromagnetic materials commonly found in sheet-metal applications.

Weight1 kg

Max Gripping force530 N

Propulsion MethodElectric

Max. ambient temperature: 50 ℃
Payload (Horizontal): 8.5 kg
Payload (Vertical): 3.5 kg
Gripping Force: 530 N
Magnetic Surface Area: 6.08 cm²
Activation/Release Time: 300 ms
Mounting Weight: 1 kg
IP Rating: IP52
Max Ambient Temperature: 50°C
Power Supply: 24 VDC

Grips ferromagnetic parts powerfully, 530 N force, energy-efficient electro-permanent magnetic design
Handles 8.5 kg horizontal or 3.5 kg vertical payload on collaborative and industrial robots
Grabs and releases in 300 ms with brief 24 V DC pulse, no continuous power needed
IP52 rated for clean and lightly contaminated industrial environments
Maintains grip safely during power loss with power-off hold capability
Weighs just 1 kg, compact for space-restricted mounting applications
Integrates simply via 24 V DC with ready and error feedback for PLC control

: A gripper is an end effector that secures and manipulates parts during automated handling tasks. The SCHUNK EMH RP 036 grips ferromagnetic parts with 530 N force for applications like sheet-metal handling, bin picking, and pick-and-place operations on robot arms.
: The gripper maintains vertical payload of up to 3.5 kg thanks to its electro-permanent magnetic design and power-off hold capability. Horizontal payload capacity is higher at 8.5 kg.
: The SCHUNK EMH RP 036 uses brief 24 V DC pulses to activate and release, then maintains its grip without continuous power draw. This energy-efficient design reduces operating costs and heat generation.
: Magnetic grippers like the SCHUNK EMH RP 036 only work with ferromagnetic parts and are not suitable for non-magnetic materials. The vertical payload is also lower than horizontal capacity due to gravity.
: The gripper completes grab or release in 300 ms with a single brief 24 V DC pulse. This fast cycle time supports high-speed pick-and-place automation.
: The gripper is IP52 rated, making it suitable for clean and lightly contaminated industrial environments. It is not designed for heavily contaminated, wet, or washdown applications.

Electric magnetic gripper versus pneumatic or finger-based grippers:

The SCHUNK EMH RP 036 uses electro-permanent magnetic force to grip ferromagnetic parts, offering a fundamentally different approach from pneumatic grippers (which require continuous air supply) or two-finger mechanical grippers (which rely on finger geometry and friction). Choose this gripper when handling steel or iron parts where magnetic hold is reliable and space or energy efficiency matters.

For sheet-metal picking in bin-picking cells, the 530 N magnetic hold eliminates the need for pneumatic lines and tubing clutter in confined robot arms.
On space-restricted collaborative robots carrying delicate fixtures, the 1 kg weight and compact body free payload for tool or sensor mounting versus heavier pneumatic or mechanical alternatives.
In applications where power loss must not drop the part, the power-off hold capability maintains grip safety without continuous energy draw, unlike pneumatic systems that leak or mechanical grippers that slip.
For high-throughput pick-and-place on ferromagnetic parts, the 300 ms grab-and-release cycle keeps pace with fast automated lines while the brief 24 V pulse reduces compressed-air consumption compared to pneumatic actuation.
In lightly contaminated sheet-metal or automotive assembly environments, the IP52 rating handles shop-floor debris where purely mechanical grippers may jam.
