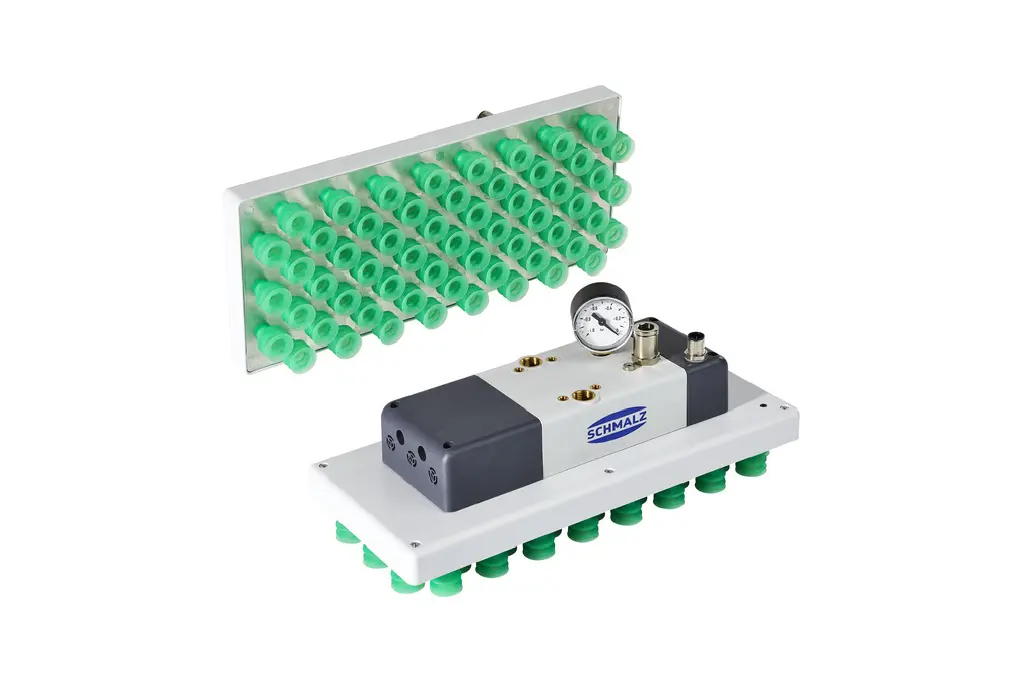

Schmalz FQE Xc Vacuum Gripper

Schmalz FQE Xc Area Vacuum Gripper for Cobots is a lightweight robot vacuum gripper with integrated vacuum generation, designed for collaborative and small industrial robots handling flat or slightly contoured workpieces.

Key Features:

• Integrated vacuum: No external pump or pneumatic lines required, reducing installation complexity and maintenance cost compared to separate pump solutions.
• Lightweight design: Weighs only 0.33 kg, enabling payload optimization and faster cycle times for cobots.
• Distributed suction cells: Features 16 suction cells for consistent holding force and secure gripping, even with partially covered surfaces.
• Compact form factor: Designed for direct mounting to robots using ISO 9409 connection patterns.

Specifications:

• Weight: 0.33 kg
• Holding force: up to 78 N (at -200 mbar vacuum level)
• Contact area: 80 mm x 120 mm with 16 suction cells
• Mounting interface: ISO 9409 for direct connection to most cobot brands

Applications:

• Electronics assembly: Reliable handling of circuit boards and display panels with flat surfaces.
• Light packaging tasks: Carton picking, light box transfer, and case packing in food handling.
• Pick-and-place automation: Efficient for handling sheet materials, films, and lightweight panels.

When to choose the Schmalz FQE Xc:

• Ideal for cobots and small industrial robots where payload limits and fast response are required.
• Suitable for applications demanding a suction gripper without external pumps, resulting in lower setup and maintenance costs.
• Engineered for gripping flat or slightly contoured workpieces in scenarios where surface coverage may be incomplete.
