Can the Schmalz CobotPump work without compressed air?

The CobotPump operates fully electrically and requires no compressed air, which simplifies installation and eliminates the need for pneumatic infrastructure. The electric operation makes it ideal for flexible automation environments where air lines are not available.

Is the Schmalz CobotPump compatible with Universal Robots?

Yes, the CobotPump has optimized mounts for Universal Robots and includes optional URCap software for fast commissioning using the Plug and Work principle. It is also compatible with FANUC, ABB, Dobot, igus, and other collaborative robot platforms.

What payload can the model 10.03.01.00556 handle?

The CobotPump can handle payloads up to 3 kg, making it suitable for pick-and-place and bin-picking tasks with airtight and minimally porous parts.

How much does the CobotPump weigh?

The CobotPump weighs 0.225 kg, making it lightweight and safe for integration with collaborative robots while supporting extended reach.

What vacuum level does the CobotPump generate?

The CobotPump generates up to minus 600 mbar vacuum with a flow rate of 0.096 m3 per hour to reliably handle the specified payloads.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockElectric Powered

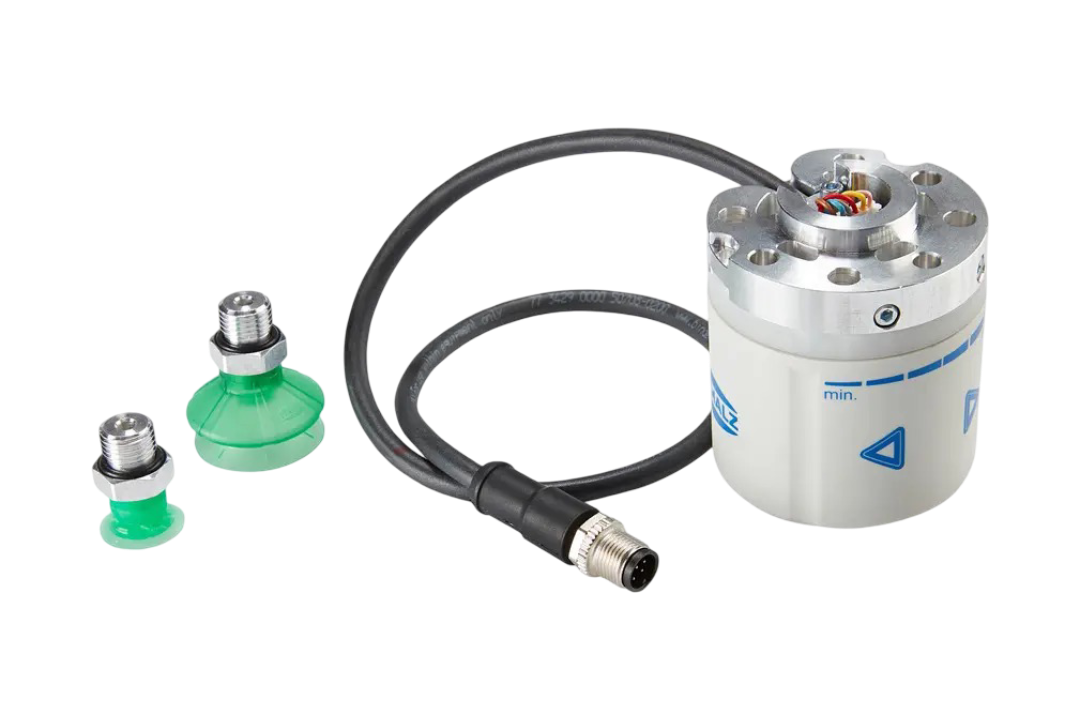

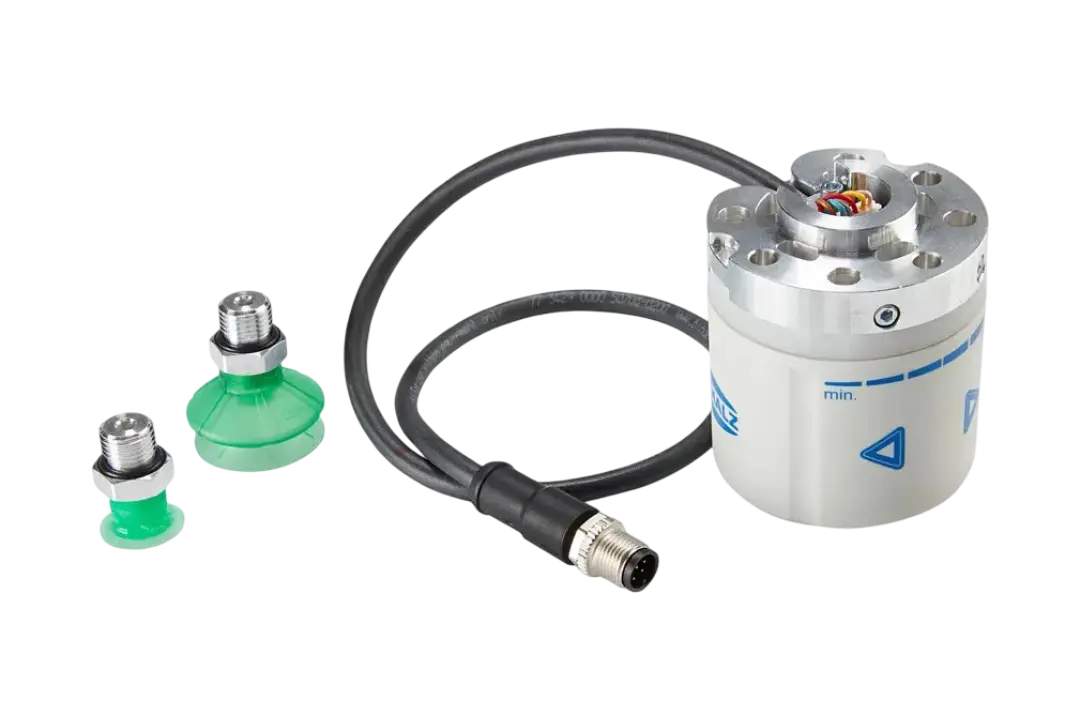

Schmalz CobotPump Electric Vacuum Pump

Name: Schmalz CobotPump Electric Vacuum Pump
Brand: Schmalz
SKU: 3080
Price: 1995 USD
Availability: InStock

Schmalz

$1,995.00

Electric vacuum pump for collaborative robots. Generates -600 mbar vacuum, handles payloads up to 3 kg, and requires no compressed air. Weighs 0.225 kg and integrates with Universal Robots, FANUC, ABB, Dobot, igus, and other cobot platforms via Plug & Work design.

Overview:

Schmalz CobotPump Electric Vacuum Pump is a pneumatic-free vacuum gripper specifically designed for collaborative robot end-of-arm tooling in flexible automation environments.

Specifications:

Part Number: 10.03.01.00556
Weight: 0.225 kg
Vacuum: Up to -600 mbar
Flow Rate: 0.096 m3/h
Payload: Up to 3 kg
Power Type: Electric

Applications:

Pick-and-place for airtight and minimally porous parts
Packaging automation
Assembly tasks
Bin-picking

Compatible Robots:

Universal Robots
FANUC
ABB
Dobot
igus
Other collaborative and lightweight robot platforms

Integrated Plug & Work design and optional URCap software streamline commissioning with compatible systems.

Features and Benefits:

Pneumatic-free operation: Schmalz CobotPump operates fully electrically, eliminating the need for compressed air and simplifying installation.
Compact and lightweight: 0.225 kg mass supports safe cobot integration and extended reach.
Efficient vacuum generation: Up to -600 mbar vacuum and 0.096 m3/h flow rate ensure reliable handling for payloads up to 3 kg.

Weight0.225 kg

Max Payload0.3 kg

Max Vacuum value: -600 mbar
Max Rated flow: 0.096
Vacuum: -600 mbar
Maximum Flow: 0.096 m³/h
Maximum Payload: 3 kg
Compatible Robots: Universal Robots
FANUC
ABB
Dobot
igus
Interface: Plug & Work, URCap software
Applications: Packaging
Pick-and-place
Assembly
Bin-picking

No compressed air needed, electric operation simplifies installation
Optimized mounts for Universal Robots, FANUC, ABB, Dobot, igus and more
Plug & Work principle with optional URCap software enables fast commissioning
Lightweight at 0.225 kg, safe for collaborative robot integration
Generates up to -600 mbar vacuum, 0.096 m3/h flow rate
Handles payloads up to 3 kg for pick-and-place and bin-picking
Part number 10.03.01.00556, pneumatic-free vacuum gripper for flexible automation

: The CobotPump operates fully electrically and requires no compressed air, which simplifies installation and eliminates the need for pneumatic infrastructure. The electric operation makes it ideal for flexible automation environments where air lines are not available.
: Yes, the CobotPump has optimized mounts for Universal Robots and includes optional URCap software for fast commissioning using the Plug and Work principle. It is also compatible with FANUC, ABB, Dobot, igus, and other collaborative robot platforms.
: The CobotPump can handle payloads up to 3 kg, making it suitable for pick-and-place and bin-picking tasks with airtight and minimally porous parts.
: The CobotPump weighs 0.225 kg, making it lightweight and safe for integration with collaborative robots while supporting extended reach.
: The CobotPump generates up to minus 600 mbar vacuum with a flow rate of 0.096 m3 per hour to reliably handle the specified payloads.

Electric vacuum gripper versus pneumatic-powered alternatives:

The CobotPump operates fully on electric power, eliminating the compressed-air infrastructure that pneumatic grippers require. This simplifies cell design, reduces installation complexity, and removes the need for air supply lines and regulators on collaborative robot arms.

For tight cobot cells where air hose routing is impractical, electric operation removes installation barriers and frees workspace.
For payloads up to 3 kg on airtight or low-porosity parts, the -600 mbar vacuum and 0.096 m3/h flow rate deliver reliable pick-and-place and bin-picking performance.
At 0.225 kg, the lightweight design preserves payload capacity on Universal Robots, FANUC, ABB, Dobot and igus platforms without sacrificing reach.
For fast commissioning, Plug & Work design and optional URCap software cut integration time on compatible collaborative robots.
