Will the Schmalz CobotPump ECBPMi work without a compressed air supply?

Yes, the CobotPump ECBPMi operates entirely on electric power with no need for facility compressed air infrastructure. This makes it suitable for sites without pneumatic systems or looking to reduce installation complexity.

What robots is the Schmalz CobotPump compatible with?

The CobotPump is compatible with Universal Robots, FANUC, ABB, Dobot, and igus cobot platforms. Optional URCap software enables Plug & Work deployment specifically with Universal Robots.

How much weight can the CobotPump lift?

The CobotPump reliably lifts up to 3 kg payload on airtight workpieces. Its lightweight design at 0.225 kg also preserves the cobot arm's remaining payload capacity.

What vacuum level does the CobotPump generate?

The CobotPump generates up to -0.6 mbar vacuum for secure grip and hold on airtight surfaces.

What temperature range is the CobotPump rated for?

The CobotPump operates safely within a temperature range of 0-40 degrees Celsius.

What types of parts can the CobotPump handle?

The CobotPump is optimized for flat, airtight workpieces and is commonly used for pick-and-place, packaging, assembly, and bin-picking applications.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockElectric Powered

Schmalz CobotPump Electric Vacuum Pump

Name: Schmalz CobotPump Electric Vacuum Pump
Brand: Schmalz
SKU: 3084
Price: 2895 USD
Availability: InStock

Schmalz

$2,895.00

Schmalz CobotPump (ECBPMi) is an electric vacuum pump for collaborative robots that grips workpieces up to 3 kg without compressed air. Generates -0.6 mbar vacuum at 1.6 flow rate, weighs 0.225 kg, and integrates with Universal Robots, FANUC, ABB, Dobot, and igus platforms for pick-and-place, packaging, and assembly tasks.

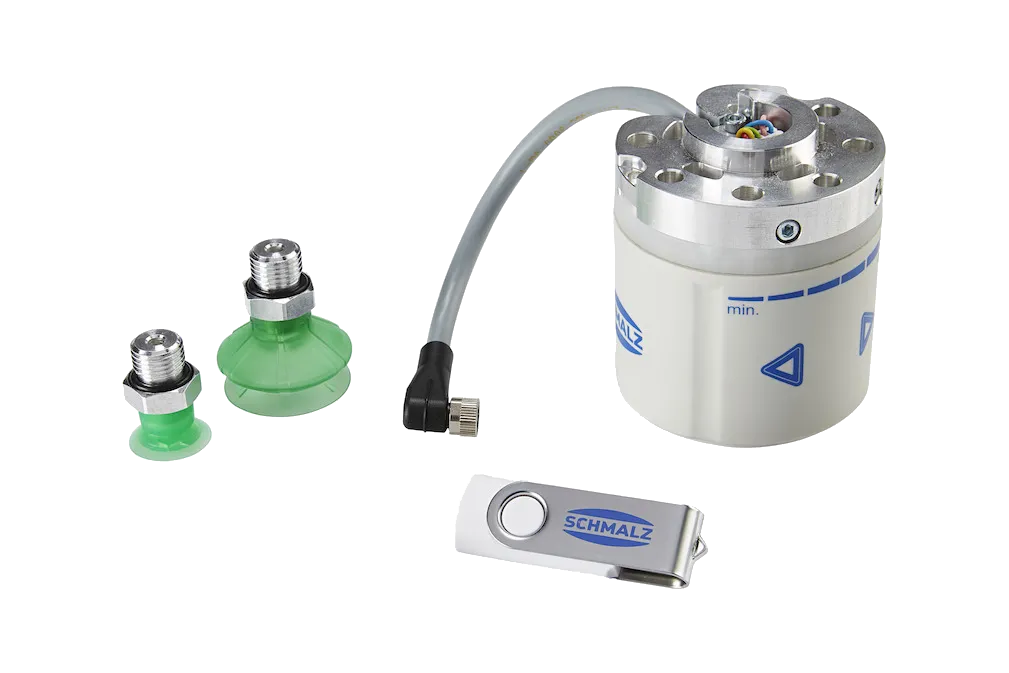

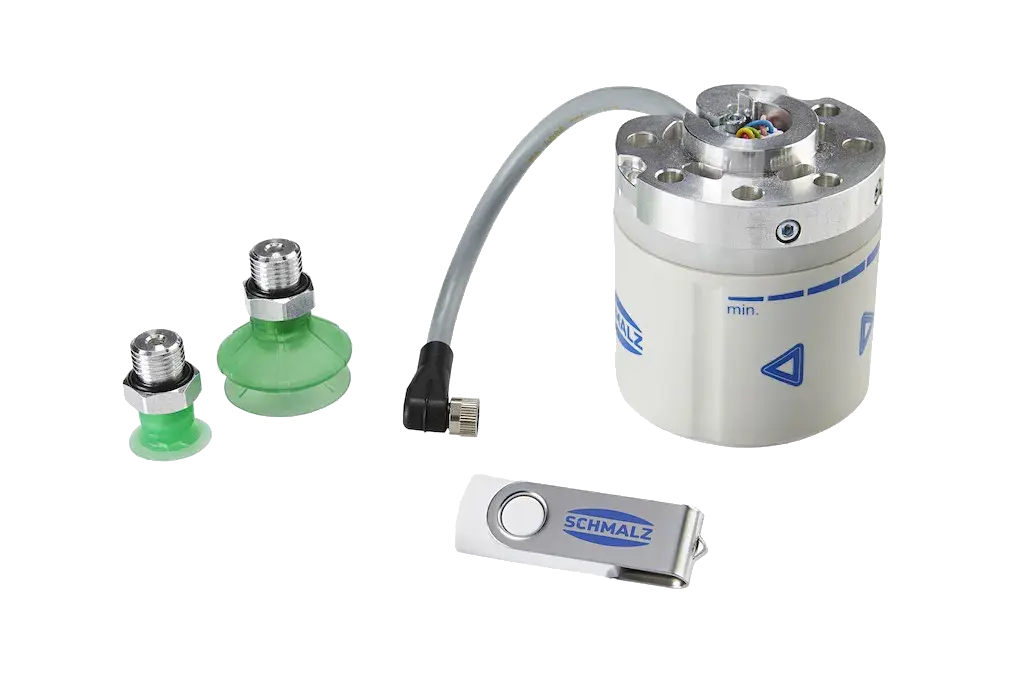

The Schmalz CobotPump Electric Vacuum Pump (model ECBPMi, part number 10.03.01.00618) is an electric vacuum pump designed for precise cobot-based material handling with collaborative and lightweight robot systems.

Specifications:

Weight: 0.225 kg
Vacuum: up to -0.6 mbar
Flow: 1.6 (unit per source)
Payload capacity: up to 3 kg
Temperature range: 0-40°C

Compatibility:

Schmalz CobotPump is tailored for integration with Universal Robots, FANUC, ABB, Dobot, and igus cobot platforms. The electric design eliminates the need for compressed air, making it suitable for sites lacking a pneumatic infrastructure or aiming to lower installation costs. Optional URCap software enables Plug & Work deployment with Universal Robots.

Applications:

Pick-and-place
Packaging
Assembly
Bin-picking

Optimized for airtight workpieces within the 3 kg payload range, the electric vacuum pump supports automation in varied industrial settings.

Benefits of the Electric CobotPump:

Removes the need for costly compressed air lines
Reduces system complexity with direct electrical operation
Lightweight, supporting cobot arms for increased payload utilization
Simple installation and integration with major cobot brands

Comparison to Pneumatic Alternatives:

Compared to pneumatic vacuum generators, the electric Schmalz CobotPump Electric Vacuum Pump provides plug-and-play simplicity without pneumatic infrastructure, reduces maintenance, and operates more efficiently in low-compressed air environments. Competing pneumatic vacuum pumps cannot match this level of independence or installation flexibility on cobots.

Frequently Asked Questions:

Can Schmalz CobotPump work offline? Yes, the electric control allows for offline operation independent of facility air supply.
What surfaces work best? Flat, airtight workpieces provide reliable gripping within the rated payload.
What are the maintenance requirements? Maintenance is minimal due to the absence of pneumatic lines, but regular inspection is recommended.
Is the Schmalz CobotPump Electric Vacuum Pump suitable for all cobots? The design supports leading platforms including Universal Robots and FANUC, check specification for payload and mounting details.

Weight0.225 kg

Max Payload0.3 kg

Max Vacuum value: -0.6 mbar
Max Rated flow: 1.6
Temperature range: 0-40
Model: ECBPMi
Payload: 3 kg
Vacuum Level: -0.6 mbar
Flow Rate: 1.6 l/min

Skip compressed air infrastructure, electric operation simplifies installation
Fits Universal Robots, FANUC, ABB, Dobot, igus cobot platforms
Plug & Work principle with optional URCap software enables fast commissioning
Lifts up to 3 kg payload on airtight workpieces reliably
Generates up to -0.6 mbar vacuum for secure grip and hold
Weighs just 0.225 kg, preserves cobot arm payload capacity
Operates offline without facility air supply, independent and flexible

: Yes, the CobotPump ECBPMi operates entirely on electric power with no need for facility compressed air infrastructure. This makes it suitable for sites without pneumatic systems or looking to reduce installation complexity.
: The CobotPump is compatible with Universal Robots, FANUC, ABB, Dobot, and igus cobot platforms. Optional URCap software enables Plug & Work deployment specifically with Universal Robots.
: The CobotPump reliably lifts up to 3 kg payload on airtight workpieces. Its lightweight design at 0.225 kg also preserves the cobot arm's remaining payload capacity.
: The CobotPump generates up to -0.6 mbar vacuum for secure grip and hold on airtight surfaces.
: The CobotPump operates safely within a temperature range of 0-40 degrees Celsius.
: The CobotPump is optimized for flat, airtight workpieces and is commonly used for pick-and-place, packaging, assembly, and bin-picking applications.

Electric vacuum pump versus pneumatic vacuum grippers:

Choose the Schmalz CobotPump Electric Vacuum Pump when you need vacuum gripping without compressed air infrastructure. It differs from pneumatic vacuum grippers by running directly on electricity, eliminating the need for facility air lines and simplifying installation on cobots.

No pneumatic infrastructure required. Sites without compressed air or aiming to avoid air line costs can deploy the pump in minutes without facility modifications.
Lightweight at 0.225 kg, it preserves cobot arm payload capacity better than heavier pneumatic setups, freeing more capacity for tools or parts.
For airtight flat parts up to 3 kg, the pump generates up to -0.6 mbar vacuum for reliable grip and hold in pick-and-place, packaging, assembly, and bin-picking tasks.
Offline operation means independent gripping control without dependency on central air supply pressure or regulators.
Plug and Work commissioning with optional URCap software on Universal Robots reduces setup time versus configuring pneumatic systems.
