What is a safety light curtain?

A safety light curtain is an industrial safety device that detects hands or larger objects crossing a protective field to prevent access to hazardous machinery. The SICK deTec4 Core uses infrared light beams to monitor a 1050 mm tall zone and triggers an emergency stop if intrusion is detected.

What detection resolution does the SICK deTec4 Core 30 mm have?

The SICK deTec4 Core Safety Light Curtain, 30 mm, 1050 mm detects hands reliably with 30 mm resolution across its protective field. This 30 mm spacing offers precise hand detection suitable for areas requiring hand protection.

How far can this light curtain detect?

The SICK deTec4 Core can see up to 15 meters away, providing flexible coverage for various machine layouts and work cell sizes.

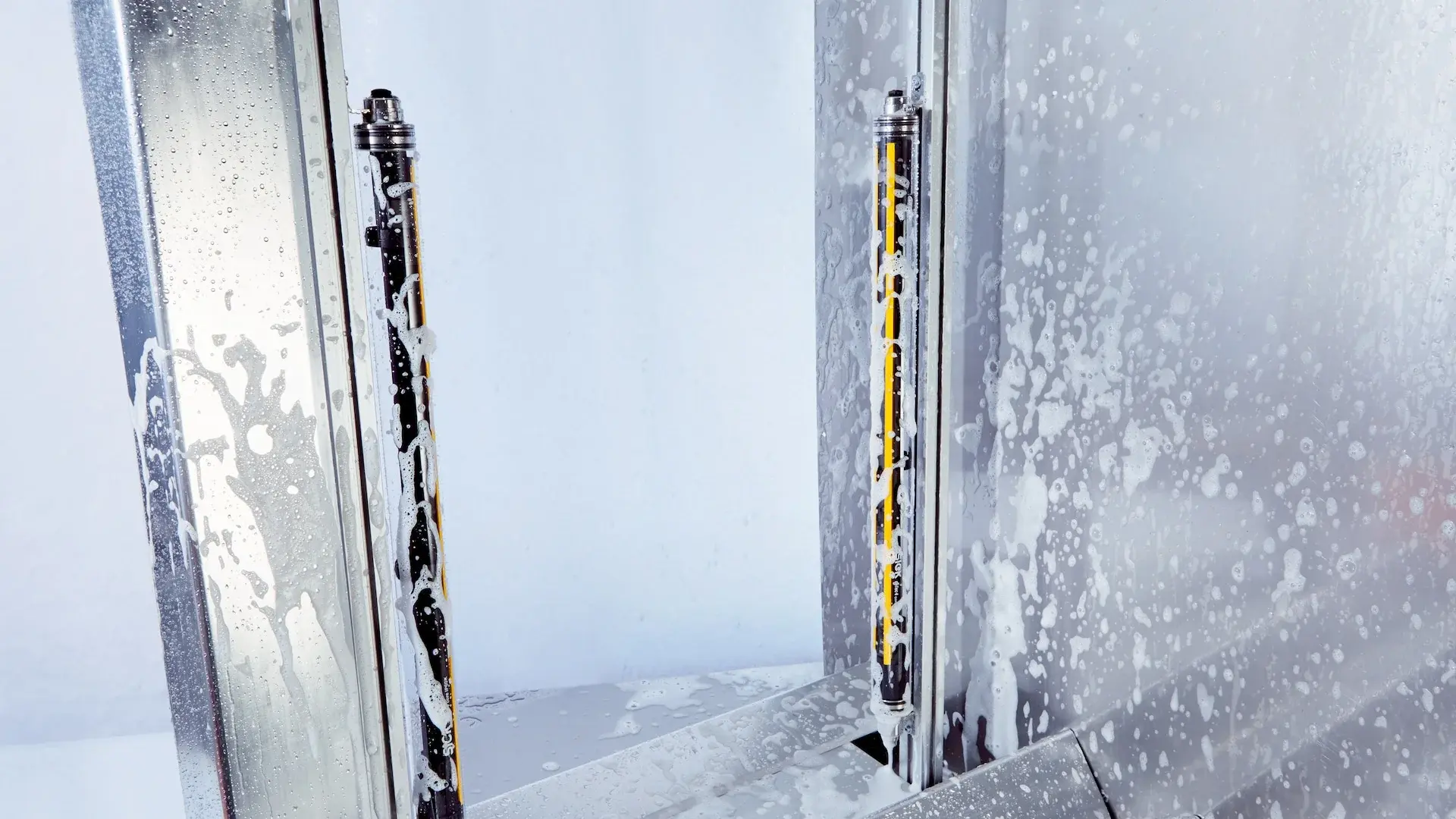

Can I use this light curtain in a washdown environment?

Yes, the SICK deTec4 Core is IP65 and IP67 rated to handle dust and moisture in washdown environments and other challenging industrial settings.

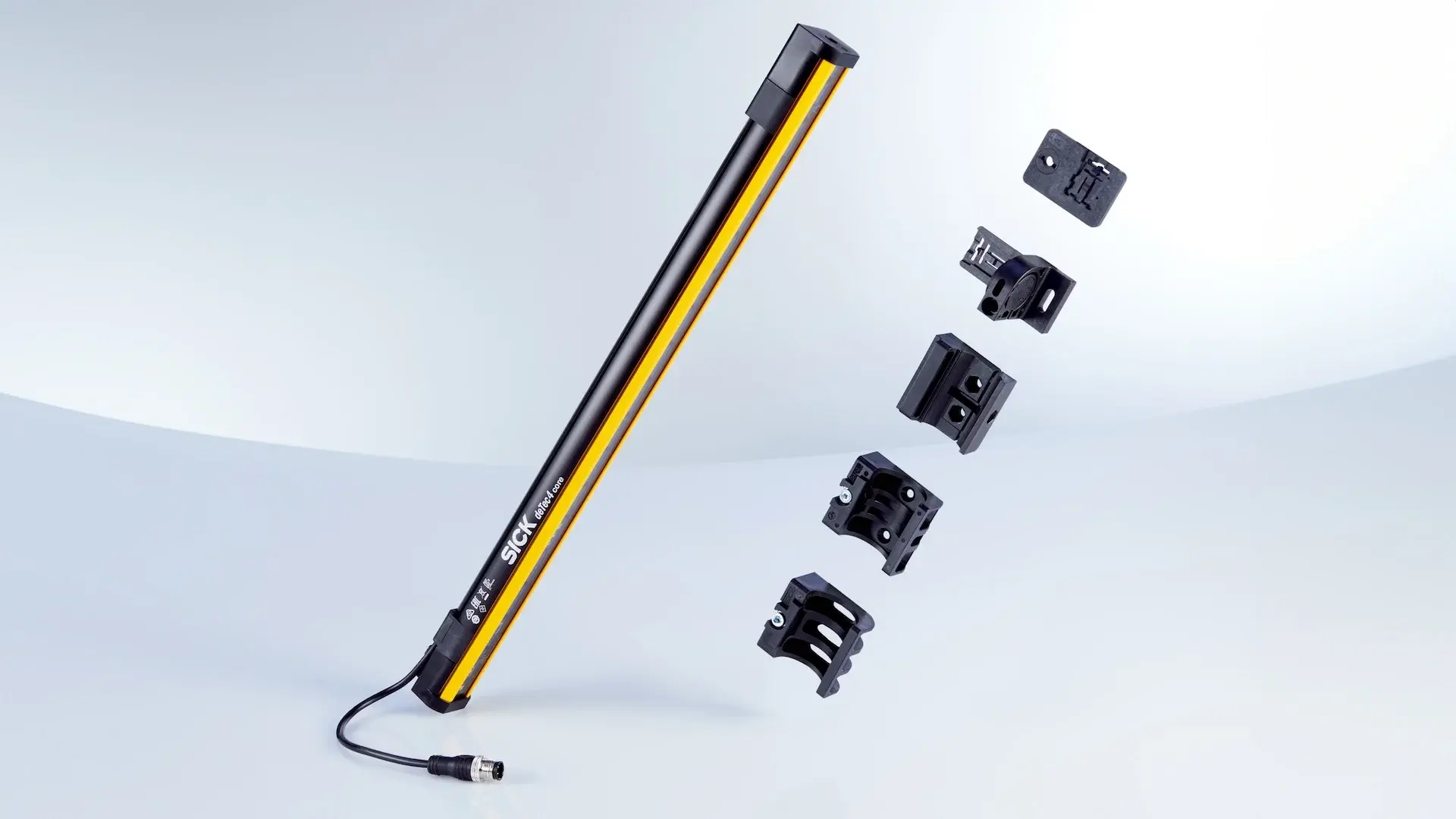

What mounting system does the SICK deTec4 Core use?

The light curtain includes FlexFix mounting brackets and an M12x5 PUR cable socket that simplify installation and allow easy repositioning without major rewiring.

Does this light curtain have a built-in emergency stop?

Yes, the SICK deTec4 Core includes an integrated emergency-stop relay that reduces safety circuit wiring complexity and ensures compliance with safety architecture requirements.

SICK deTec4 Core Safety Light Curtain, 30 mm, 1050 mm

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockSafety Certified

SICK deTec4 Core Safety Light Curtain, 30 mm, 1050 mm

Name: SICK deTec4 Core Safety Light Curtain, 30 mm, 1050 mm
Brand: SICK
SKU: 3192
Price: 2395 USD
Availability: InStock

SICK

$2,395.00

SICK deTec4 Core safety light curtain with 30 mm resolution and 1050 mm protective field height. Detects hands and larger objects up to 15 m range. Includes emergency-stop relay, M12x5 PUR cable, and FlexFix mounting. IP65/IP67 rated for industrial automation.

Product Overview:

SICK deTec4 Core Safety Light Curtain is an industrial safety device used for safeguarding machine shop and automation environments where hands or larger objects must be detected reliably.

Key Specifications:

Protective field height: 1050 mm
Detection resolution: 30 mm
Operating wavelength: 850 nm
Detection range: up to 15 meters
IP65 and IP67 rated for dust and moisture protection
M12x5 PUR cable socket with FlexFix mounting (4 pieces)
Integrated emergency-stop relay simplifies safety circuit layout

Features and Benefits:

High detection resolution: 30 mm spacing offers precise hand detection, suitable for areas requiring finger or hand protection.
Extended range: Up to 15 meters for wide coverage in various industrial layouts.
Environmental durability: IP65/IP67 ratings enable use in environments with dust and water exposure, ideal for industrial automation.
Easy integration: FlexFix brackets and M12 connectors provide straightforward mounting and connection to machine safety systems.
Safety compliance: Emergency-stop relay is included, ensuring compliance with safety architecture requirements.

Applications:

Machine shop safety zones
Industrial automation production lines
Pick-and-place and palletising robotic cells
Access protection for hazardous machinery

When to Choose SICK deTec4 Core Safety Light Curtain, 30 mm, 1050 mm:

Ideal where hand detection resolution is required rather than fingertip precision
Recommended for machinery and work cells needing coverage up to 1050 mm in height
Suitable for locations with dust, moisture, or washdown requirements due to robust IP65/IP67 protection

Competitive Comparison:

The SICK deTec4 Core series offers simplified installation and reliable protection compared to older SICK light curtain models and similar competitive devices. The integrated relay and flexible mounting system reduce installation time and improve adaptability. For higher resolutions or different field heights, consider other deTec4 Core variants or consult the Safety Systems category for alternative safety light curtains.

Weight0.97 kg

Resolution30 mm

System of protection: IP65 und IP67
Wavelength: 850 nm
Protective Field Height: 1050 mm
Operating Range: 0 to 15 m
Mounting: FlexFix mounting components (4 pieces)
IP Rating: IP65, IP67
Cable Type: PUR cable
Connector: M12x5 socket

Detects hands reliably with 30 mm resolution across 1050 mm protective field height
Sees up to 15 meters away for flexible machine layout coverage
IP65 and IP67 rated, handles dust and moisture in washdown environments
M12x5 PUR cable with FlexFix mounting brackets simplify installation and repositioning
Built-in emergency-stop relay reduces safety circuit wiring complexity
850 nm infrared wavelength operates reliably in varied industrial lighting
Guards hand access zones on pick-and-place, palletising, and hazardous machinery

: A safety light curtain is an industrial safety device that detects hands or larger objects crossing a protective field to prevent access to hazardous machinery. The SICK deTec4 Core uses infrared light beams to monitor a 1050 mm tall zone and triggers an emergency stop if intrusion is detected.
: The SICK deTec4 Core Safety Light Curtain, 30 mm, 1050 mm detects hands reliably with 30 mm resolution across its protective field. This 30 mm spacing offers precise hand detection suitable for areas requiring hand protection.
: The SICK deTec4 Core can see up to 15 meters away, providing flexible coverage for various machine layouts and work cell sizes.
: Yes, the SICK deTec4 Core is IP65 and IP67 rated to handle dust and moisture in washdown environments and other challenging industrial settings.
: The light curtain includes FlexFix mounting brackets and an M12x5 PUR cable socket that simplify installation and allow easy repositioning without major rewiring.
: Yes, the SICK deTec4 Core includes an integrated emergency-stop relay that reduces safety circuit wiring complexity and ensures compliance with safety architecture requirements.

Light Curtain vs Manual Safety Gates:

The SICK deTec4 Core offers active infrared detection across a full 1050 mm protective field, stopping machinery instantly when hands or objects break the beam. This replaces fixed barriers and manual inspection in high-traffic production zones.

For pick-and-place cells with frequent operator reach-in, the 30 mm detection resolution stops equipment before fingers enter the hazard zone, where a rigid gate would block workflow.
On palletising lines with varying pallet heights and access points, the 1050 mm field height and up-to-15-meter range covers multiple entry angles with a single curtain rather than multiple fixed guards.
In washdown or wet environments, IP65 and IP67 ratings keep the curtain reliable where mechanical gates corrode or jam, eliminating downtime for cleaning or maintenance.
The built-in emergency-stop relay simplifies wiring to existing safety circuits, reducing installation complexity versus hardwired gate interlocks on older machinery.
On shared robotic cells where tool changes are frequent, FlexFix mounting brackets let you reposition the curtain without rewiring, preserving payload for end-effectors instead of heavy mechanical gates.
