What is a parallel gripper?

A parallel gripper uses two fingers that move toward each other in a straight line to clamp and hold objects. The SCHUNK EGS Electric Gripper is a 2-finger parallel gripper with 30 N gripping force and a 3 mm stroke per jaw, designed for precise pick-and-place tasks in assembly and electronics handling.

What is the main purpose of a gripper?

A gripper's main purpose is to grasp, hold, and manipulate objects in automated systems and robotic applications. The SCHUNK EGS is optimized for high-precision assembly, small parts handling, and pick-and-place operations, achieving 0.02 mm positioning repeatability.

How does the SCHUNK EGS differ from a pneumatic gripper?

The SCHUNK EGS is electric-powered and eliminates the need for external pneumatic infrastructure, reducing setup complexity and cost. Unlike pneumatic models, it delivers consistent force without fluctuation from variable air pressure and fits into compact robotic work cells.

What is the maximum weight the SCHUNK EGS Electric Gripper can handle?

The SCHUNK EGS is suitable for workpieces up to 0.15 kg with its 30 N parallel grip force. It weighs 0.45 kg itself and achieves 0.02 mm positioning repeatability for precision assembly tasks.

Does the SCHUNK EGS require pneumatics or external air supply?

No, the SCHUNK EGS is fully electric and requires no external pneumatics. It combines a 2-finger parallel gripper with an integrated electric swivel unit in a single module, simplifying setup and reducing infrastructure complexity.

What temperature range does the SCHUNK EGS operate in?

The SCHUNK EGS operates reliably up to 55°C across varied production environments. Its electric design and minimal wear components support high cycle rates and extended service life even in demanding conditions.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCompact Design

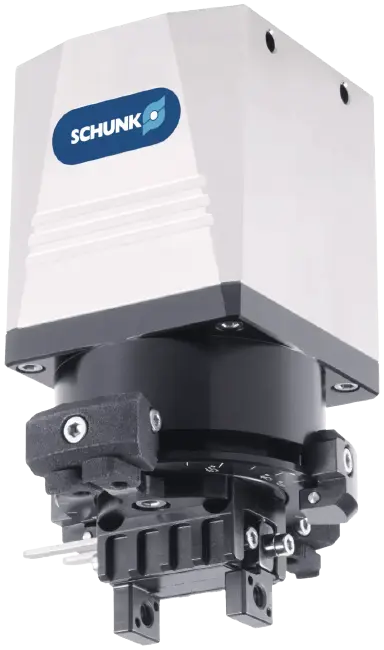

SCHUNK EGS Electric Gripper, 30 N, with Swivel

Name: SCHUNK EGS Electric Gripper, 30 N, with Swivel
Brand: SCHUNK
SKU: 3205
Price: 4195 USD
Availability: InStock

SCHUNK GmbH & Co. KG

$4,195.00

Compact 2-finger electric gripper with integrated swivel, 30 N grip force, 0.02 mm repeatability, and 3 mm stroke. No pneumatics needed. Ideal for assembly, electronics handling, and pick-and-place where rotation and gripping combine in one tool.

SCHUNK EGS Electric Gripper, 30N, Compact Rotary Parallel End Effector:

SCHUNK EGS Electric Gripper is a compact rotary end effector designed for high-precision pick-and-place applications in assembly, electronics handling, and laboratory automation.

Gripping Force: 30 N parallel grip
Stroke: 3 mm per jaw
Repeatability: 0.02 mm positioning accuracy
Weight: 0.45 kg

Main Features:

Integrated electric swivel and parallel gripping in a single module, maximizing workspace.
Digital I/O controls enable rapid commissioning and straightforward integration.
Minimal wear, high cycle endurance, and extended service life suit demanding environments.
Operates reliably up to 55°C for varied production conditions.

Comparative Advantages Over Pneumatic Grippers:

Eliminates external pneumatic setup, reducing overall infrastructure costs and complexity.
Provides consistent force delivery, unlike pneumatic models which may fluctuate under variable air pressure.
Compact design enables mounting in tight robotic work cells or small-scale automation lines.

Compatible Applications and Related Solutions:

Ideal for rotary gripping, parallel pick-and-place, small parts handling, and precision assembly.

The SCHUNK EGS Electric Gripper 30N is suitable for workpieces up to 0.15 kg, mounts via standard interfaces, and is engineered for flexible automation tasks requiring both rotation and gripping.

Weight0.45 kg

Stroke per jaw3 mm

Max Gripping force: 30 N
Recommended workpiece weight: 0.15 kg
Propulsion Method: Electric
Max. ambient temperature: 55 ℃
Repeatability: 0.02 mm
Payload: 0.15 kg
Gripping Force: 30 N
Operating temperature: 55°C

Grip and rotate in one compact module, 30 N parallel force with integrated swivel
2-finger parallel gripper plus electric swivel unit, no external pneumatics needed
Minimal wear components deliver high cycle rates and extended service life
Digital I/O control enables quick commissioning and seamless system integration
Electric design eliminates pneumatic infrastructure, reducing setup complexity
Achieves 0.02 mm positioning repeatability for precision assembly tasks
Operates reliably to 55°C across varied production environments

: A parallel gripper uses two fingers that move toward each other in a straight line to clamp and hold objects. The SCHUNK EGS Electric Gripper is a 2-finger parallel gripper with 30 N gripping force and a 3 mm stroke per jaw, designed for precise pick-and-place tasks in assembly and electronics handling.
: A gripper's main purpose is to grasp, hold, and manipulate objects in automated systems and robotic applications. The SCHUNK EGS is optimized for high-precision assembly, small parts handling, and pick-and-place operations, achieving 0.02 mm positioning repeatability.
: The SCHUNK EGS is electric-powered and eliminates the need for external pneumatic infrastructure, reducing setup complexity and cost. Unlike pneumatic models, it delivers consistent force without fluctuation from variable air pressure and fits into compact robotic work cells.
: The SCHUNK EGS is suitable for workpieces up to 0.15 kg with its 30 N parallel grip force. It weighs 0.45 kg itself and achieves 0.02 mm positioning repeatability for precision assembly tasks.
: No, the SCHUNK EGS is fully electric and requires no external pneumatics. It combines a 2-finger parallel gripper with an integrated electric swivel unit in a single module, simplifying setup and reducing infrastructure complexity.
: The SCHUNK EGS operates reliably up to 55°C across varied production environments. Its electric design and minimal wear components support high cycle rates and extended service life even in demanding conditions.

Electric gripper with integrated swivel versus pneumatic grippers:

The SCHUNK EGS combines grip and rotation in one compact 0.45 kg module, eliminating the need for external pneumatic lines, compressors, and separate swivel actuators. Choose this electric design when setup speed, space, and consistent force matter more than very high grip loads.

For small parts under 150 g in tight robotic cells, the integrated swivel and compact profile fit where separate pneumatic units cannot, and no air infrastructure setup is needed.
On high-cycle assembly lines, minimal wear components and 0.02 mm repeatability deliver precision and uptime; pneumatic alternatives often drift under pressure fluctuations.
In labs and electronics handling, digital I/O control enables fast commissioning without tuning air regulators, and reliable operation to 55°C suits varied production floors.
For rotary pick-and-place tasks requiring both grip and orientation in one move, the integrated swivel frees robot payload compared to adding a separate pneumatic rotator.
