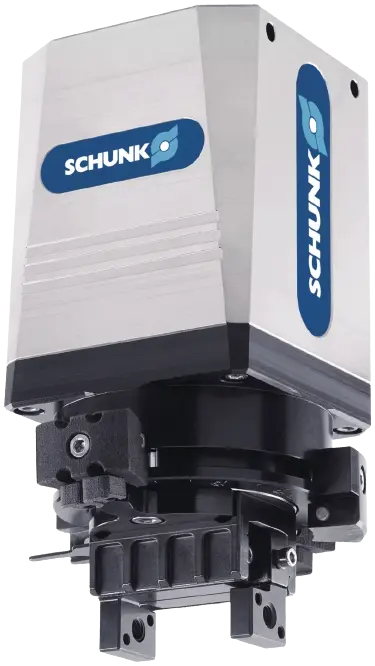

The SCHUNK EGS is an electric gripper-swivel module that integrates parallel gripping and rotational positioning functions in one compact unit.
Delivering 140 N maximum gripping force with 6 mm stroke per jaw, the module handles workpieces up to 0.55 kg with 0.02 mm repeatability.
The electric drive system eliminates the need for external pneumatic infrastructure, simplifying installation and system architecture.
Control via digital I/Os enables straightforward commissioning and integration into existing automation systems.
The design minimizes wear components to support high-cycle production applications and extended service life.
Operating temperature range extends to 55°C maximum ambient.
This module suits applications requiring coordinated gripping and rotation in a single compact package, including assembly cells, electronics handling, and pick-and-place operations where both functions are needed without pneumatic supply.
