In Stock

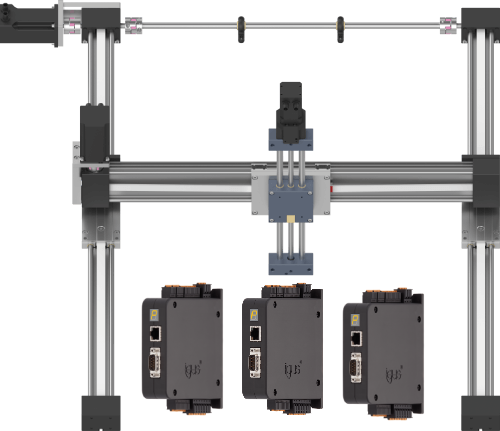

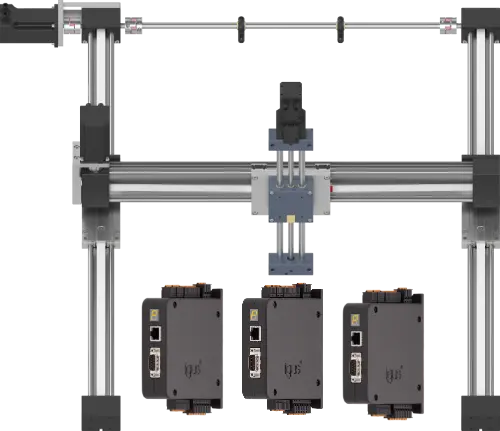

Room Gantry RG-0014 | 2 DOF | 500x500x200mm | 10kg
igus®
$11,176.14
Room Gantry Robot for Compact and Precise Automation The drylin® room gantry robot DLE-RG-0014 offers ±0.5 mm accuracy and a workspace of 500 × 500 × 200 mm.
Product Description
Room Gantry Robot for Compact and Precise Automation
The drylin® room gantry robot DLE-RG-0014 offers ±0.5 mm accuracy and a workspace of 500 × 500 × 200 mm.
With a max payload of 10 kg, 1 m/s speed, and up to 20 picks/min, it's ideal for precise motion tasks in compact applications.
Controlled via igus® Robot Control or Dryve D1 – supporting Modbus TCP/IP, CANopen, ROS, digital I/Os, and LabVIEW.
The intuitive 3D interface enables easy programming and seamless integration into existing automation systems.
Recommended for pick & place, lab automation, packaging, and light assembly.
Perfect for SMEs, research labs, and industrial users focused on efficiency and low maintenance.
Gantry robots are particularly suitable for pick & place applications in various areas.
For example, in the laboratory, in manufacturing, for applications with adhesives or in vertical farming.
They are compatible with various camera systems, grippers and accessories and can therefore also be used in bin-picking applications.
You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen.
On the PC the robot can be programmed via a graphical user interface.
With the handheld you can control the robot with a joystick and start programs via the touch screen.
In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld.
With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.
The drylin® room gantry robot DLE-RG-0014 offers ±0.5 mm accuracy and a workspace of 500 × 500 × 200 mm.
With a max payload of 10 kg, 1 m/s speed, and up to 20 picks/min, it's ideal for precise motion tasks in compact applications.
Controlled via igus® Robot Control or Dryve D1 – supporting Modbus TCP/IP, CANopen, ROS, digital I/Os, and LabVIEW.
The intuitive 3D interface enables easy programming and seamless integration into existing automation systems.
Recommended for pick & place, lab automation, packaging, and light assembly.
Perfect for SMEs, research labs, and industrial users focused on efficiency and low maintenance.
Gantry robots are particularly suitable for pick & place applications in various areas.
For example, in the laboratory, in manufacturing, for applications with adhesives or in vertical farming.
They are compatible with various camera systems, grippers and accessories and can therefore also be used in bin-picking applications.
You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen.
On the PC the robot can be programmed via a graphical user interface.
With the handheld you can control the robot with a joystick and start programs via the touch screen.
In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld.
With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.
Weight
10 kg
Dimensions
500 x 500 x 200 mm
Part Number
DLE-RG-0014-01
RBTX SKU
RBTX-IGUS-0097
Max Payload
10 kg
Repeatability
0.5 mm
Max Speed
0.5
Working Space Diameter
500x500x200 mm
Protection Class
-
Weight
11.6 kg
DOF
3
Controlled via igus® Robot Control or Dryve D1 – supporting Modbus TCP/IP, CANopen, ROS, digital I/Os, and LabVIEW.
The intuitive 3D interface enables easy programming and seamless integration into existing automation systems.
Recommended for pick & place, lab automation, packaging, and light assembly.
Perfect for SMEs, research labs, and industrial users focused on efficiency and low maintenance.
