What is the igus DLE-RG-0012 used for?

The DLE-RG-0012 is designed for pick and place automation, laboratory automation, packaging, and light assembly tasks in small to medium-sized production environments. Its 5 kg payload capacity and ±0.5 mm repeatability make it suitable for precision-dependent applications.

What is the workspace size of this cartesian gantry robot?

The DLE-RG-0012 has an 800 x 800 x 500 mm workspace, making it compact enough to fit into constrained production areas while still offering practical reach for assembly and pick and place tasks.

How much weight can this robot handle?

The DLE-RG-0012 can handle payloads up to 5 kg at speeds of 0.5 m/s, making it suitable for light-duty automation in labs, packaging, and assembly operations.

Can I integrate the DLE-RG-0012 into my existing control system?

Yes, the DLE-RG-0012 is compatible with cabinet or DIN rail controller configurations and features stepper motor control with optional igus Robot Control software, allowing flexible integration into varied automation infrastructure.

How much does the DLE-RG-0012 weigh?

The DLE-RG-0012 weighs just 14.6 kg, keeping installation and repositioning straightforward while maintaining structural rigidity for consistent precision.

What repeatability does this robot achieve?

The DLE-RG-0012 offers ±0.5 mm repeatability, ensuring consistent precision on dynamic tasks such as pick and place and assembly operations.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock12 kg Payload

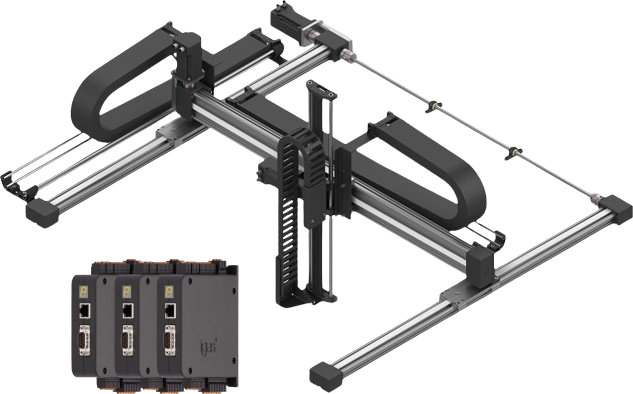

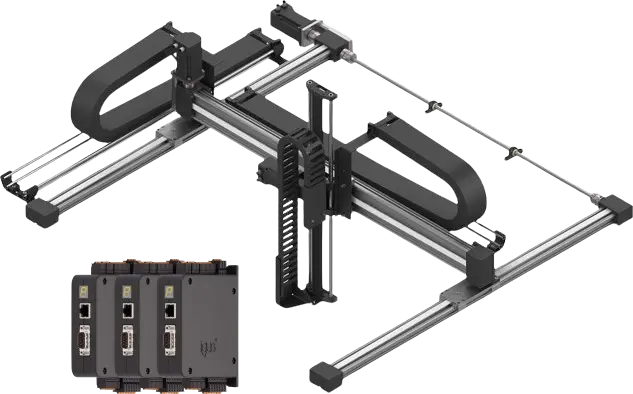

igus DLE-RG-0012 Cartesian Gantry Robot, 5kg, 800x800x500mm

Name: igus DLE-RG-0012 Cartesian Gantry Robot, 5kg, 800x800x500mm
Brand: igus
SKU: 3336
Price: 10500 USD
Availability: InStock

igus®

$10,500.00

Compact three-axis Cartesian gantry robot with 800x800x500 mm workspace, 5 kg payload, and 0.5 mm repeatability. Ideal for pick and place, laboratory automation, packaging, and light assembly work. Includes stepper motors, drylin linear modules, and optional igus Robot Control software for quick setup.

The igus DLE-RG-0012 Cartesian gantry robot is a light industrial automation robot engineered for precision pick and place, laboratory automation, assembly stations, and packaging lines.

Workspace: 800 x 800 x 500 mm
Payload: up to 5 kg
Repeatability: ±0.5 mm
Speed: up to 0.5 m/s

Weighing just 14.6 kg, the DLE-RG-0012 gantry robot from igus is designed for integration in small to medium-sized industrial environments. Compatible with cabinet or DIN rail controller configurations, it offers flexible setup on varied infrastructure for rapid deployment in light-duty automation tasks.

Compared to alternative lab automation robots, the igus DLE-RG-0012 cartesian gantry robot is a low-maintenance, cost-effective solution with its modular design and pre-configured linear modules. This cartesian robot for sale is suitable when precise linear motion, compact workspace utilization, and modest payloads are required.

Advantages Over Other Cartesian Gantry Robots:

Pre-configured drylin linear modules simplify integration
Engineered for moderate precision and high reliability
Adaptable control system supports diverse automation platforms

FAQ:

What is it used for? The DLE-RG-0012 gantry robot is ideal for pick and place automation, laboratory robot systems, packaging, and light assembly.
How fast does it move? Maximum speed is 0.5 m/s for efficient cycle operations.

Weight14.6 kg

Max Payload5 kg

Repeatability: 0.5 mm
Max Speed: 0.5
Working Space Diameter: 800x800x500 mm
DOF: 3
Model: DLE-RG-0012-01
Payload: 5 kg
Reach: 800 x 800 x 500 mm
Maximum Speed: 0.5 m/s

Handles 5 kg payloads at 0.5 m/s for pick and place, lab automation, packaging, assembly
Cabinet or DIN rail control system adapts to your automation infrastructure
±0.5 mm repeatability ensures consistent precision on dynamic tasks
800 x 800 x 500 mm workspace fits compact production environments
Pre-configured drylin linear modules cut integration time and maintenance
Stepper motor control with optional igus Robot Control software, license-free
Lightweight at 14.6 kg, cost-effective for SMEs and research labs

: The DLE-RG-0012 is designed for pick and place automation, laboratory automation, packaging, and light assembly tasks in small to medium-sized production environments. Its 5 kg payload capacity and ±0.5 mm repeatability make it suitable for precision-dependent applications.
: The DLE-RG-0012 has an 800 x 800 x 500 mm workspace, making it compact enough to fit into constrained production areas while still offering practical reach for assembly and pick and place tasks.
: The DLE-RG-0012 can handle payloads up to 5 kg at speeds of 0.5 m/s, making it suitable for light-duty automation in labs, packaging, and assembly operations.
: Yes, the DLE-RG-0012 is compatible with cabinet or DIN rail controller configurations and features stepper motor control with optional igus Robot Control software, allowing flexible integration into varied automation infrastructure.
: The DLE-RG-0012 weighs just 14.6 kg, keeping installation and repositioning straightforward while maintaining structural rigidity for consistent precision.
: The DLE-RG-0012 offers ±0.5 mm repeatability, ensuring consistent precision on dynamic tasks such as pick and place and assembly operations.

Cartesian gantry versus robotic arms for compact automation:

The igus DLE-RG-0012 is a fixed-axis linear gantry system, ideal when you need precise, repeatable motion in a single workspace rather than the multi-directional reach of a 6-axis robot arm. Choose this gantry for tasks confined to a flat plane or simple vertical stacking.

For pick and place on conveyor lines or pallets under 5 kg, the ±0.5 mm repeatability maintains accuracy across high-cycle runs without recalibration.
In compact labs or SME production cells where floor space is critical, the 800 x 800 x 500 mm footprint fits tight layouts that would struggle to accommodate a larger robotic arm.
When integration speed matters, pre-configured drylin linear modules and cabinet or DIN rail control reduce setup time and maintenance versus custom-built systems.
For modest payloads on assembly or packaging tasks, the lightweight 14.6 kg design and cost-effective stepper motor control suit research labs and budget-conscious manufacturers.
