In Stock
Room gantry RG-0012 | 3 DOF | 800x800x500mm | 5kg
igus®
The igus drylin Room Gantry RG-0012 is a 3-axis Cartesian robot with an 800x800x500 mm working envelope and 5 kg payload capacity, designed for pick and place, assembly, and packaging tasks.

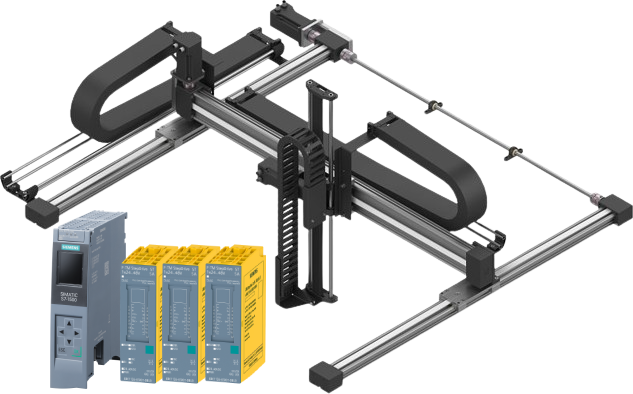

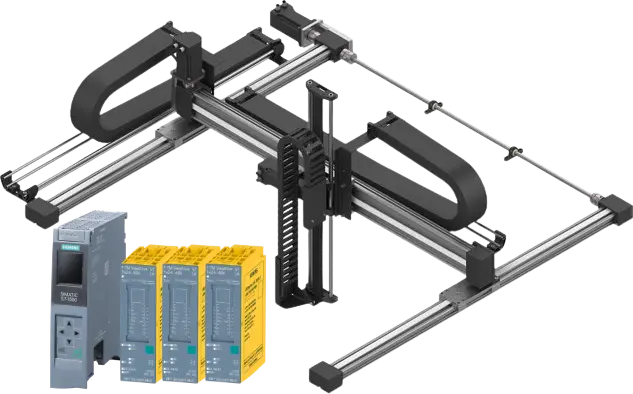

The igus drylin Room Gantry RG-0012 is a three-degree-of-freedom Cartesian robot system offering an 800x800x500 mm working space and 5 kg maximum payload capacity.
This gantry configuration delivers 0.5 mm repeatability at speeds up to 1 m/s, with cycle rates reaching 20 picks per minute for repetitive automation tasks.
The system weighs 13 kg and is supplied with a Siemens control system available in both cabinet and DIN rail mounting configurations to accommodate different installation requirements.
This model serves applications including pick and place operations, laboratory automation, packaging, and light assembly work.
The combination of modest payload capacity, compact footprint, and low-maintenance polymer bearing technology makes the RG-0012 suitable for small and medium-sized manufacturing facilities, research laboratories, and industrial production environments where upfront cost and ongoing maintenance are key selection criteria.
