igus DLE-RG-0003 Cartesian Gantry Robot, 800x800x500mm, 5kg

igus DLE-RG-0003 Cartesian Gantry Robot, 800x800x500mm, 5kg:

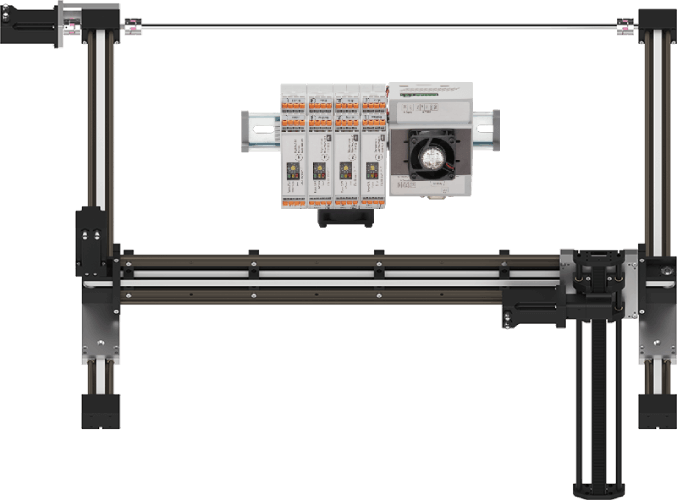

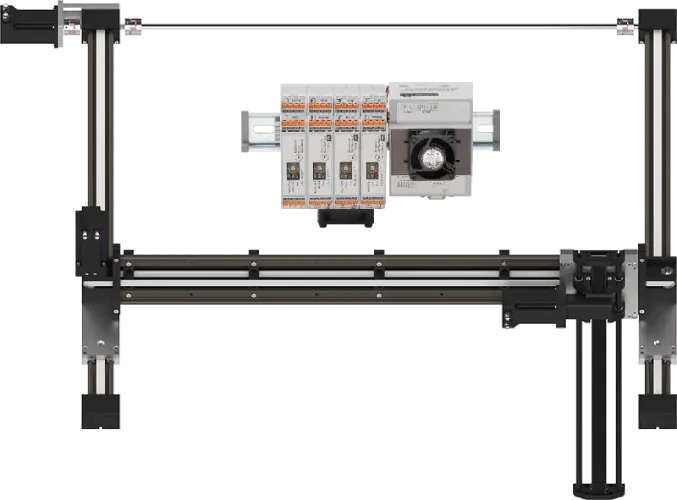

The igus DLE-RG-0003 Cartesian gantry robot is a three-axis linear motion system designed for small and medium enterprises, research facilities, and industrial automation in applications such as pick and place, laboratory automation, and light assembly.

• Working area: 800 x 800 x 500 mm
• Payload: up to 5 kg
• Repeatability: 0.5 mm
• System weight: 14.9 kg

Key Features and Integration:

• Supports igus Robot Control software and Dryve D1 motor controllers for flexible system integration.
• Compatible with Modbus TCP/IP, CANopen, ROS, digital I/O, and LabVIEW, making the DLE-RG-0003 suitable for varied automation environments.
• Graphical 3D programming interface operates on Windows 10 PC. Gamepad or optional touchscreen handheld with joystick enables both programming and manual operation.
• Integrates with camera systems, grippers, and other accessories for advanced tasks such as bin picking, dispensing, and vertical farming automation.

Use Cases for igus DLE-RG-0003:

• Pick and place
• Packaging
• Laboratory and research automation
• Light industrial assembly

Advantages Compared to Other Cartesian Robots:

• Lightweight 14.9 kg design simplifies installation and handling in compact spaces.
• Easy system integration with multiple control protocols and accessories reduces deployment complexity.
• Cycle rates up to 20 picks per minute support high-throughput needs versus other general-purpose gantry robots with similar reach and payload.

Compatibility and Installation:

• Mounts within defined envelope on standard industrial frames and supports integration with third-party accessories.
• Accessible through igus interfaces and compatible with assistive devices via digital I/O and standard protocol support for user-driven or semi-autonomous operation.
