igus DLE-RG-0003 Cartesian Gantry Robot, 5kg, 800x800x500mm

igus DLE-RG-0003 Cartesian Gantry Robot Overview:

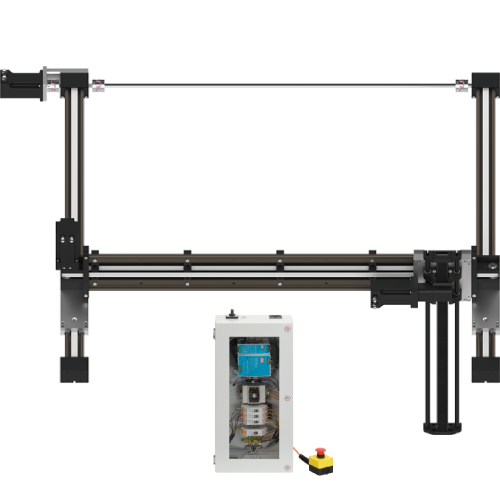

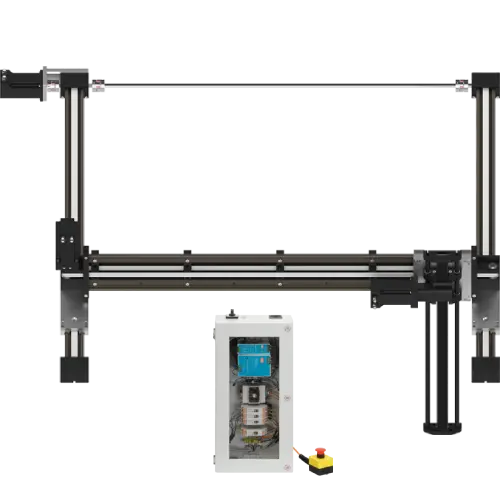

The igus DLE-RG-0003 Cartesian gantry robot is a 3-axis gantry system designed for automated material handling and precise pick-and-place tasks in manufacturing, research, and lab automation environments.

• Payload: 5 kg maximum
• Working Envelope: 800 x 800 x 500 mm
• Repeatability: 0.5 mm
• Robot Weight: 14.9 kg

Key Features and Advantages:

• Supports up to 20 picks per minute for efficient production lines and lab processes.
• Designed for pick and place, packaging, light assembly, lab automation, and vertical farming automation.
• Compatible with a wide range of accessories such as camera systems, grippers, and tools for flexible application adaptation.
• Suitable for use by small to medium enterprises and research facilities needing a scalable cartesian gantry robot solution.

Control and Integration Options:

• Operates with igus Robot Control or Dryve D1 motor controllers for easy programming and operation.
• Supports integration protocols including Modbus TCP/IP, CANopen, ROS, digital I/O, and LabVIEW.
• Programming through a 3D graphical interface on Windows 10 PC, with optional handheld touchscreen or joystick for manual control.
• Alternative operation via gamepad for added flexibility.

Comparison and Selection:

• The igus DLE-RG-0003 delivers a competitive payload-to-weight ratio and working envelope, making it more efficient for medium-scale automation than many compact gantry robots in its class.
• For different payload or reach requirements, see the full Cartesian / Linear / Gantry Robots category or browse the Robots & Accessories section.

Application Suitability:

The DLE-RG-0003 excels in bin picking, adhesive dispensing, assembly, and vertical farming automation, addressing the needs of manufacturing and research sectors looking for reliable 3 axis gantry performance.
