igus®
Three-axis gantry robot with 800x800x500 mm work envelope, 5 kg payload, 0.5 mm repeatability, and up to 20 picks per minute. Ideal for pick and place, lab automation, packaging, light assembly, and bin-picking. Controlled via igus Robot Control or Dryve D1 with support for Modbus TCP/IP, CANopen, ROS, and LabVIEW. Programmed graphically on Windows 10 PC with optional handheld touchscreen control.

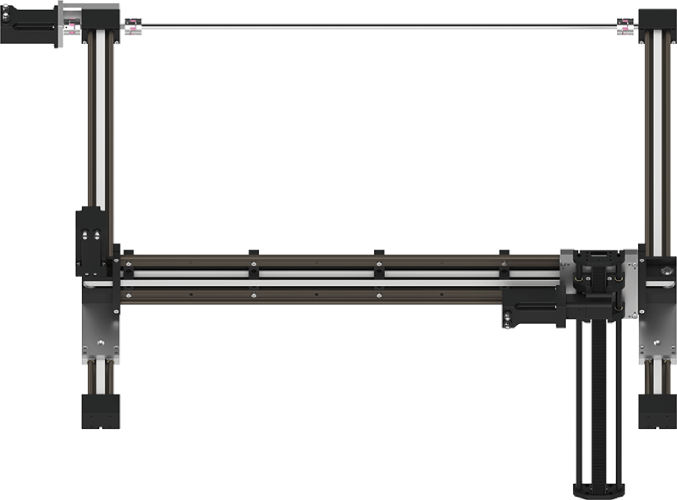

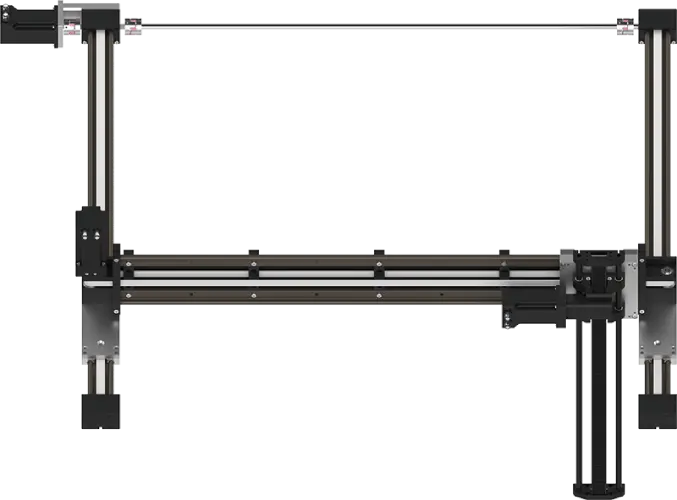

The igus DLE-RG-0003 cartesian gantry robot is a three-axis automation system engineered for repeatable pick and place applications in laboratories and industrial manufacturing environments.
A room gantry robot is a cartesian robot featuring three linear axes for precise positioning in a defined workspace. The igus DLE-RG-0003 provides automated motion across an 800 x 800 x 500 mm envelope, making it ideal for repetitive material handling and positioning tasks.
The DLE-RG-0003 is designed for efficient industrial pick and place applications, laboratory test automation, packaging, and similar processes requiring precise, programmable motion.
The DLE-RG-0003 is a compact, low-cost gantry system designed for light payloads and defined work areas, positioned between manual labor and large six-axis robots. Choose it when you need precise, repeatable motion in a fixed footprint without the complexity and expense of a full articulated arm.
