ReBeL Cobot incl. seventh axis | 7 DOF | 1500mm | 2kg
igus®
The igus ReBeL cobot configured with an integrated seventh axis extends workspace reach to 5800 mm based on configuration, maintaining 2 kg payload capacity and 1 mm repeatability across the extended envelope.

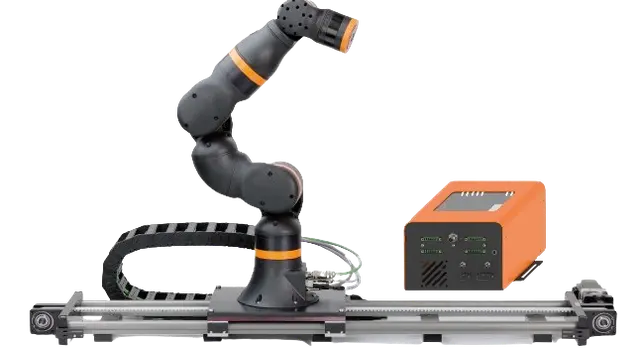

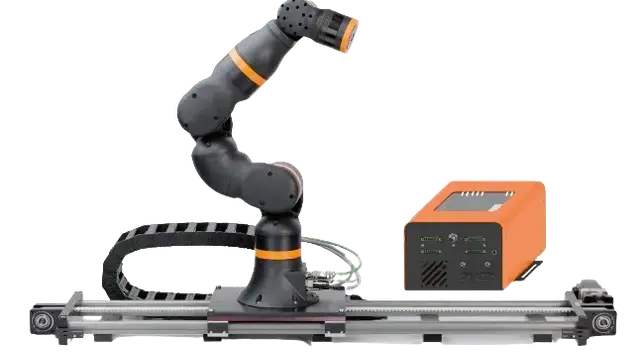

This system integrates a ReBeL cobot with a drylin ZLW-20200 belt-driven linear axis as a seventh axis, offering a 1500 mm stroke and extending total system reach up to 5800 mm depending on configuration.
The package maintains a 2 kg payload capacity with 1 mm repeatability across the workspace.
The seven degrees of freedom enable coverage of multiple stations, extended part handling, and access to work areas beyond the reach of a fixed-base cobot.
The seventh axis connects directly to the igus Robot Control system via CAN bus and operates as a synchronized external axis, allowing simultaneous coordinated motion of the linear axis and robot arm.
The controller supports Modbus TCP/IP, ROS, CANopen, and digital I/O protocols.
Software is provided at no charge.
The drylin ZLW-20200 axis uses tribologically optimized polymer bearings that require no external lubrication.
The axis can be mounted horizontally or overhead depending on application requirements.
Typical applications include pick and place operations across extended distances, quality inspection routing, machine tending for multiple cells, and handling of large parts that require repositioning.
The system is suited for small and medium manufacturers, logistics operations, and laboratory automation environments.
