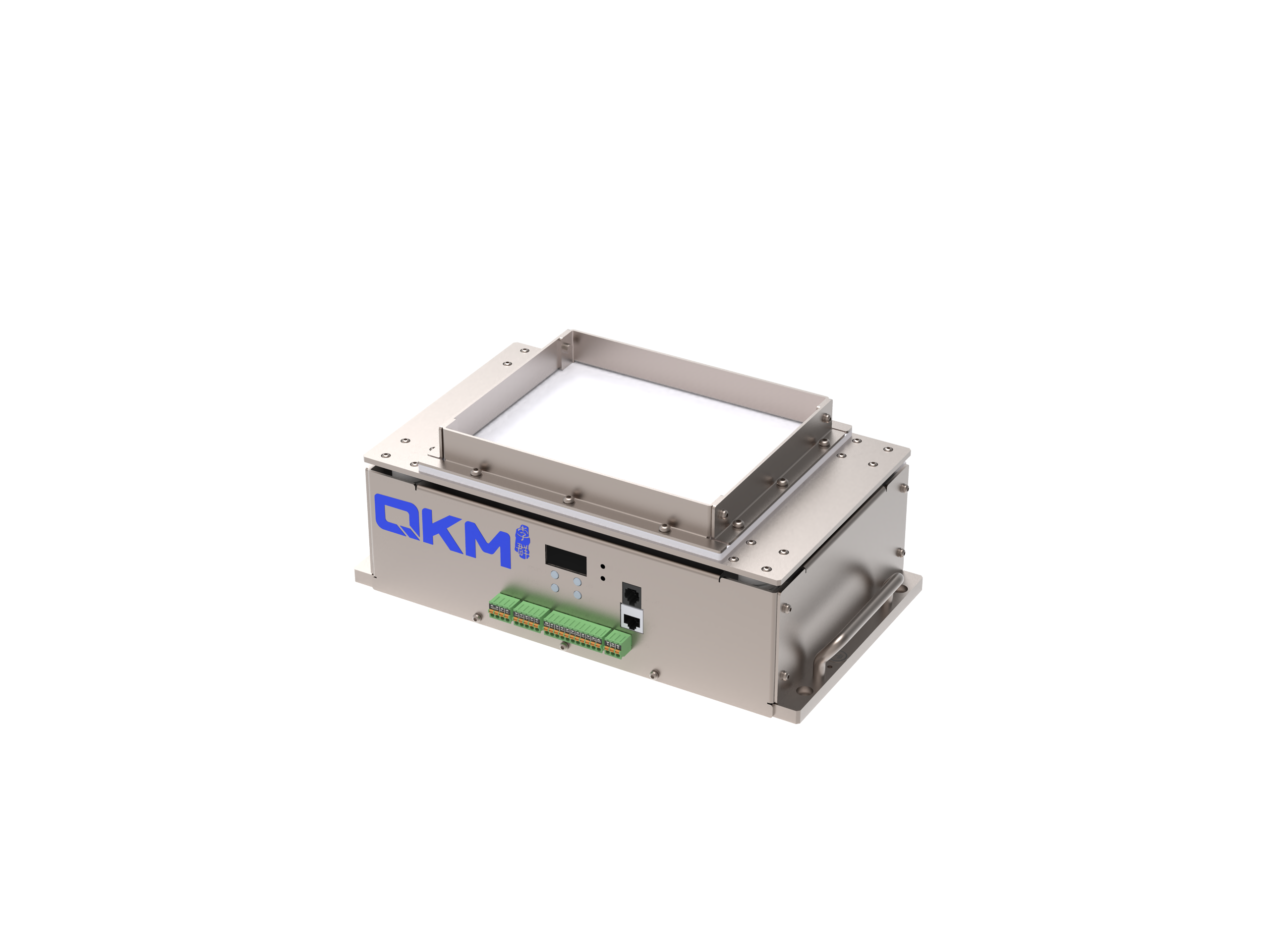

QKM QFF-2016 Vibration Plate Feeder, 1.5 kg

The QKM QFF-2016 Vibration Plate Feeder is a flexible vibratory feeder system designed for automated small parts handling and sorting in electronics, medical, and manufacturing environments.

Specifications:

• Model Number: QFF-2016
• Part size range: 2–170 mm
• Max load: 1.5 kg
• Panel size: up to 470 × 350 mm

Features:

• Automated vibration plate feeder optimised for feeding, singulation, and orientation of loose small parts.
• Supports plug-and-play integration with industrial automation lines.
• Integrated control system combines storage and vibration spreader for regulated material flow.
• Accommodates vision systems for part identification and flexible feeder adaptation.
• Customizable feed panels match diverse part geometries and rapid changeover applications.
• Low-noise operation suits environments with strict acoustic requirements.

Applications:

• Precision pick and place for electronic component sorting in circuit board assembly.
• Feeding and sorting of springs, profiles, and medical parts in lab automation and device manufacturing.
• Small parts handling for automotive and toy assembly lines.
• Material handling automation requiring modular feeders in high-mix, low-volume production.

Benefits of QFF-2016 Vibration Plate Feeder:

• Eliminates manual part feeding to increase throughput and consistency.
• Flexible configuration enables a single feeder system to process a wide variety of part sizes and shapes.
• Quick changeover supports short-batch manufacturing and reduced downtime.
• Reliable performance in environments such as electronics, medical, automotive, and material handling.

Comparison with Other Feeder Types:

The QKM QFF-2016 outperforms manual feeding by reducing labor needs and error rates. Compared to conventional vibratory bowl or linear feeders, its large part size range, fast changeover, and easy integration with robotic vision systems deliver higher flexibility for automated production lines.
