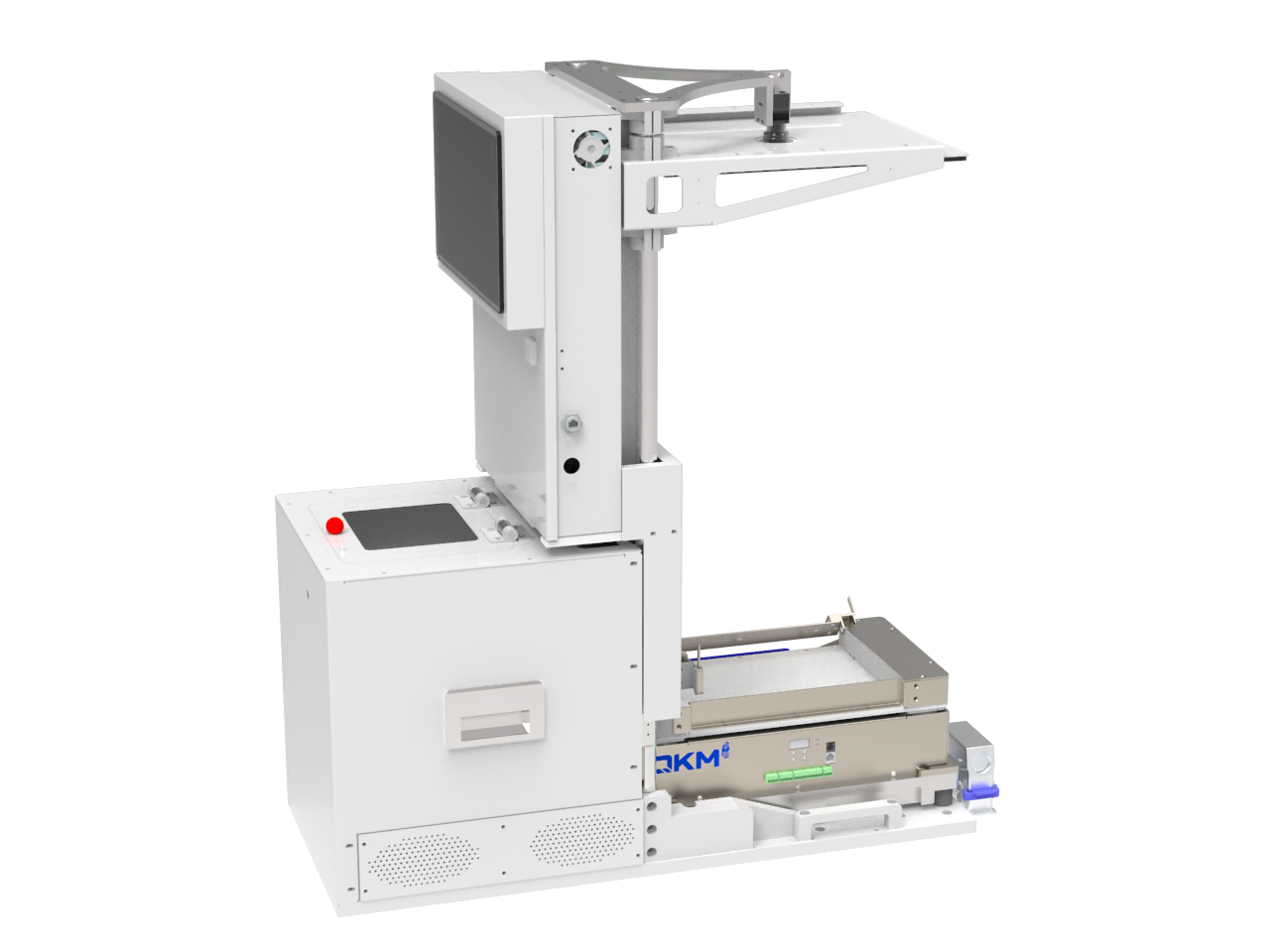

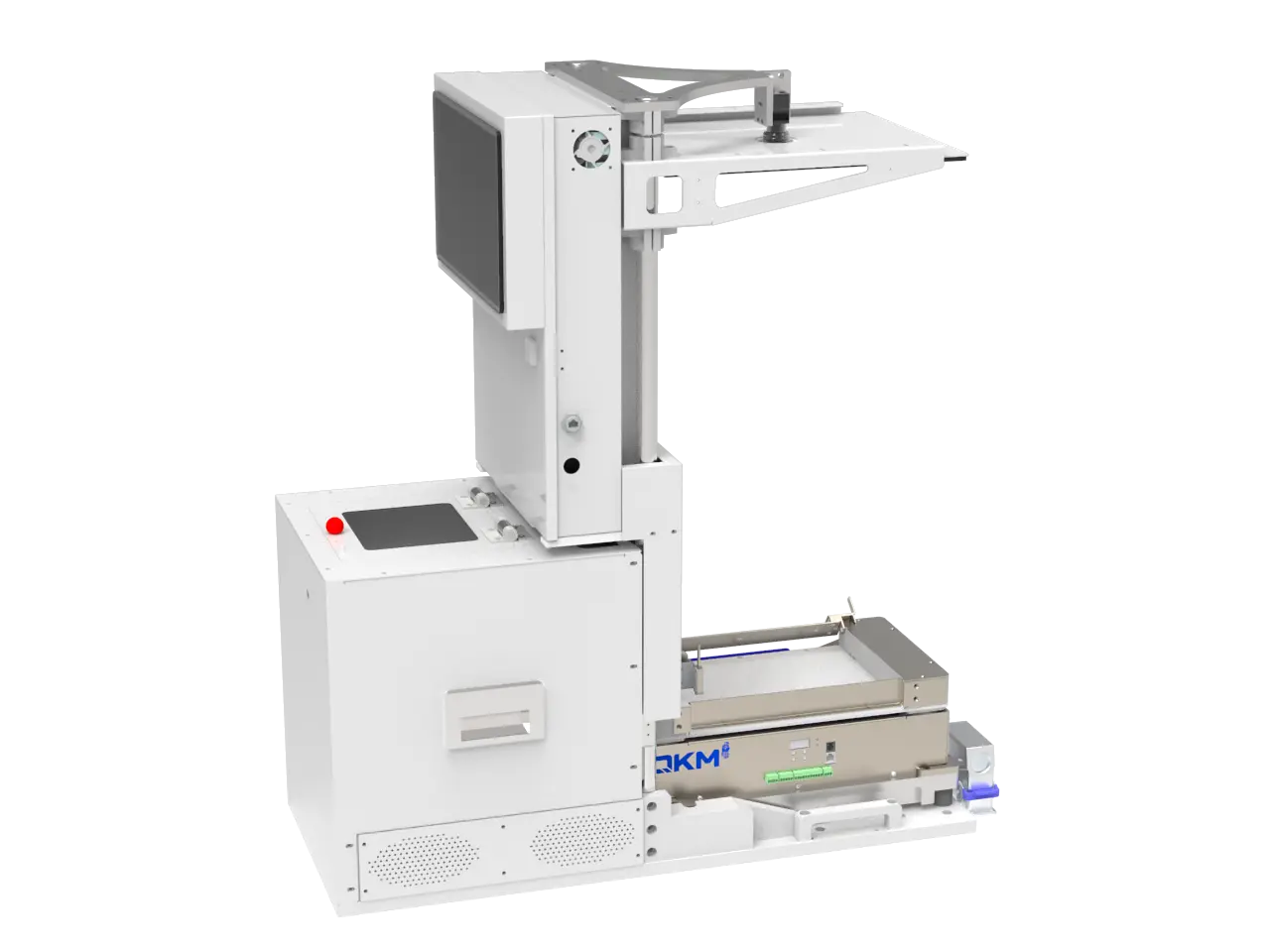

The QKM Tobot FlexSorter Station (QFSM-0001K-3929) automates the sorting of thin sheets, silicon wafers, and irregularly shaped components in production and assembly workflows.
The system processes parts ranging from 2 to 120 mm with positioning accuracy of ±0.07 mm and handles vibration loads up to 1.5 kg.
Cycle times range from 1.9 to 3 seconds depending on configuration.
The station integrates with vision systems including a top-mounted camera and optional bottom camera for part identification and orientation.
It is compatible with robot models AH3-0400 and AH6K-0600.
Control is handled through FlexSorter software via a 13.3-inch touchscreen interface.
Standard interfaces include AC/DC power input, emergency stop, and Ethernet connectivity.
Bin capacity is configurable between 8 and 15 liters to accommodate varying part volumes.
The system is designed for pick and place operations, sorting tasks, and assembly applications across electronics manufacturing, medical device production, automotive component handling, and toy assembly.
The FlexSorter Station is particularly well-suited for facilities running small batch sizes and multi-product workflows where flexibility and changeover speed are priorities.
