QKM | Tobot FlexSorter Station
QKM Technology
Automated sorting station designed for small parts from 2 to 120 mm, featuring integrated vision, touchscreen control, and compatibility with QKM AH-series robots.

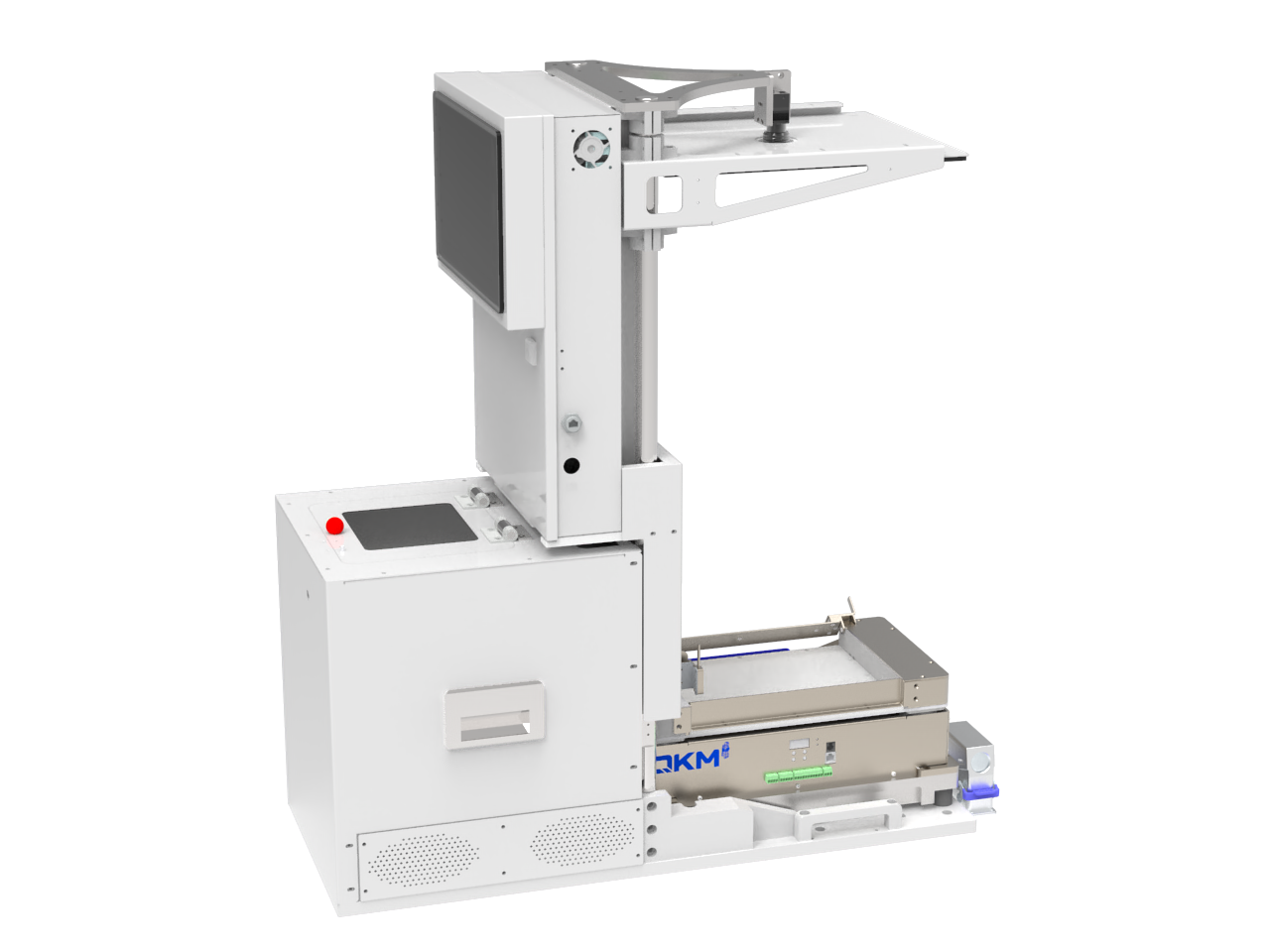

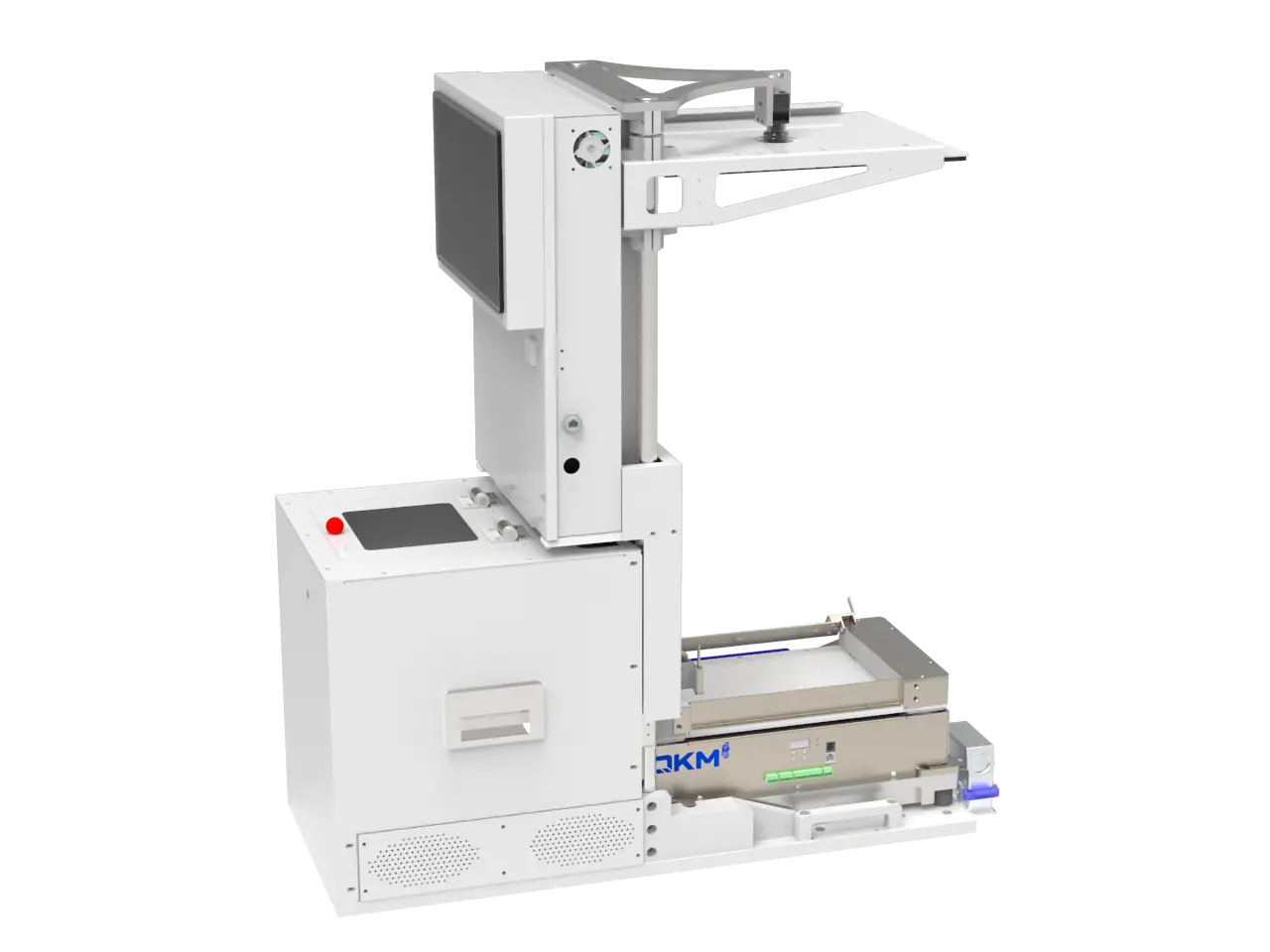

The QKM Tobot FlexSorter Station (QFSM-0001K-3224) is an automated material handling system engineered for precision sorting of small components, thin sheets, silicon wafers, and irregularly shaped parts.
The station accommodates part sizes from 2 to 120 mm and supports a vibration load up to 1.5 kg, with positioning accuracy of ±0.07 mm and cycle times between 1.9 and 3 seconds.
The system operates through FlexSorter software displayed on an integrated 13.3-inch touchscreen.
Vision capability is provided by a top-mounted camera, with an optional bottom camera available for additional inspection angles.
Standard interfaces include AC/DC power input, emergency stop, and Ethernet connectivity.
Bin capacity is configurable from 8 to 15 liters to suit different workflow requirements.
The FlexSorter Station integrates with QKM robot models AH3-0400 and AH6K-0600 for pick and place, sorting, and assembly operations.
Target applications span electronics manufacturing, medical device production, automotive component handling, and toy assembly.
The compact footprint and flexible configuration make the station particularly effective for small-batch production environments and facilities managing multiple product lines with frequent changeovers.
