What is the gripping force of the DH-Robotics PGHL-400-80?

The PGHL-400-80 delivers adjustable gripping force from 140 N to 400 N per jaw, allowing precise force control for different workpiece types and materials. This range supports both delicate precision assembly and robust handling tasks up to 8 kg payloads.

What is the main purpose of a gripper?

A gripper is an end effector that grasps, holds, and releases workpieces in automated systems. The PGHL-400-80 electric gripper enables rapid pick-and-place cycles and precision assembly by opening in 1.0 seconds and closing in 1.1 seconds while maintaining ±0.02 mm repeatability.

How do I mount the PGHL-400-80 to my robot?

The PGHL-400-80 mounts directly to compatible robot wrists via a standard interface with no special adapters required. It is 194 mm long, 73 mm wide, and weighs 2.2 kg, fitting compact robot arms in automotive, semiconductor, and food processing environments.

What communication protocols does the PGHL-400-80 support?

The gripper includes Modbus RTU and digital I/O as standard, with optional support for TCP/IP, USB 2.0, CAN 2.0A, PROFINET, and EtherCAT for flexible integration with different robot controllers and industrial networks. It operates on 24 V DC ±10% power supply.

Can the PGHL-400-80 work in cold or hot environments?

The PGHL-400-80 operates reliably in temperatures between 0-40°C and tolerates up to 85% relative humidity, with an IP40 environmental rating suitable for most indoor industrial automation environments. It is CE, FCC, and RoHS certified for industrial use.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockElectric Powered

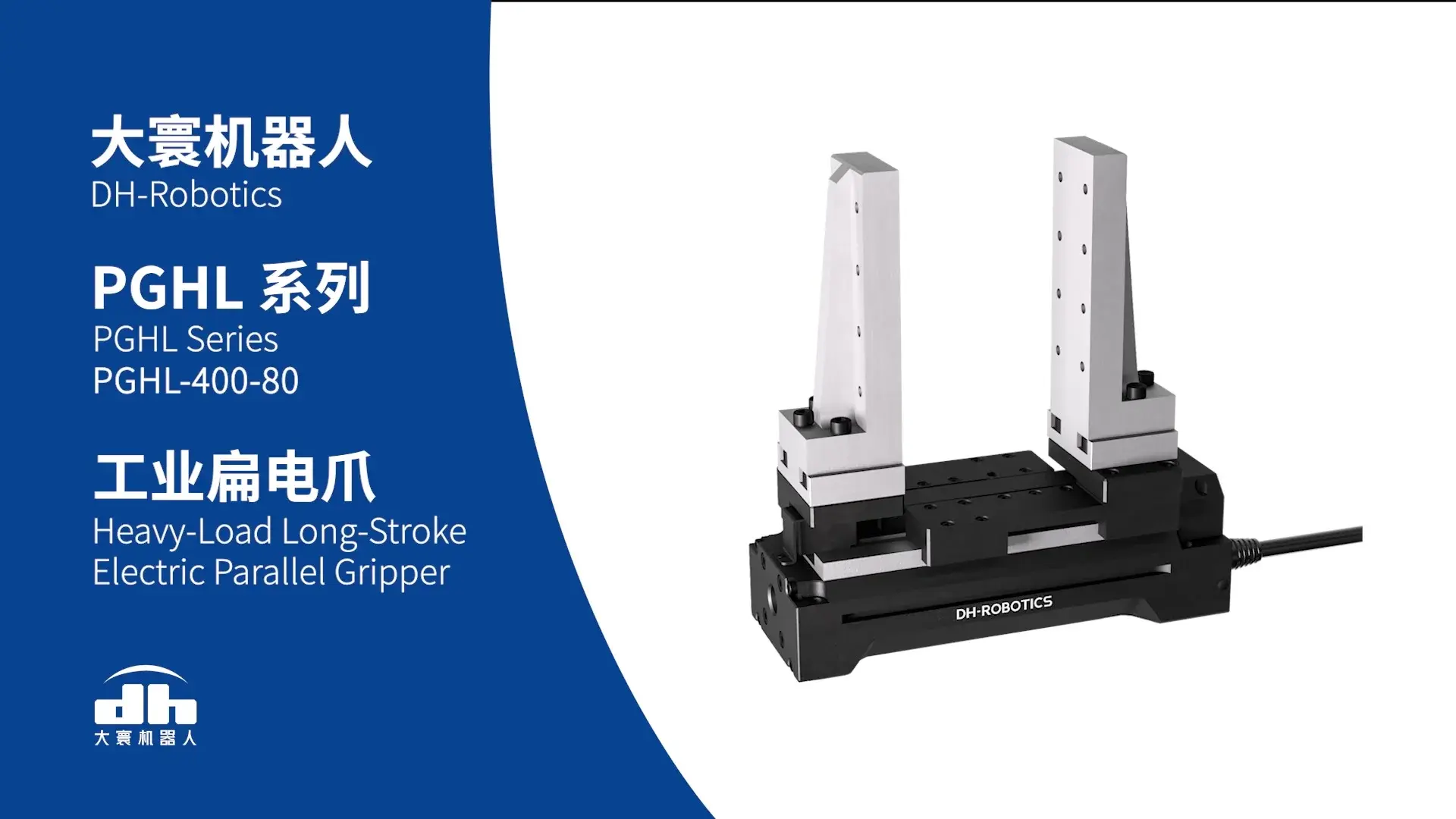

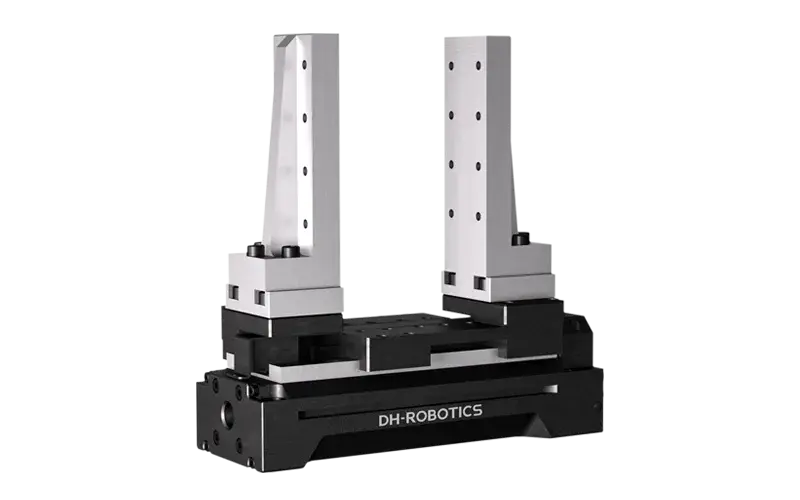

DH-Robotics PGHL-400-80 Electric Gripper, 400 N

Name: DH-Robotics PGHL-400-80 Electric Gripper, 400 N
Brand: DH-Robotics
SKU: 1017
Price: 2500 USD
Availability: InStock

DH Robotics

$2,500.00

Electric parallel gripper with 140-400 N adjustable force per jaw, 80 mm stroke, and ±0.02 mm repeatability. Handles workpieces up to 8 kg with 1.0/1.1 second open/close cycles. 24 V DC, Modbus RTU plus optional TCP/IP, CAN, PROFINET, EtherCAT. IP40, CE/FCC/RoHS certified.

Overview:

DH-Robotics PGHL-400-80 Electric Gripper is an industrial electric parallel gripper engineered for automated handling applications in robotics systems, suitable for industries such as automotive, semiconductor assembly, and food processing.

Key Features:

Gripping force: Adjustable from 140 to 400 N per jaw
Stroke: 80 mm parallel movement
Payload: Handles workpieces up to 8 kg
Position repeatability: ±0.02 mm
Weight: 2.2 kg; dimensions: 194 mm x 73 mm x 70 mm
Mounting: Direct mounting to compatible robot wrists via standard interface

Performance and Advantages:

PGHL-400-80 achieves a gripping force range starting at 140 N per jaw, which exceeds many compact electric parallel grippers in its payload category. The robust rack-and-pinion mechanism and planetary reducer provide consistent precision and reliability, making it suitable for high-force machine tending, palletising, and precise pick-and-place operations. Opening and closing cycles complete in 1.0 and 1.1 seconds, supporting rapid automation workflows.

Industrial Compatibility and Communication:

Control voltage: 24 V DC ±10%
Standard interface: Modbus RTU (RS485), digital I/O
Optional interfaces: TCP/IP, USB 2.0, CAN 2.0A, PROFINET, EtherCAT

The PGHL-400-80 electric gripper integrates easily with robot controllers from DH-Robotics and other OEMs, with flexible communication options for customization and system expansion.

Operating Conditions and Certifications:

Environmental rating: IP40
Temperature: 0-40°C
Humidity tolerance: Up to 85% relative humidity
Compliance: CE, FCC, RoHS certified

Application Examples:

Precision pick-and-place in electronics manufacturing
Robotic palletising for automotive and industrial logistics
Automated handling in food processing environments
Machine tending with repeatable positioning requirements

Comparative Information:

Compared to typical pneumatic grippers, the PGHL-400-80 electric parallel gripper offers programmable force control and improved repeatability. In the DH-Robotics PGHL series, this model provides the highest gripping force for handling heavier components, distinguished by its strong performance on 24 V DC control.

Quick Facts:

PGHL-400-80 gripping force range starts at 140 N per jaw
Handles workpieces up to 8 kg with ±0.02 mm repeatability
Supports multiple industrial protocols for easy integration

Weight2.2 kg

Gripping force (per jaw)140-400 N

Stroke Length: 80 mm
Recommended workpiece weight: 1.8 kg
Opening/Closing time: 1.0 s/1.1 s
Repeat accuracy (position): ± 0.02 mm
Driving Method: Planetary reducer + rack pinion
Rated voltage: 24 V DC ± 10%
Rated current: 1.0 A
Peak current: 3.0 A
IP class: IP 40
Recommended environment: 0~40°C
under 85% RH
Certification: CE
FCC
RoHS
Payload: 8 kg
Gripping Force: 140 to 400 N per jaw
Stroke: 80 mm
Repeatability: ±0.02 mm
Cycle Time: Open: 1.0 s, Close: 1.1 s
Communication: Digital I/O
TCP/IP
USB 2.0
CAN 2.0A
PROFINET
EtherCAT
Modbus RTU (RS485)
Dimensions: 194 mm x 73 mm x 70 mm
IP Rating: IP40
Operating temperature: 0 to 40°C
Operating humidity: Up to 85% relative humidity
Model: PGHL-400-80

Parallel electric gripper by DH-Robotics, built for industrial automation
Grips up to 400 N per jaw, adjustable from 140 N for precise force control
80 mm stroke enables parallel movement across compact part sizes
Holds 8 kg workpieces with ±0.02 mm repeatability, ideal for precision assembly
Opens in 1.0 seconds, closes in 1.1 seconds for rapid pick-and-place cycles
24 V DC powered, supports Modbus RTU plus optional TCP/IP, CAN 2.0A, PROFINET, EtherCAT
IP40 rated, 0-40°C operating range, CE and RoHS certified for industrial environments

: The PGHL-400-80 delivers adjustable gripping force from 140 N to 400 N per jaw, allowing precise force control for different workpiece types and materials. This range supports both delicate precision assembly and robust handling tasks up to 8 kg payloads.
: A gripper is an end effector that grasps, holds, and releases workpieces in automated systems. The PGHL-400-80 electric gripper enables rapid pick-and-place cycles and precision assembly by opening in 1.0 seconds and closing in 1.1 seconds while maintaining ±0.02 mm repeatability.
: The PGHL-400-80 mounts directly to compatible robot wrists via a standard interface with no special adapters required. It is 194 mm long, 73 mm wide, and weighs 2.2 kg, fitting compact robot arms in automotive, semiconductor, and food processing environments.
: The gripper includes Modbus RTU and digital I/O as standard, with optional support for TCP/IP, USB 2.0, CAN 2.0A, PROFINET, and EtherCAT for flexible integration with different robot controllers and industrial networks. It operates on 24 V DC ±10% power supply.
: The PGHL-400-80 operates reliably in temperatures between 0-40°C and tolerates up to 85% relative humidity, with an IP40 environmental rating suitable for most indoor industrial automation environments. It is CE, FCC, and RoHS certified for industrial use.

Electric gripper vs pneumatic grippers:

The PGHL-400-80 is an electric parallel gripper designed for precision and control where pneumatic alternatives offer only fixed force. Choose this gripper when you need programmable grip strength, fast cycle times, and repeatability in compact automation cells.

For delicate electronics or parts requiring variable grip pressure, adjustable force from 140 to 400 N per jaw prevents damage while maintaining secure hold.
On high-throughput pick-and-place lines, 1.0 second opening and 1.1 second closing cycles match or exceed pneumatic speed without air infrastructure.
In precision assembly with tight tolerances, ±0.02 mm repeatability ensures consistent part positioning across thousands of cycles.
For workpieces up to 8 kg in confined robot cells, the compact 2.2 kg gripper frees payload for additional tooling or sensors.
On systems requiring multiple communication protocols (Modbus, PROFINET, EtherCAT), integrated control eliminates external valve logic and reduces integration time.
