Parallel gripper with H-guide | CGPM series

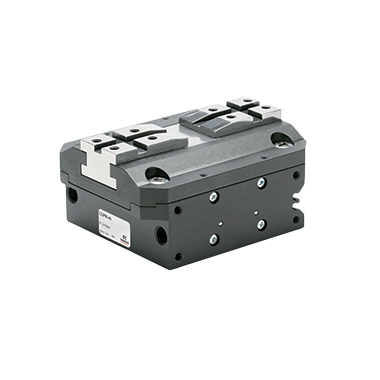

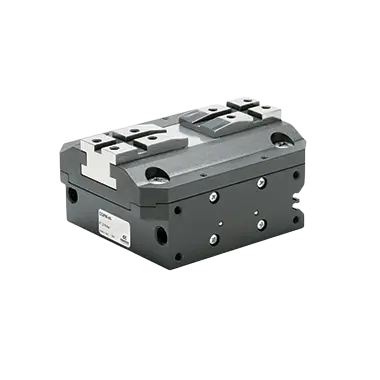

The Camozzi CGPM series is a self-centering pneumatic parallel gripper built with an H-guide configuration for automated handling tasks.

Model 15-CGPM-0025 delivers 906 N maximum gripping force with 0.02 mm repeatability, weighing 1.094 kg.

This gripper operates in ambient temperatures up to 60°C and is designed for compact installation where space constraints matter.

The H-guide design provides stable linear motion during grip cycles, making the CGPM series well-suited for pick and place operations in assembly environments.

The series is available in five sizes with standard or long stroke options to match varying part geometries and reach requirements.

Surface coatings and material selection provide resistance to contaminant ingress during operation.
