What is the Camozzi CGSP Parallel Gripper used for?

The Camozzi CGSP is used for pick and place operations, feeding systems, assembly of electronic components, and handling in cosmetics, medical device, and food packaging automation. It is designed for repetitive cycles requiring high repeatability with small components weighing under 154 N.

What is the gripping force of the Camozzi CGSP 154 N gripper?

The Camozzi CGSP Parallel Gripper delivers a maximum gripping force of 154 N, suitable for sensitive handling and precise control of small components.

How accurate is the Camozzi CGSP gripper?

The Camozzi CGSP repeats positioning to 0.02 mm, making it ideal for small component assembly where precision is critical.

Can this gripper work in dusty or contaminated environments?

Yes, the Camozzi CGSP has a sealed design that protects against contamination, making it suitable for dusty industrial environments.

What temperature can the Camozzi CGSP gripper handle?

The Camozzi CGSP operates reliably up to 60°C in automated production environments.

How heavy is the Camozzi CGSP gripper?

The Camozzi CGSP weighs 0.163 kg, providing a compact and lightweight frame suitable for tight robot installations.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockPrecise Handling

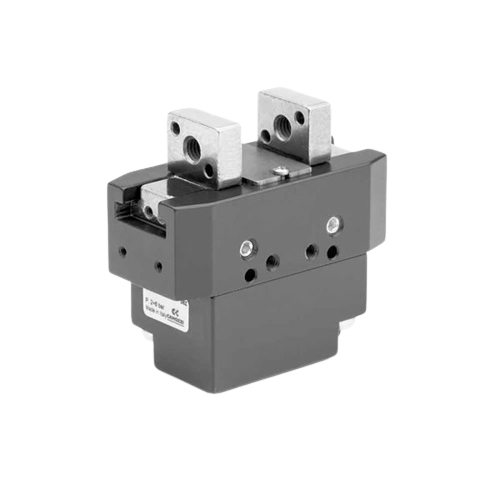

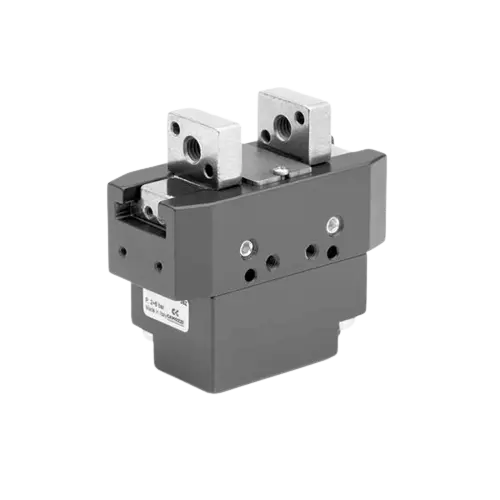

Camozzi CGSP Parallel Gripper, 154 N, 0.02 mm

Name: Camozzi CGSP Parallel Gripper, 154 N, 0.02 mm
Brand: Camozzi
SKU: 3277
Price: 519 USD
Availability: InStock

Camozzi Automation GmbH

$519.00

Camozzi CGSP pneumatic parallel gripper with 154 N gripping force and 0.02 mm repeatability for precise pick and place, assembly, and component handling in electronics, medical, and food packaging applications.

Overview:

Camozzi CGSP Parallel Gripper, a compact pneumatic parallel gripper designed for precise handling and self-centering of small components in automated processes and industrial environments.

Maximum gripping force: 154 N
Repeatability: 0.02 mm
Weight: 0.163 kg
Operating temperature: up to 60°C

Key Features:

Pneumatically actuated for fast, reliable operation
Self-centering mechanism automatically centers objects within gripper jaws
Compact, lightweight construction for tight installations
Materials and surface coating selected for extended service life
Protection against contamination for performance in dusty conditions

Applications:

Pick and place operations
Feeding systems and machine loading
Assembly of electronic components
Handling in cosmetics and medical device manufacturing
Food packaging automation

Suitable for components weighing under 154 N, ideal for repetitive cycles where high repeatability is required.

Series and Compatibility:

Part of the CGSP series, T-guide design family

FAQ:

What is the maximum gripping force? The CGSP Parallel Gripper delivers 154 N.
What temperature range does it support? The operating temperature is up to 60°C.

Weight0.163 kg

Max Gripping force154 N

Propulsion Method: Pneumatic
Max. ambient temperature: 60 ℃
Repeatability: 0.02 mm
Payload: 154 N
Operating temperature: up to 60°C
Model: CGSP

Grips with precision at 154 N in a compact, lightweight frame for sensitive handling
Durable coating and materials extend service life in demanding conditions
Sealed design protects against contamination, ideal for dusty environments
Repeats positioning to 0.02 mm, perfect for small component assembly
Self-centering jaws automatically align objects for consistent gripping
Pneumatic actuation delivers fast, reliable operation in repetitive cycles
Operates reliably up to 60°C in automated production environments

: The Camozzi CGSP is used for pick and place operations, feeding systems, assembly of electronic components, and handling in cosmetics, medical device, and food packaging automation. It is designed for repetitive cycles requiring high repeatability with small components weighing under 154 N.
: The Camozzi CGSP Parallel Gripper delivers a maximum gripping force of 154 N, suitable for sensitive handling and precise control of small components.
: The Camozzi CGSP repeats positioning to 0.02 mm, making it ideal for small component assembly where precision is critical.
: Yes, the Camozzi CGSP has a sealed design that protects against contamination, making it suitable for dusty industrial environments.
: The Camozzi CGSP operates reliably up to 60°C in automated production environments.
: The Camozzi CGSP weighs 0.163 kg, providing a compact and lightweight frame suitable for tight robot installations.

Pneumatic parallel gripper versus electric gripper:

The Camozzi CGSP is a pneumatic parallel gripper built for fast, repetitive handling of small components where precision and simplicity matter more than independent jaw control. Choose it over electric grippers when cycle speed and low maintenance are priorities, or when your automation already runs compressed air.

For small delicate parts under 5 kg on tight timescales, pneumatic actuation cycles faster than electric motors and requires no servo tuning.
In dusty or wet environments like food and cosmetics lines, the sealed design and durable coating resist contamination better than exposed electric drives.
For high-volume pick and place with consistent part geometry, the self-centering jaws guarantee 0.02 mm repeatability without manual jaw adjustment between cycles.
In confined robot cells or machine pockets, the lightweight 0.163 kg frame and compact body fit where heavier electric grippers cannot.
When reliability in continuous production up to 60°C matters more than programmable force control, pneumatic simplicity eliminates electronics failure modes.
