In Stock

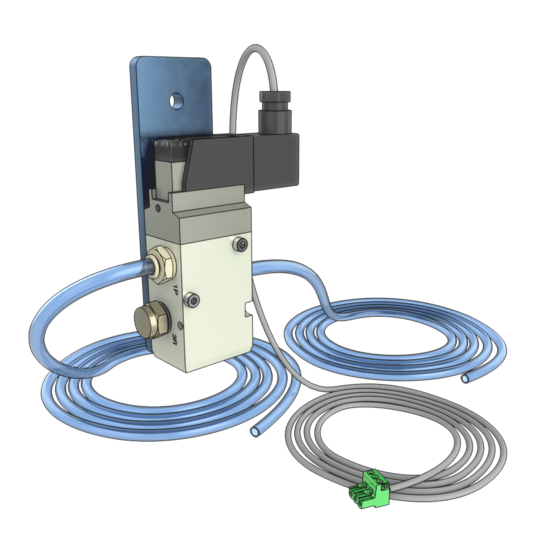

On/Off Pneumatic Valve, Normally Closed v2
Vention
A 3-port, 2-position normally closed pneumatic valve with internal pilot design, supplied with 8mm OD tubing for integration into automated systems.
This normally closed pneumatic valve features a 3-port, 2-position configuration with an internal pilot mechanism for on/off control of compressed air circuits.
The valve shifts between two discrete positions to direct airflow in automated pneumatic systems.
Designed for control integration, this unit operates with the IO Module v2 for digital switching applications.
Each valve ships with 4 meters of pneumatic tubing measuring 8mm outer diameter and 5mm inner diameter, ready for connection to standard pneumatic components.
The valve measures 157 x 115 x 38 mm and weighs 2.72 kg.
Normally closed operation means the valve blocks flow in its de-energized state, providing fail-safe behavior in applications where air delivery should stop during power loss or signal interruption.
